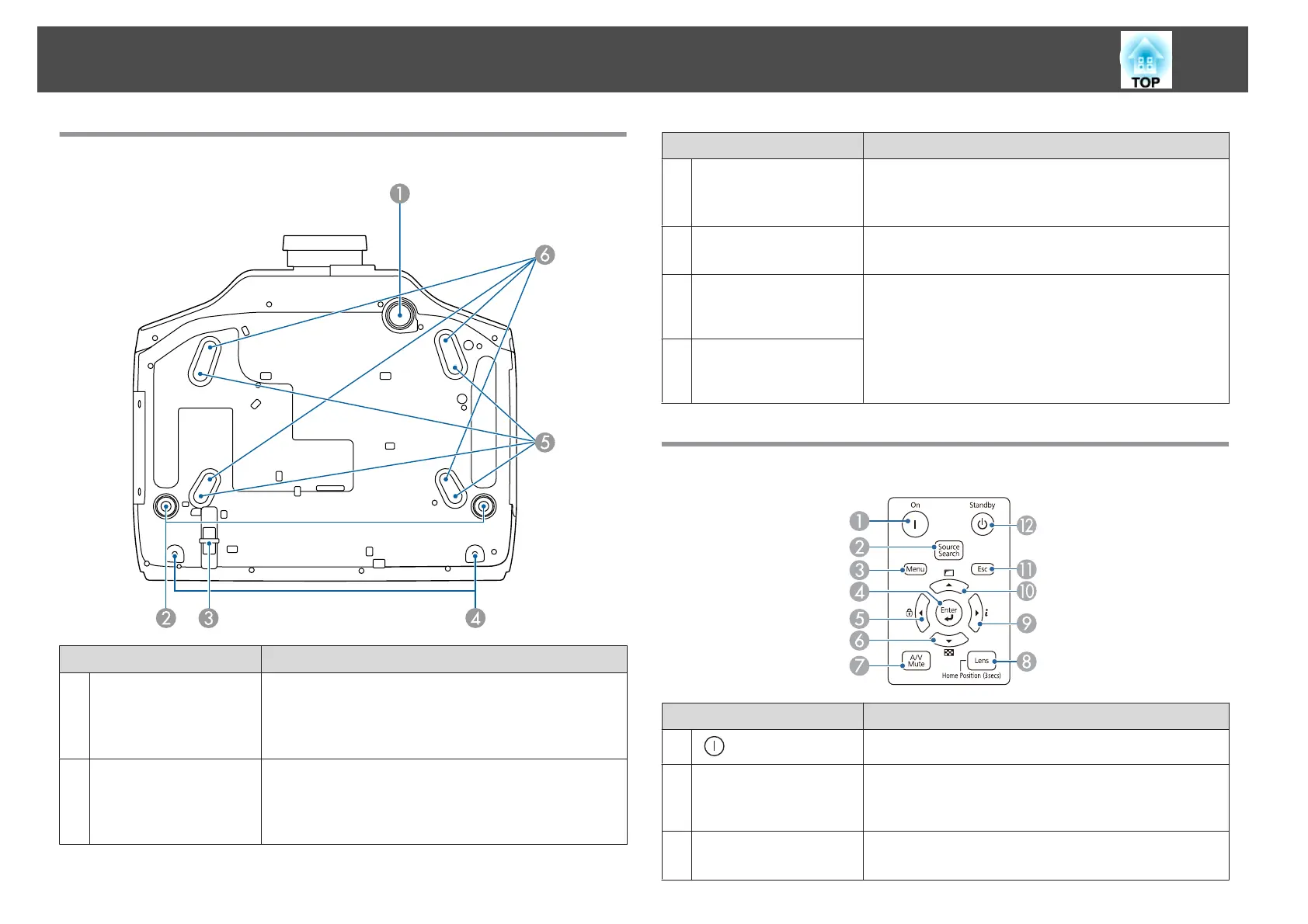

Base
Name Function
A
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Height of the Projected Image (for
Normal Installment)" p.40
B
Rear feet
When setup on a surface such as a desk, turn to extend and
retract to adjust the horizontal tilt.
s "Adjusting the Horizontal Tilt (for Normal
Installment)" p.41
Name Function
C
Security cable
installation point
Pass a commercially available wire lock through here and
lock it in place.
s "Installing the wire lock" p.131
D
Screw holes to fix the
cable cover
Screw holes to fix the cable cover in place.
s "Attaching the Cable Cover" p.53
E
Ceiling mount fixing
points (for ELPMB47/
ELPMB48, four points)
Attach the optional Ceiling Mount here when suspending
the projector from a ceiling.
s "Installing the Projector" p.26
s "Optional Accessories" p.217
F
Ceiling mount fixing
points (for ELPMB22,
four points)
Control Panel
Name Function
A
[ ] button
Turns the projector on.
B
[Source Search]
button
Changes to the next input source that is sending an image.
s "Automatically Detecting Input Signals and Changing
the Projected Image (Source Search)" p.59
C
[Menu] button
Displays and closes the Configuration menu.
s "Using the Configuration Menu" p.134
Part Names and Functions
17
