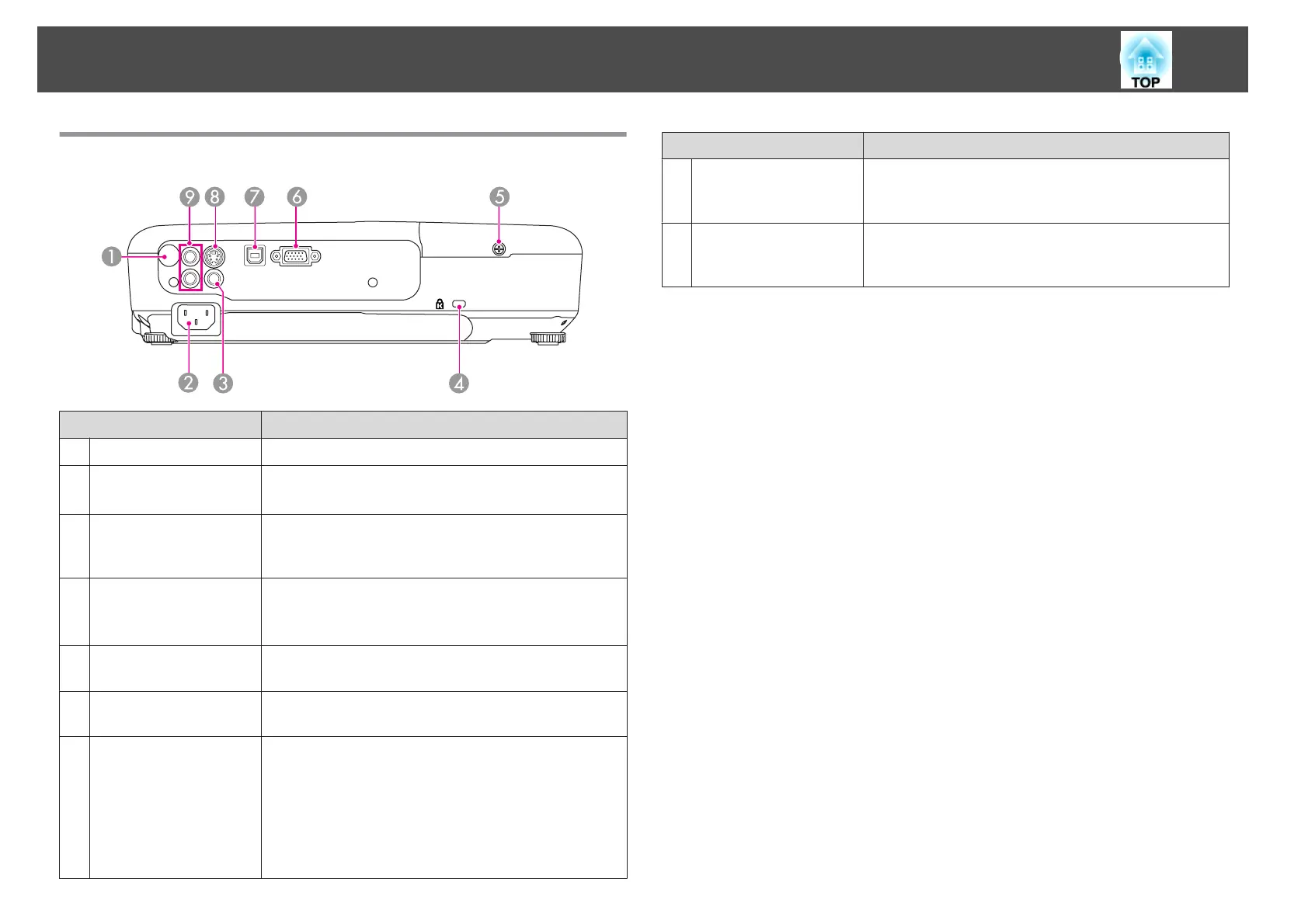

Epson EB-S02 User Manual

Rear
Name Function
A
Remote receiver
Receives signals from the remote control.
B
Power inlet
Connects the power cable to the projector.
s "From Installation to Projection" p.26
C
Video port
(EB-X14G/EB-W02/EB-
X02/EB-S02 only)
Inputs composite video signals from video sources.
D
Security slot
The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.52
E
Lamp Cover Fixing
Screw
Screw to fix the lamp cover in place.
F
Computer port
Inputs image signals from a computer and component
video signals from other video sources.
G
USB(TypeB) port
• Connects the projector to a computer via a USB cable,
and the image on the computer is projected.
s
"Projecting with USB Display" p.28
• Connects the projector to a computer via a USB cable to
use the Wireless Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.46
Name Function
H
S-Video port
(EB-X14G/EB-W02/EB-
X02/EB-S02 only)
For S-video signals from video sources.
I
Audio-L/R port
(EB-X14G/EB-W02/EB-
X02/EB-S02 only)
Inputs audio from equipment connected to the Computer
port, the S-Video port, or the Video port.
Part Names and Functions
11

Epson EB-S02 Specifications

General

Matrix size	0.55 \
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 350 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	± 30 °
Projector brightness (economic mode)	2080 ANSI lumens
Focus	Manual
Offset	8:1 %
Throw ratio	1.45 - 1.96:1
Digital zoom	1.35 x
Focal length range	- mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Ethernet LAN (RJ-45) ports	0
Full HD	Yes
Supported video modes	1080i
Supported graphics resolutions	1920 x 1080 (HD 1080), 800 x 600 (SVGA)
RMS rated power	1 W
Placement	Desktop
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	29 dB
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3320 g
