Epson EB-S02 User Manual

From Installation to Projection

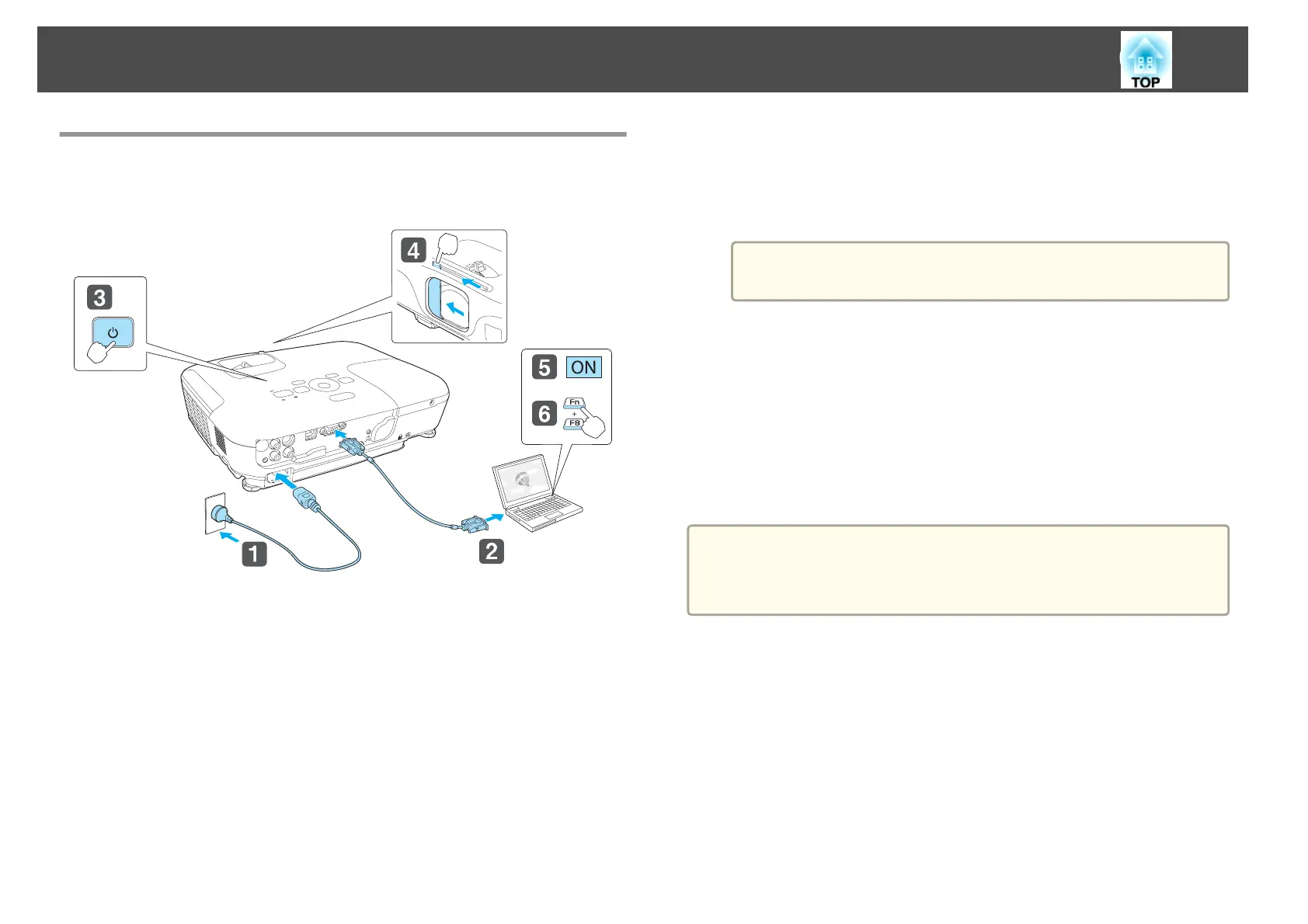

This section explains the procedure for connecting the projector to a
computer with the computer cable and projecting images.
a
Connect the projector to an electrical outlet with the power cable.
b
Connect the projector to the computer with the computer cable.
c
Turn on the projector.
d
Slide open the lens cover.
e
Turn on your computer.
f
Change the computer's screen output.
When using a laptop computer, you need to change the screen
output from the computer.
Hold down the Fn key (function key), and press the b key.
a
The method for changing differs depending on the computer
being used. See the documentation supplied with the computer.
If the image is not projected, you can change the projected image using one
of the following methods.
• Press the [Source Search] button on the control panel or the remote
control.
s "Automatically Detect Input Signals and Change the Projected Image
(Source Search)" p.27
• Press the button for the target port on the remote control.
s
"Switching to the Target Image by Remote Control" p.28
a
After projecting the image, adjust the image if necessary.
s "Correcting Keystone Distortion" p.32
s "Correcting the Focus" p.37
Projecting Images
26

Epson EB-S02 Specifications

General

Matrix size	0.55 \
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 350 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	± 30 °
Projector brightness (economic mode)	2080 ANSI lumens
Focus	Manual
Offset	8:1 %
Throw ratio	1.45 - 1.96:1
Digital zoom	1.35 x
Focal length range	- mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Ethernet LAN (RJ-45) ports	0
Full HD	Yes
Supported video modes	1080i
Supported graphics resolutions	1920 x 1080 (HD 1080), 800 x 600 (SVGA)
RMS rated power	1 W
Placement	Desktop
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	29 dB
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3320 g
