Projector Parts and Functions
18
Name Function
K
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
L
Control panel Operates the projector.
M
Zoom ring Adjusts the image size.
N
Focus ring Adjusts the image focus.
The shape may vary depending on the model of your
projector.
O
Lamp cover Open to access the projector's lamp.
gg Related Links
"Projector Indicator Status" p.169
"List of Functions" p.10
"Resizing the Image with the Zoom Ring" p.54
"Focusing the Image Using the Focus Ring" p.55
"Correcting the Image Shape with the Horizontal Keystone Slider" p.50

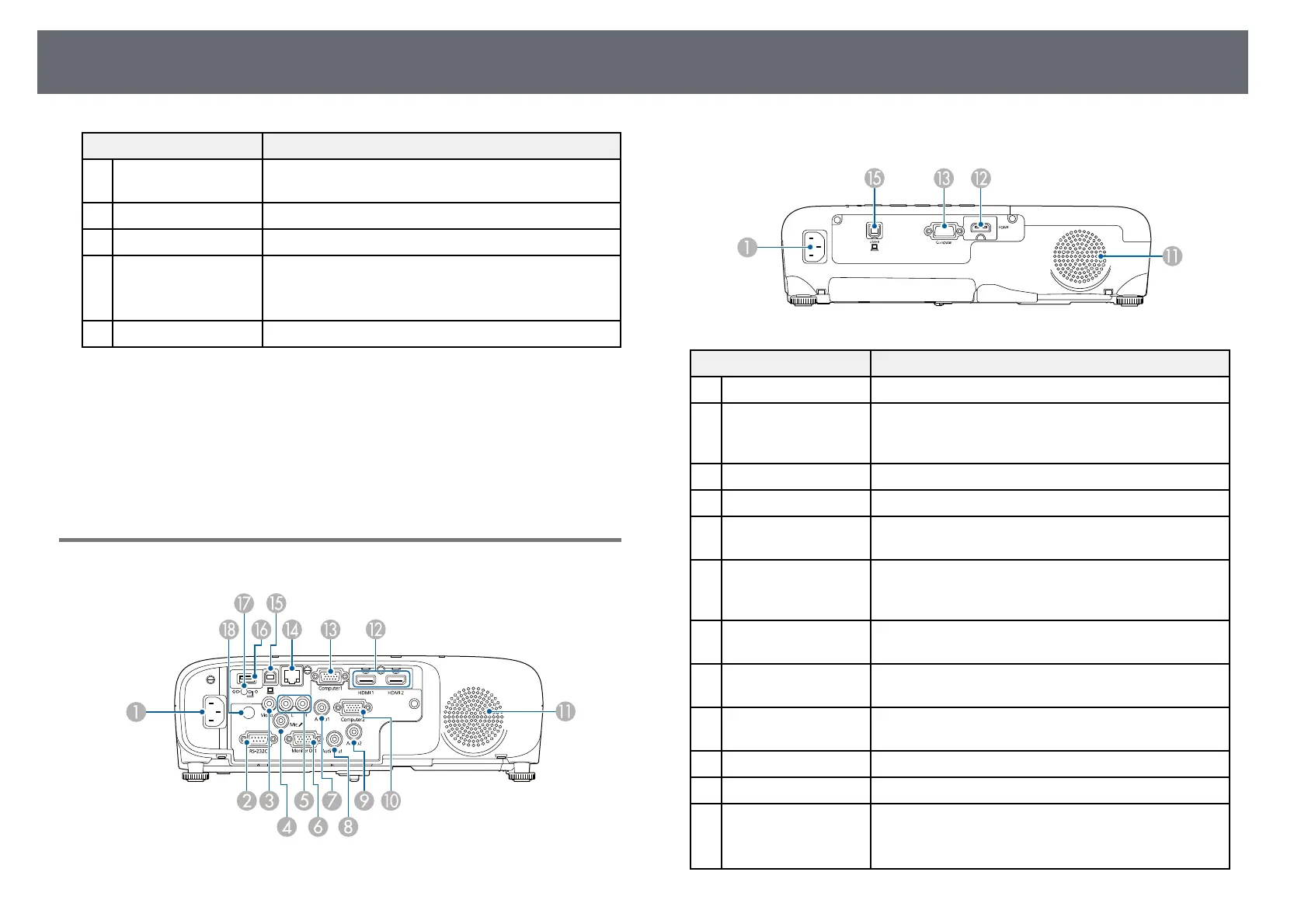

Projector Parts - Rear
EBE01/VS260
Name Function
A
Power inlet Connects the power cord to the projector.
B
RS-232C port Connects an RS-232C cable to control the projector
from a computer. (You do not need to use this port
normally.)
C
Video port Inputs composite video signals from video sources.
D
Mic port Inputs audio from the microphone.
E
L-Audio-R ports Inputs audio from equipment connected to the Video
port.
F
Monitor Out port Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports.
G
Audio 1 port Inputs audio from equipment connected to the
Computer1 port.
H
Audio Out port Outputs audio from the current input source or Mic
port to an external speaker.
I
Audio 2 port Inputs audio from equipment connected to the
Computer2 port.
J
Computer2 port Inputs image signals from a computer.
K
Speaker Outputs audio.
L
HDMI1, HDMI2
ports
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers.
This projector is compatible with HDCP.
