Epson EB-X49 - External Dimensions

To Next Page

To Previous Page

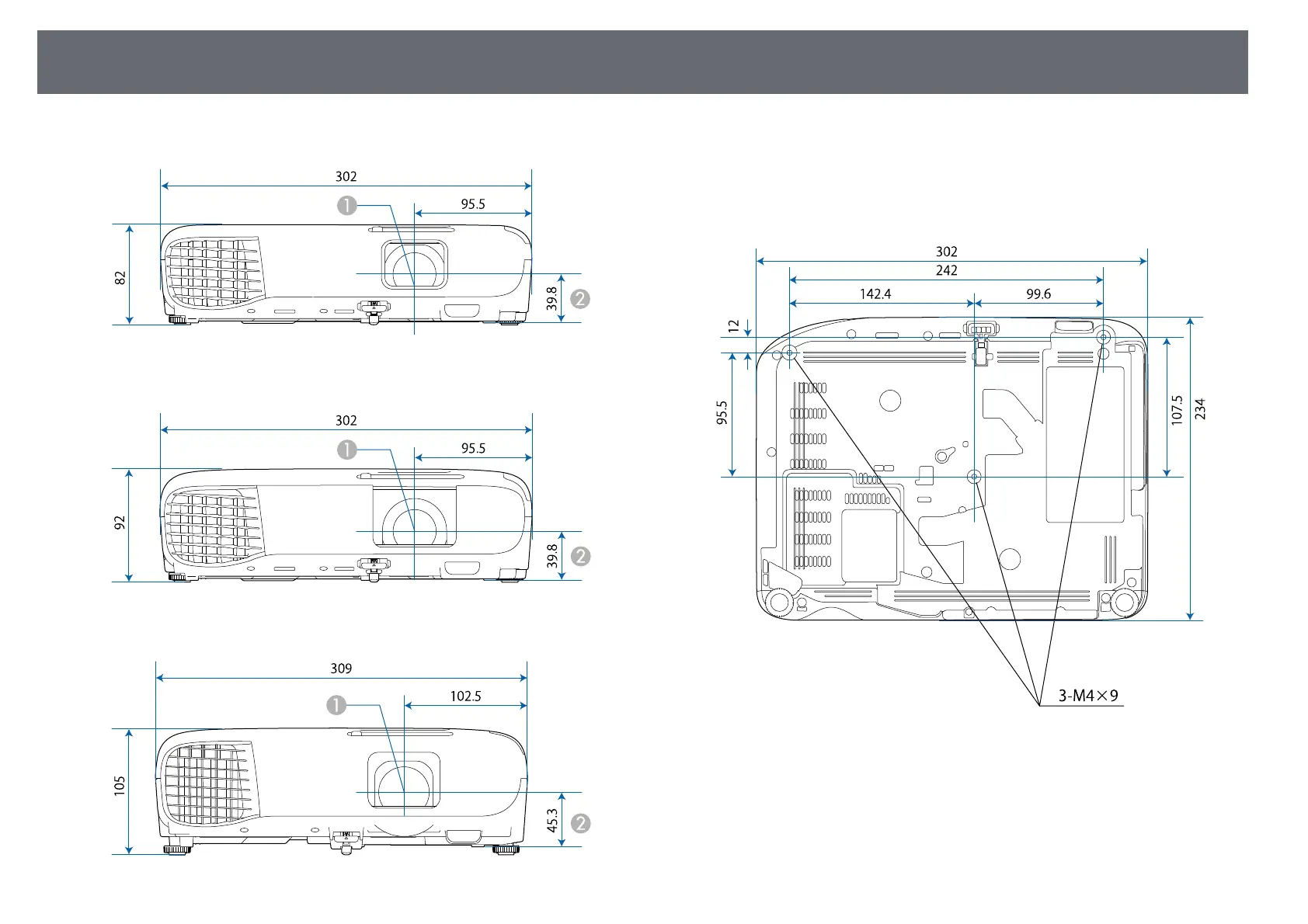

External Dimensions

199

EB‑‑W51/EB‑‑X51/EB‑‑E10/EB‑‑W06/EB‑‑X06/EB‑‑E01/EB‑‑X500/VS260

EB‑‑118/EB‑‑W49/EB‑‑X49/EB‑‑E20/EB‑‑W52/EB‑‑FH06

EB‑‑992F/EB‑‑982W/EB‑‑972/EB‑‑FH52

Center of lens

Distance from center of lens to suspension bracket fixing point

EB‑‑W51/EB‑‑X51/EB‑‑E10/EB‑‑W06/EB‑‑X06/EB‑‑E01/EB‑‑X500/VS260
