Projector Parts and Functions
12
gg Related Links
• "Air Filter and Vent Maintenance" p.90
• "Installing the Safety Wire" p.21

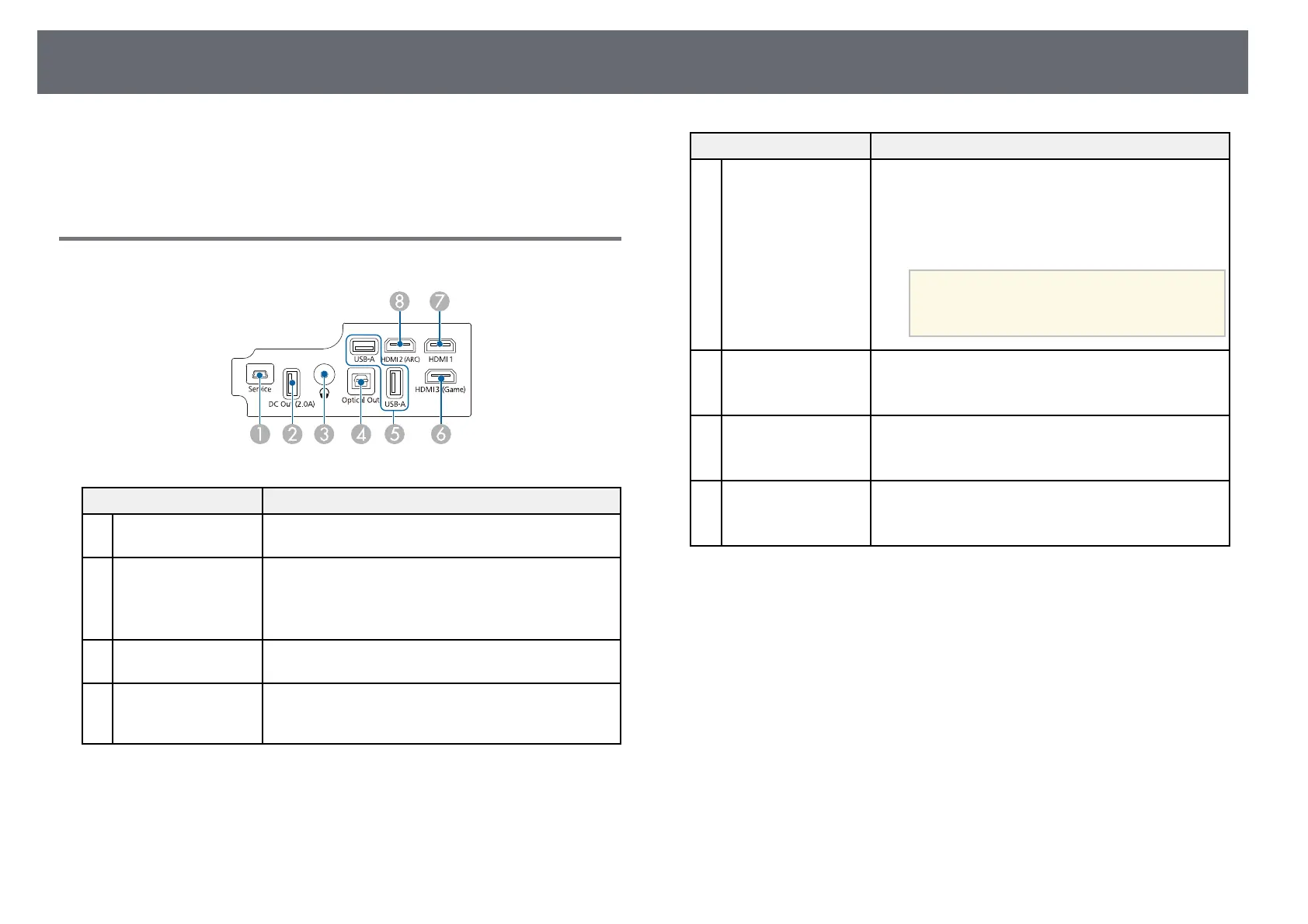

Projector Parts - Interface Ports
Name Function
A
Service port This port is used by service technicians and should not
normally be used.
B
DC Out (2.0A) port Provides a connection for an optional or commercially
available streaming media player allowing you to power
it.
USB data transfer is not available.
C
Audio Out port Outputs audio from the current input source to
headphones.
D
Optical Out port Outputs audio from the current input source to an
external audio device by connecting an optical digital
audio cable.
Name Function
E
USB-A port Connects a commercially available USB device such as
a webcam, microphone, external HDD, USB memory,
and receivers for microphones or game controllers.
Connects a commercially available RJ45 adapter to
enable wired LAN connections.
a
This port is not guaranteed to
operate for all devices that support
USB.
F
HDMI3 (Game) port Connects a gaming device. Suitable for enjoying games
that require fast response times.
Compatible with HDCP 2.3.
G
HDMI1 port Inputs video signals from HDMI compatible video
equipment and computers.
Compatible with HDCP 2.3.
H
HDMI2 (ARC) port Inputs video signals from HDMI compatible video
equipment and computers.
Compatible with HDCP 2.3 and HDMI ARC.
gg Related Links
• "Connecting to Video Sources" p.24
• "Connecting to External USB Devices" p.24
• "Connecting to External Audio Devices" p.25
• "Connecting to a Streaming Media Player" p.25
• "Connecting to an ARC Compatible AV System" p.26
• "Connecting to a Gaming Device" p.27
• "Connecting Headphones" p.28
