Projector Parts and Functions
14
Name Function
K
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
L
Control panel Operates the projector.
M
Zoom ring Adjusts the image size.
N
Focus ring Adjusts the image focus.
O
Lamp cover Open to access the projector's lamp.
gg Related Links
• "Projector Indicator Status" p.150
• "List of Functions" p.11
• "Resizing the Image with the Zoom Ring" p.48
• "Focusing the Image Using the Focus Ring" p.49
• "Correcting the Image Shape with the Horizontal Keystone Slider" p.44

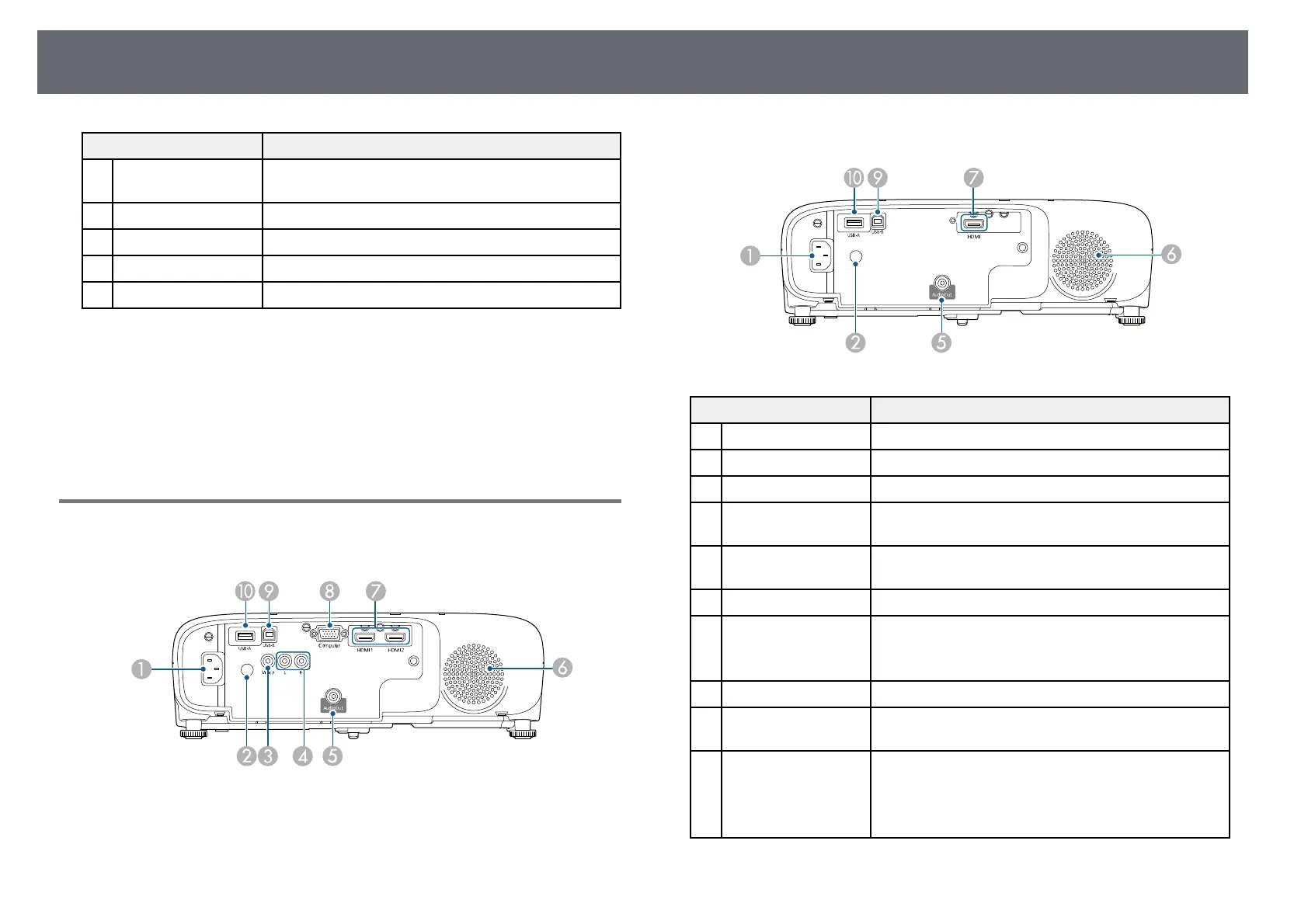

Projector Parts - Rear
EH‑‑TW750/EH‑‑TW710
EH‑‑TW740
Name Function
A
Power inlet Connects the power cord to the projector.
B
Remote receiver Receives signals from the remote control.
C
Video port Inputs composite video signals from video sources.
D
L-Audio-R ports Inputs audio from equipment connected to the
Computer or Video port.
E
Audio Out port Outputs audio from the current input source to an
external speaker.
F
Speaker Outputs audio.
G
HDMI1, HDMI2
ports
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers.
This projector is compatible with HDCP.
H
Computer port Inputs image signals from a computer.
I
USB-B port Connects a USB cable to the computer to project
computer images.
J
USB-A port Connects a USB memory device or a digital camera
and projects movies or images using PC Free.
Connects the optional document camera.
Connects the wireless LAN module.
To Next Page
