Projector Connections
25
a
• If the port on the device you connect has an unusual shape, use the
cable supplied with the device or an optional cable to connect to the
projector.
• The cable differs depending on the output signal from the connected
video devices.
• Some video devices are capable of outputting different types of
signals. See your video device manual to confirm what type of signals
can be output.
gg Related Links
• "Connecting to an HDMI Video Source" p.25
• "Connecting to a Composite Video Source" p.25

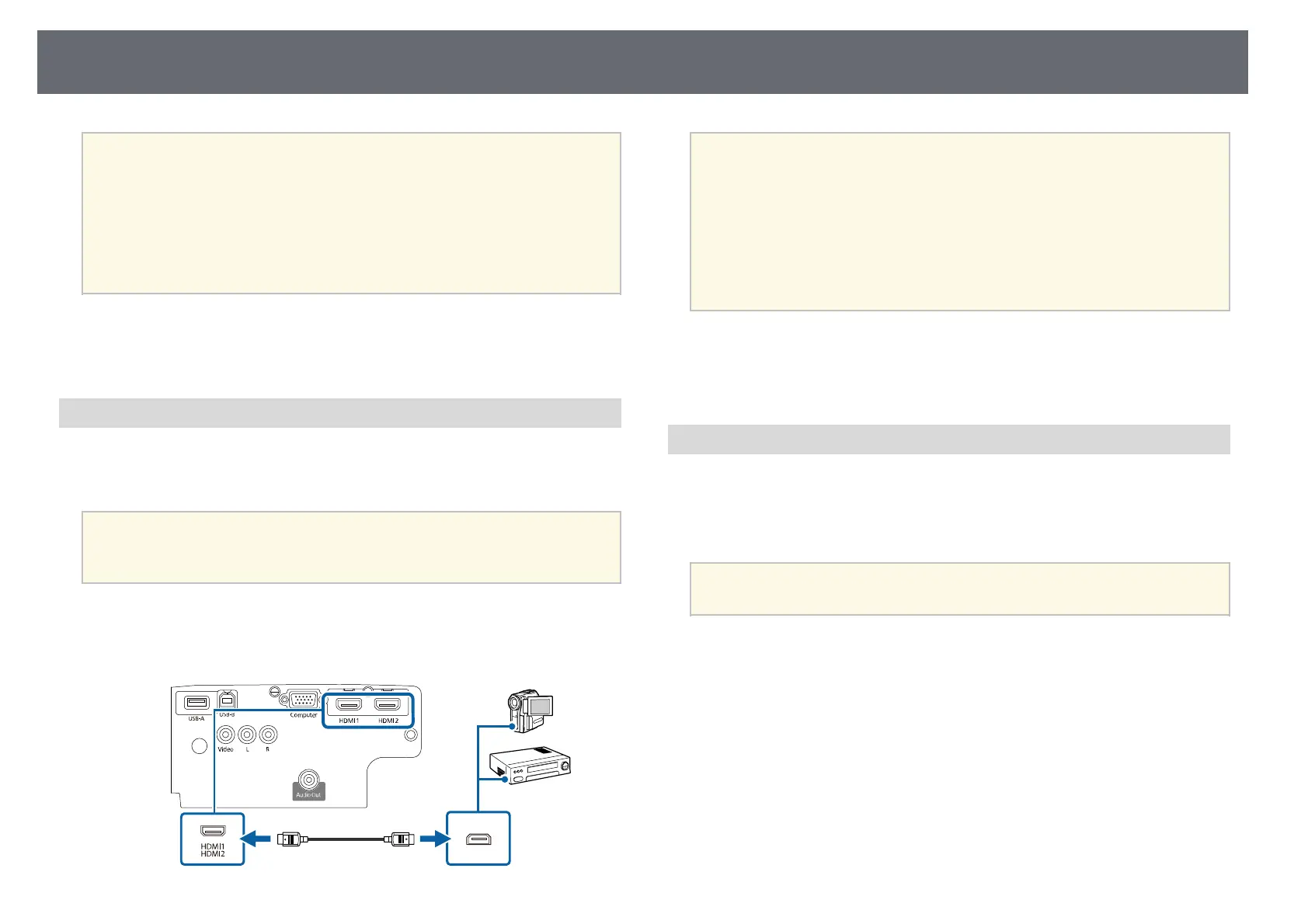

Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector
using an HDMI cable and send the image source's audio with the projected
image.
Attention
Do not turn on the video source before connecting it to the projector. Doing so
could damage the projector.
a
Connect the HDMI cable to your video source's HDMI output port.
b
Connect the other end to the projector's HDMI port.
a
If you have problems hearing audio through the HDMI connection,
connect one end of a commercially available RCA audio cable to the
projector's L-Audio-R port and the other end to your video source's
audio out port. Select the audio input port you connected to in the
projector's Extended menu.
s Extended > A/V Settings > Audio Settings > HDMI1 Audio
Output
s Extended > A/V Settings > Audio Settings > HDMI2 Audio
Output
gg Related Links
• "Projector Setup Settings - Extended Menu" p.117
• "List of Functions" p.11
Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the
projector using a RCA-style video or A/V cable.
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
a
Make sure the audio cable is labeled "No resistance".
a
Connect the cable with the yellow connector to your video source's
yellow video output port.

Epson EH-TW740 Specifications

General

Matrix size	0.61 \
Matrix type	MLA
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	1.21 - 1.63 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 386 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2200 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Focus	Manual
Throw ratio	1.21 - 1.63:1
Zoom capability	Yes
Fixed focal length	16.7 mm
3D	No
Video processing	10 bit
Video color modes	Cinema, Dynamic, Game, Bright cinema
Supported video modes	1080p
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
RMS rated power	2 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Storage temperature (T-T)	10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Bundled software	EasyMP Multi PC Projection
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	72 pc(s)
Harmonized System (HS) code	85286200
USB display function	2 in 1: Image / Mouse

Weight and Dimensions

Depth	252 mm
Width	302 mm
Height	92 mm
Weight	2800 g
Package depth	375 mm
Package weight	3805 g
