EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 73 Revision A
3.3.6.1 RCR Board
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the screw ( ), and remove the RCR Board.
8. Remove the RC Rear Cable from the RCR Board.

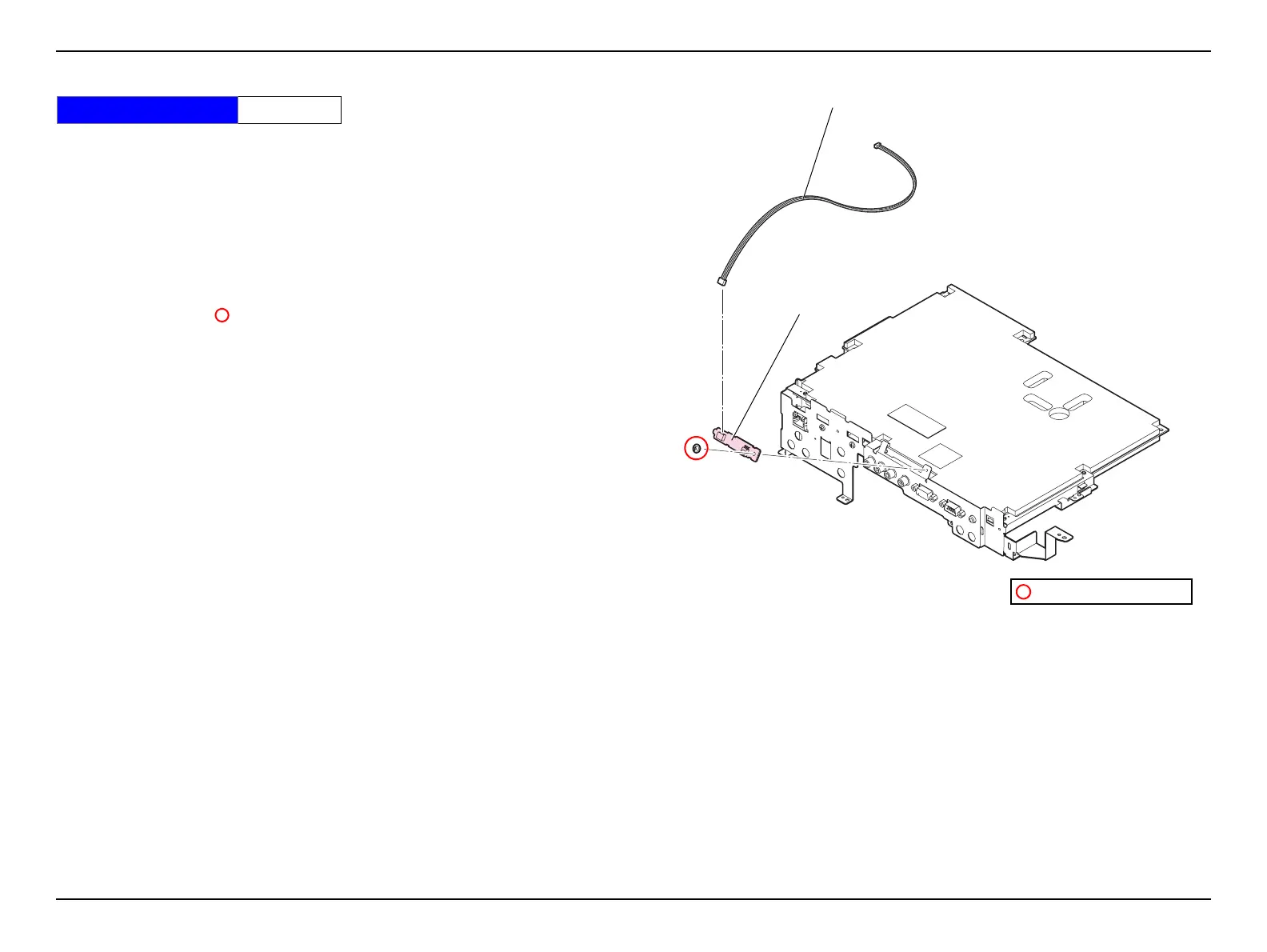

Figure 3-13.
Standard Operation Time 13 Min.
RCR Board
RC Rear Cable
C.C.SCREW,3X4,F/ZN-3C
