Introduction
11
Buttons/Indicators Function
j
Changes to the image from each input port. s p.24
k
Turns the projector power on or off.s p.23
Lit when the projector is on.
s p.69

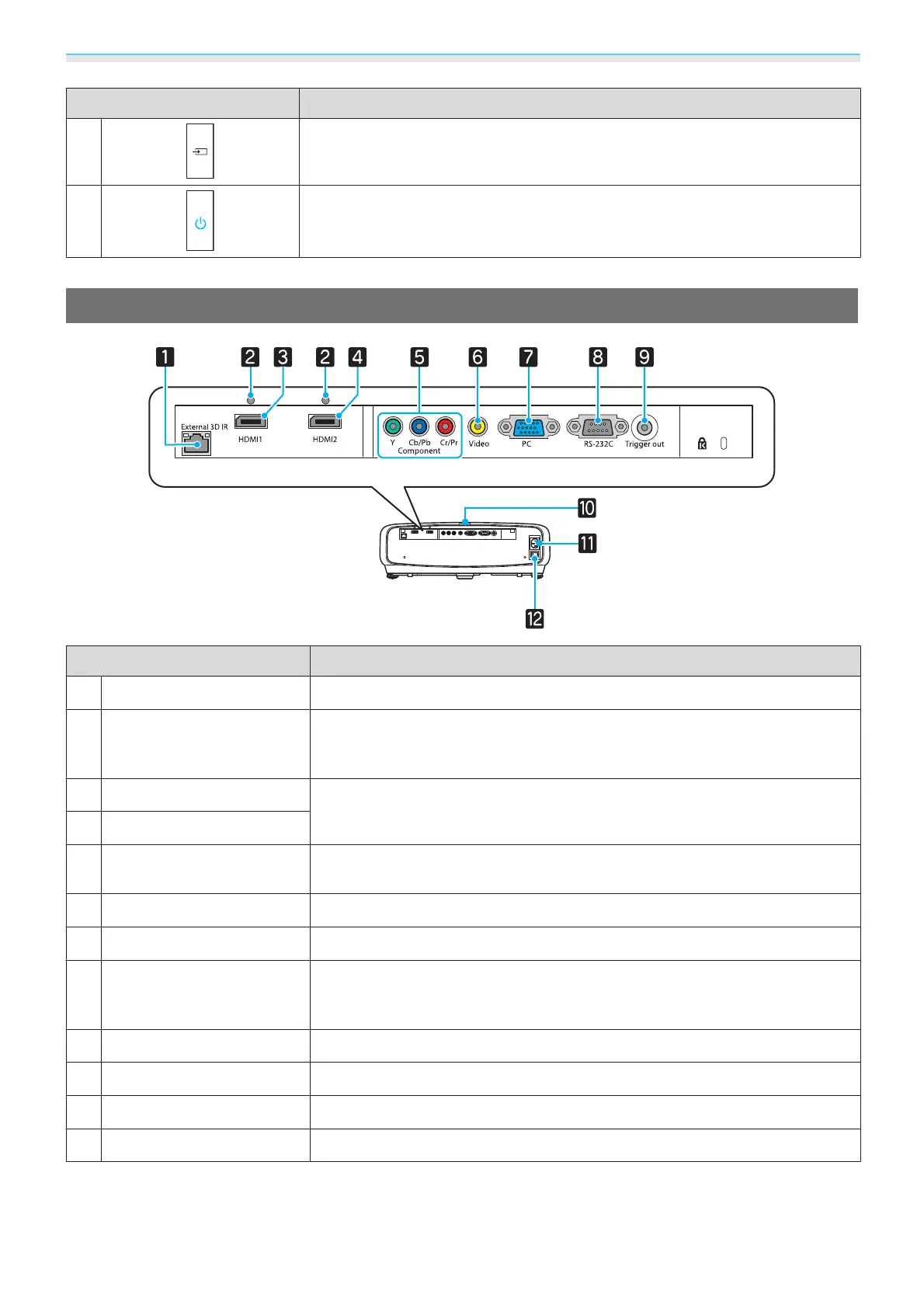

Rear
Name Function
a
External 3D IR port
Connects the optional External 3D IR emitter. s p.45
b
Cable holder
Thick HDMI cables with a large outer diameter and so on, may disconnect
easily due to the weight of the cable. To prevent the cable from disconnecting,
fix it in place using the HDMI cable clamp supplied.
s p.19
c
HDMI1 port
Connects HDMI compatible video equipment and computers. s p.18
d
HDMI2 port
e
Component port
Connects to the component (YCbCr or YPbPr) output port on video equip-
ment.
s p.18
f
Video port
Connects to the composite video output port on video equipment. s p.18
g
PC port
Connects to the RGB output port on a computer. s p.19
h
RS-232C port
When controlling the projector, connect the projector to a computer with an
RS-232C cable. This port is for control use and should not normally be used.
s p.88
i
Trigger out port
Connects with external devices such as electric screens. s p.20
j
Remote receiver
Receives signals from the remote control. s p.22
k
Power inlet
Connects the power cable. s p.23
l
Main power switch
Turns the projector power on or off.
