Epson EH-TW9000 Service Manual

EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 100 Revision A

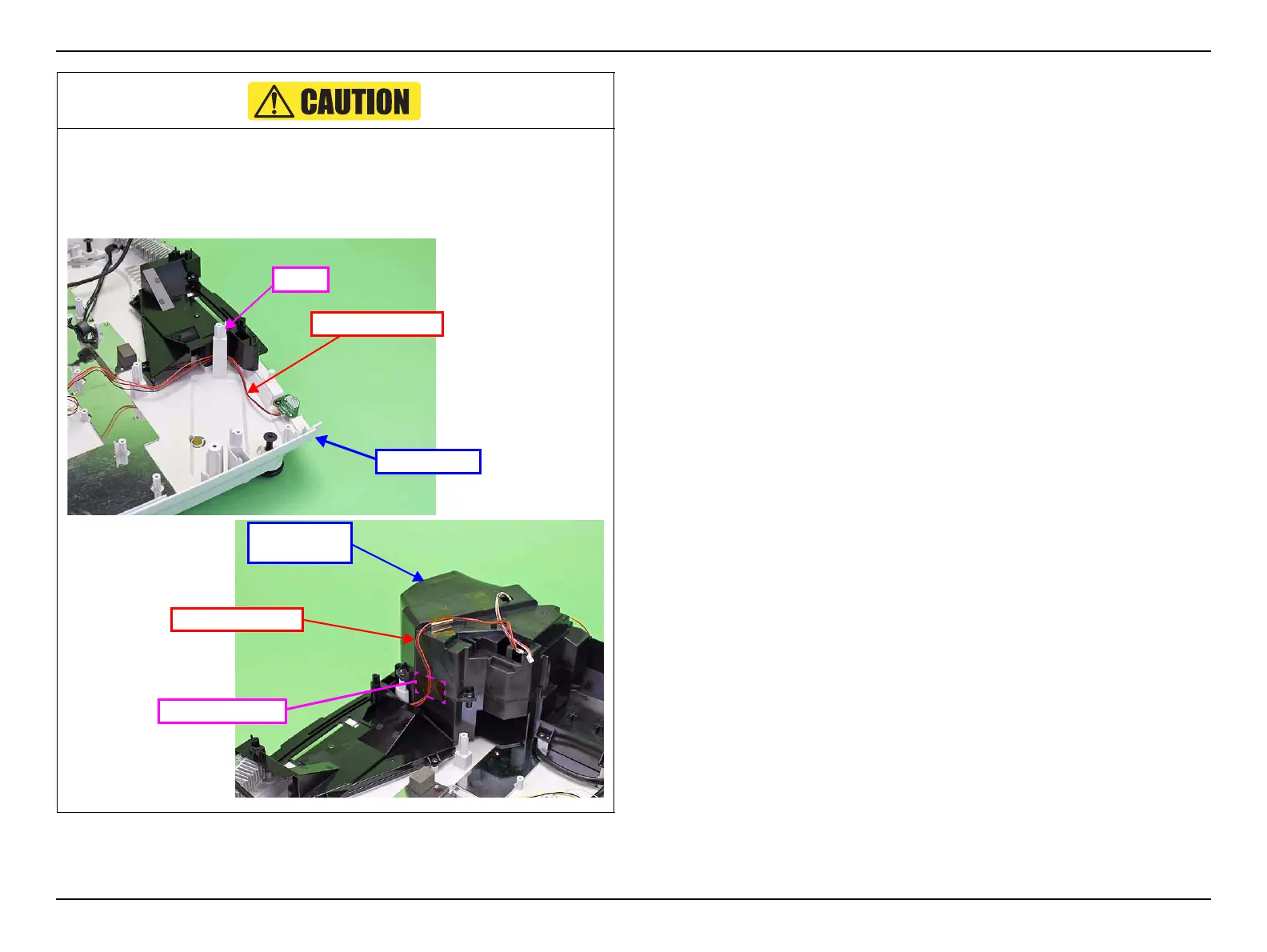

Route the RC Front Cable as shown in the figure below.
1. Route the cable outside the boss on the Lower Case.
2. After installing the EX Duct (assembly), secure the RC Front Cable on the EX
Duct (assembly) at the point shown in the figure with polyimide tape.
Lower Case
RC Front Cable
EX Duct
(assembly)
RC Front Cable
Polyimide tape
Dowel
