EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 74 Revision A
3.3.6.2 EIF Board
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the two screws ( ), and remove the EIF Board.
8. Remove the EIF Cable from the EIF Board.
9. Remove the IF Shade Sheet A from the MA Board (assembly).

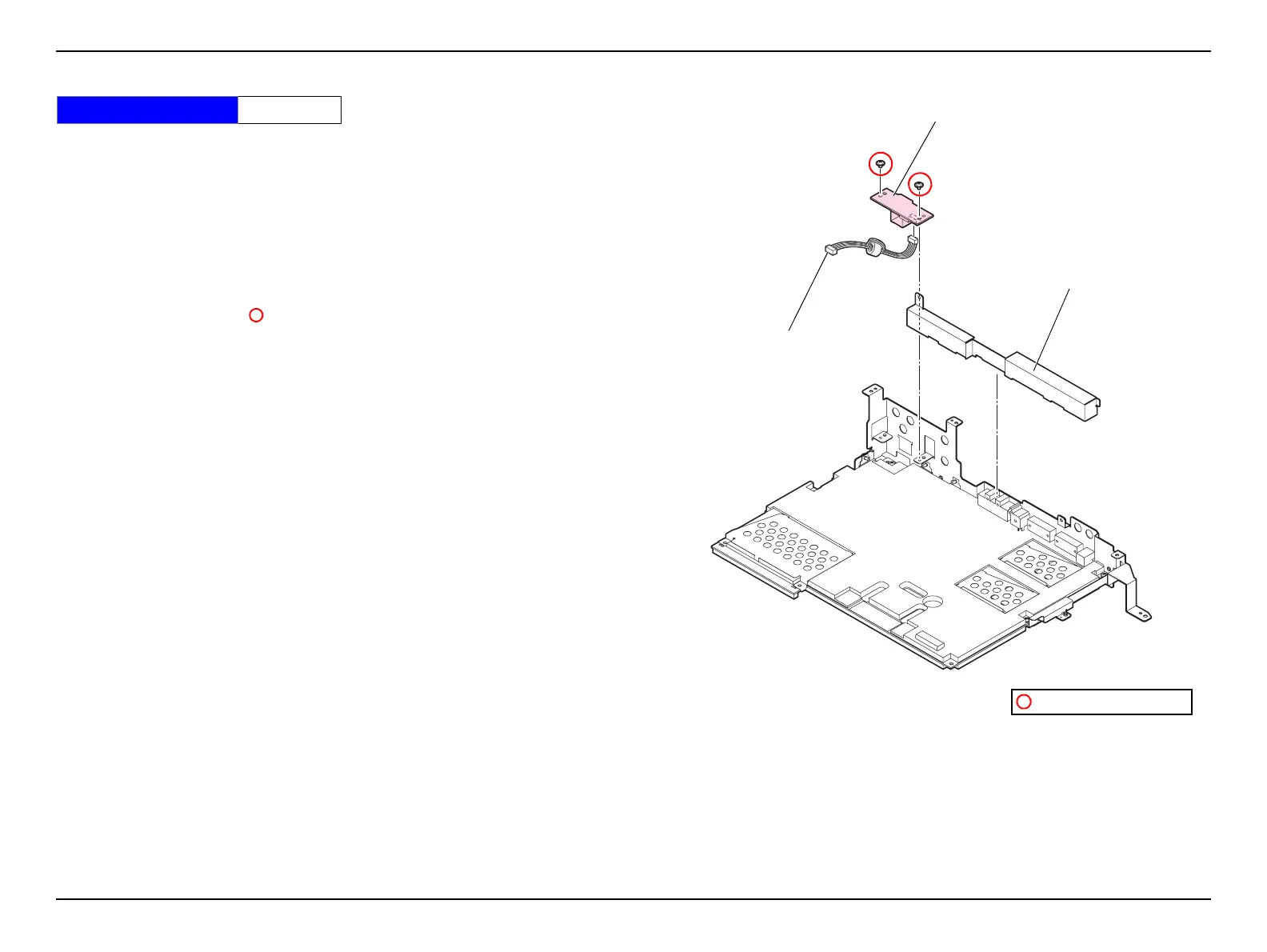

Figure 3-14.
Standard Operation Time 14 Min.
EIF Board
EIF Cable
IF Shade Sheet A
C.C.SCREW,3X4,F/ZN-3C
