EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 69 Revision A
Checking Caution Labels

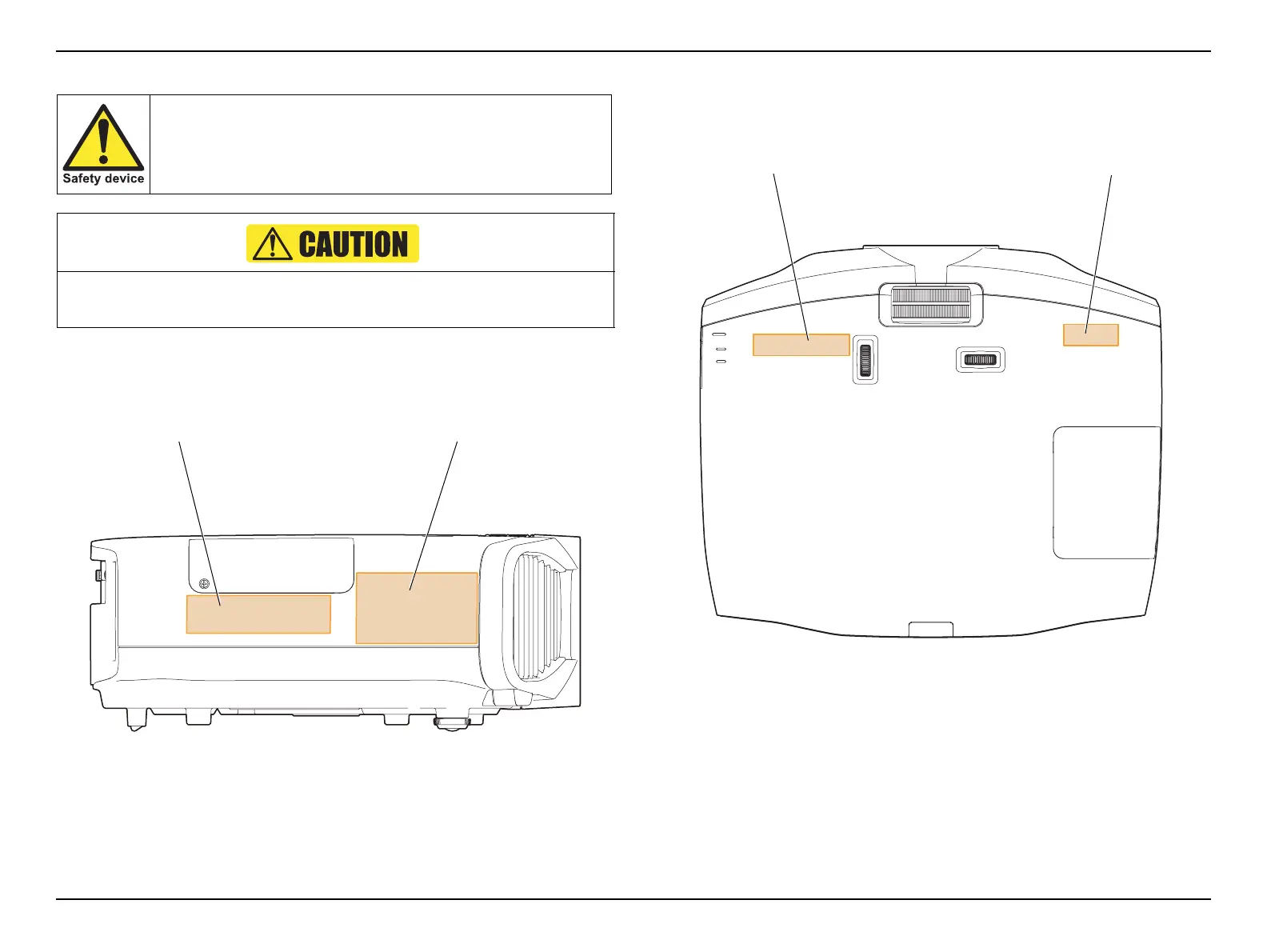

Check if all the caution labels are attached on the locations shown below.
This part is designated as the Safety Device. When removing/
replacing the part for repair, be sure to refer to “3.4 Safety Check
after Servicing (p.113)”. According to the instructions in it,
handle the part and perform the procedure after servicing.
When replacing the Upper Case (with caution labels attached), make sure to
transfer the labels to the new case.
CAUTION LABEL,Sheet
(Part D)
CAUTION LABEL,Sheet
(Part C)
CAUTION LABEL,Sheet
(Part B)
CAUTION LABEL,Sheet
(Part A)
