Epson EH-TW9000 Service Manual

EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 79 Revision A

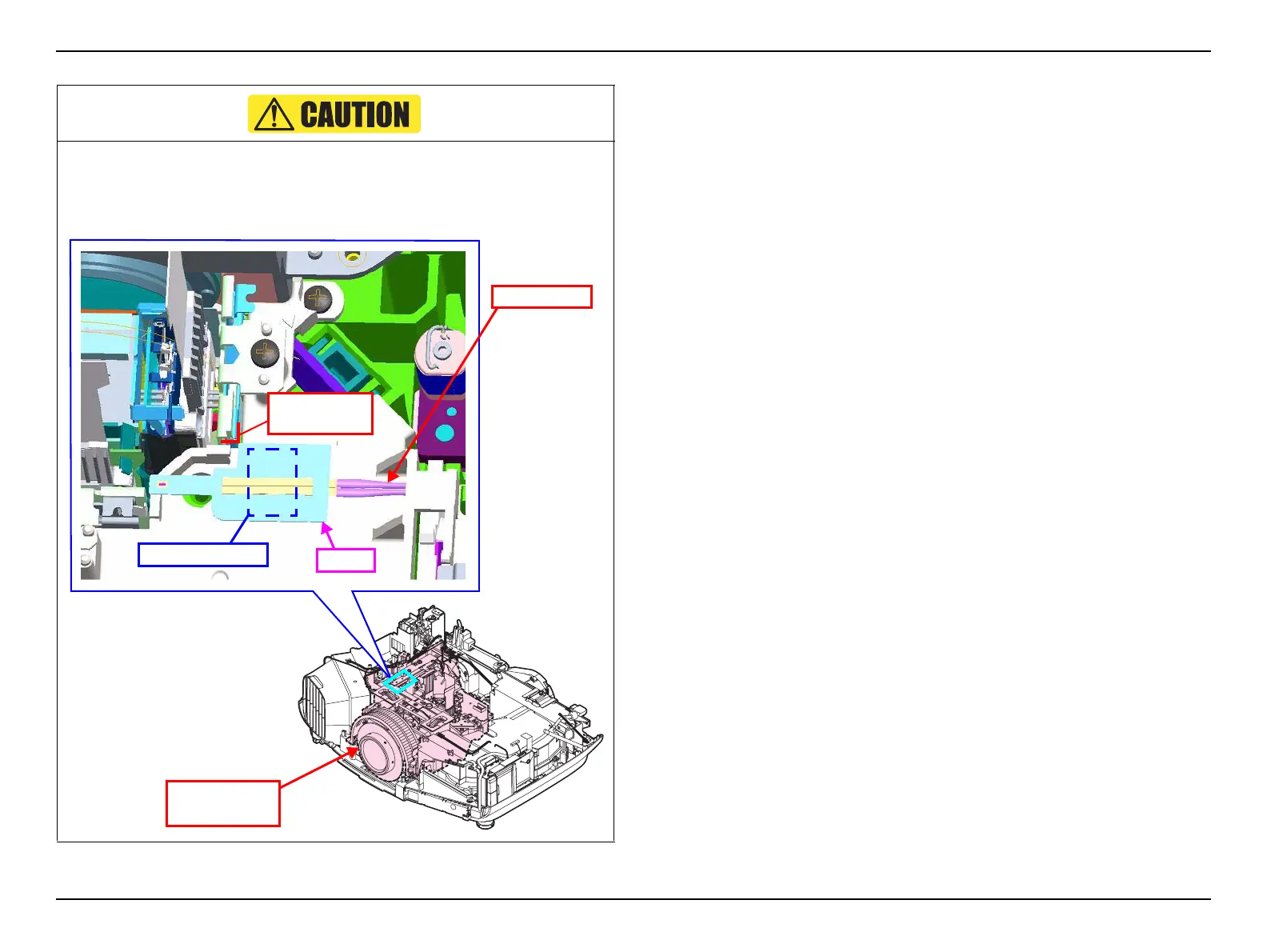

On the Optical Engine, route the thermistor through the slit of the sheet as
shown below, and align the sheet at the upper left corner with the corner of the
light guide marked with a red line, then secure the sheet with the double-sided
tape on the back.
Double-sided tape
Corner of the
light guide
Sheet
Optical Engine
(assembly)
Thermistor
