EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 85 Revision A

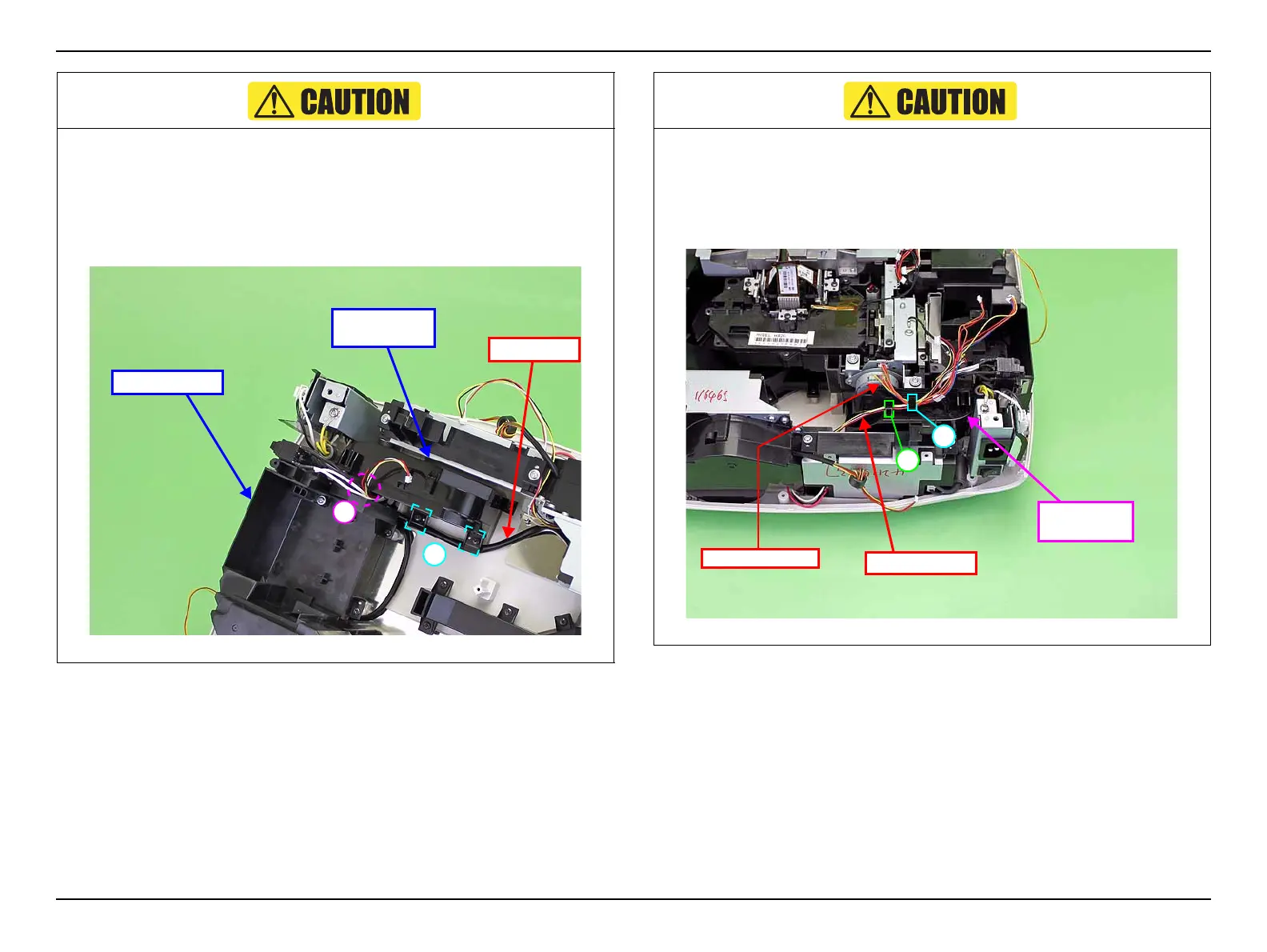

Route the Lamp Fan cable as shown in the figure below.
1. Pull out the cable from between the Inner EX Duct and the Lamp Fan
(assembly) (1).
2. Route the AC Cable as shown below and secure the cable with two feet (2) of the
Lamp Fan (assembly).
2
1
AC Cable
Inner EX Duct
Lamp Fan
(assembly)
Route the PS Fan cable and Auto Iris cable as shown in the figure below.
1. Route the PS Fan cable through the hook (1) on the Lamp Fan (assembly).
2. Route both PS Fan cable and Auto Iris cable through the hook (2) on the Lamp
Fan (assembly).
2
PS Fan cable
Lamp Fan
(assembly)
1
Auto Iris cable
