Epson EH-TW9000 Service Manual

EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 88 Revision A

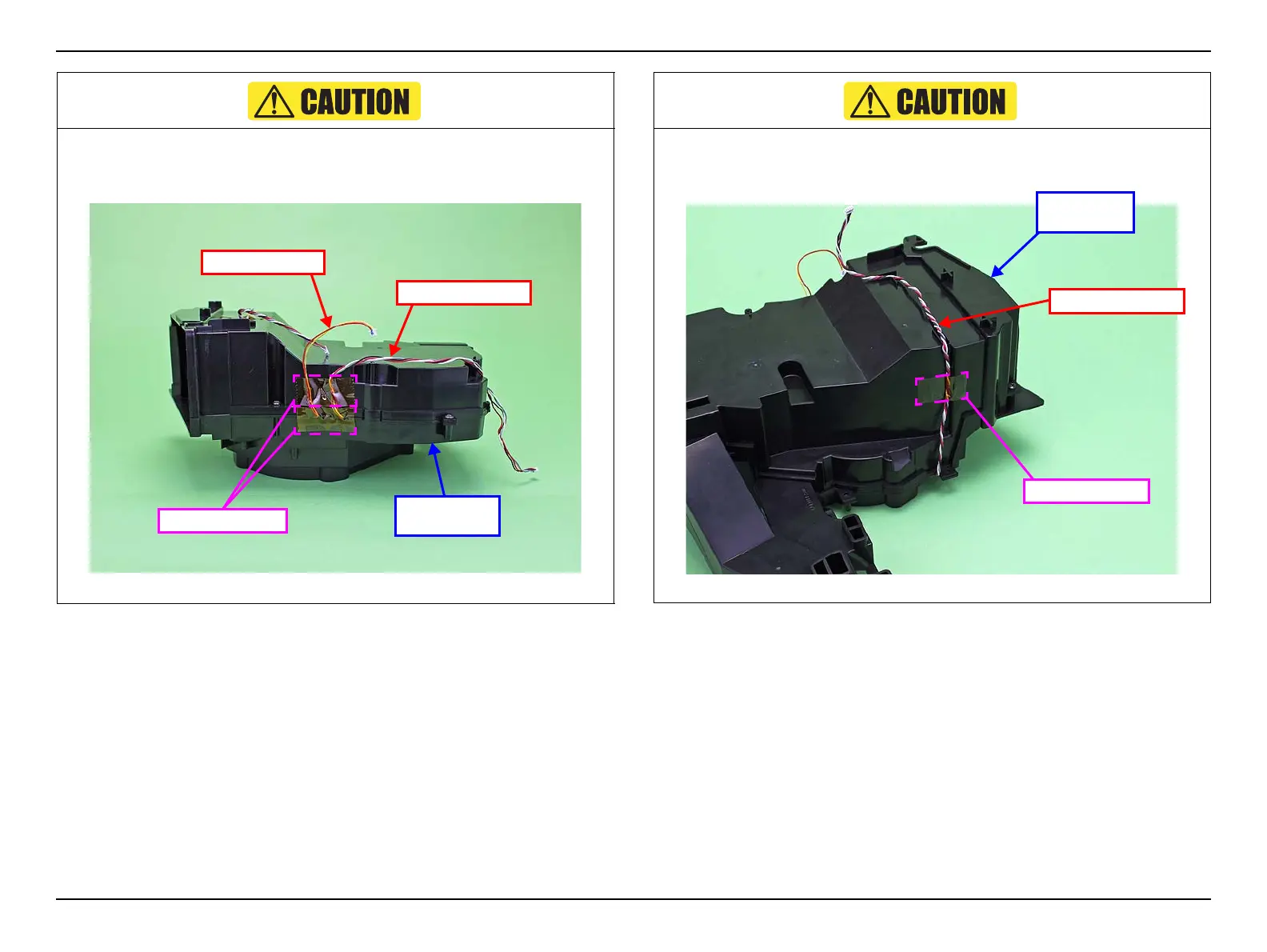

Secure the Air TH Cable and INT Fan (2) cable on the Upper INT Duct and LV
Duct at two parts with polyimide tape (25(W) x 40(L)mm x 2 pieces).
INT Duct
(assembly)
INT Fan (2) cable
Air TH Cable
Polyimide tape
Route the INT Fan (1) cable as shown below and secure it on the side of INT
Duct (assembly) with polyimide tape.
INT Duct
(assembly)
INT Fan (1) cable
Polyimide tape
