EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 90 Revision A
14. Remove the two screws ( ), and remove the LV Duct.
15. Remove the LG Lower Seal Cushion from the LV Duct.
16. Remove the INT Seal D from the LV Duct.
17. Remove the INT Fan (1) from the Lower INT Duct.
18. Remove the following parts from the INT Fan (1).
• Light Valve Cushion (x3)
• EX Fan Cushion (x3)
• INT Seal A

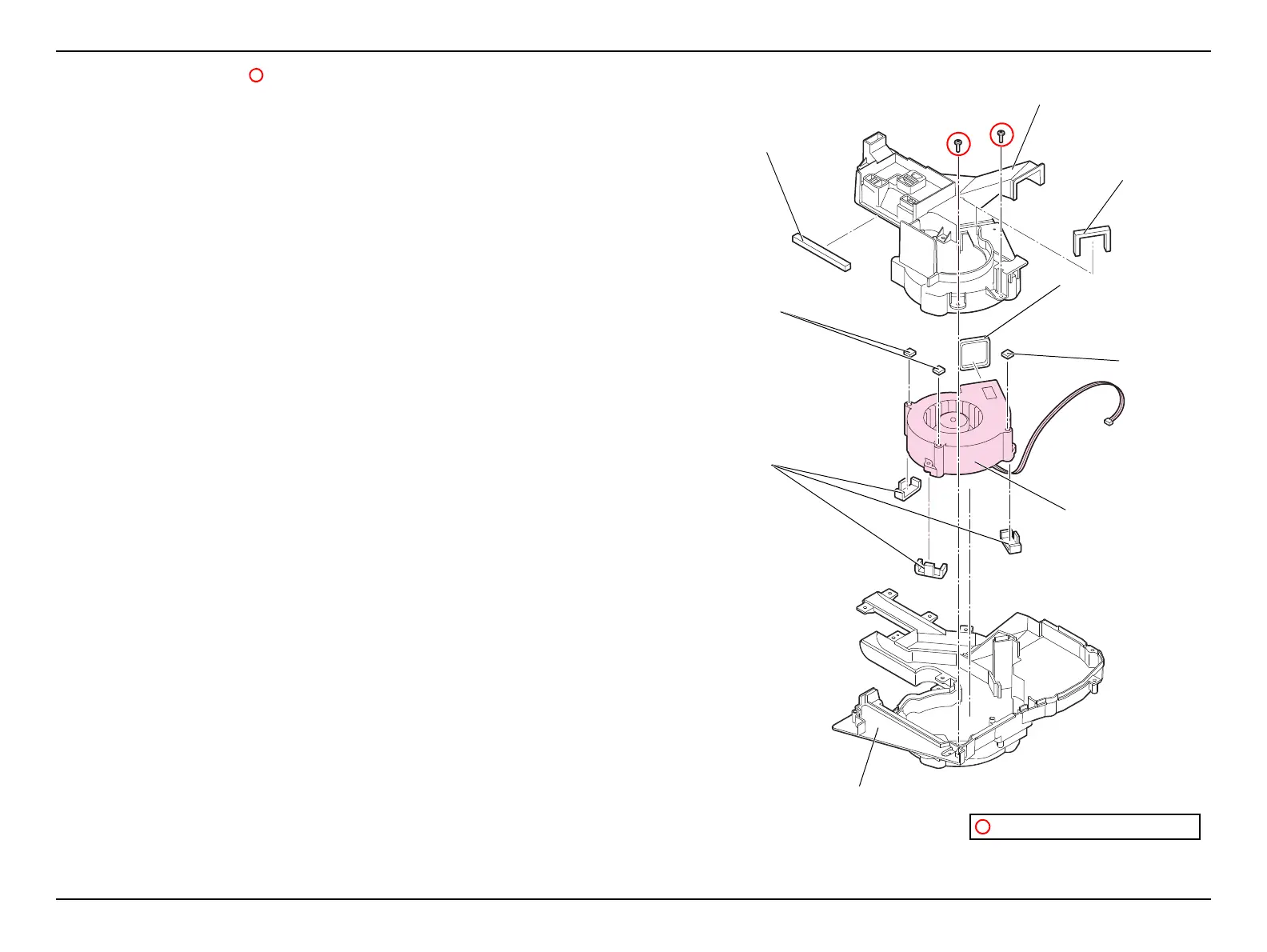

Figure 3-27.
LV Duct
INT Fan (1)
Light Valve
Cushion
INT Seal D
INT Seal A
Light Valve
Cushion
C.B.P-TITE SCREW,3X10,F/ZB-3C
EX Fan
Cushion
LG Lower Seal
Cushion
Lower INT Duct
