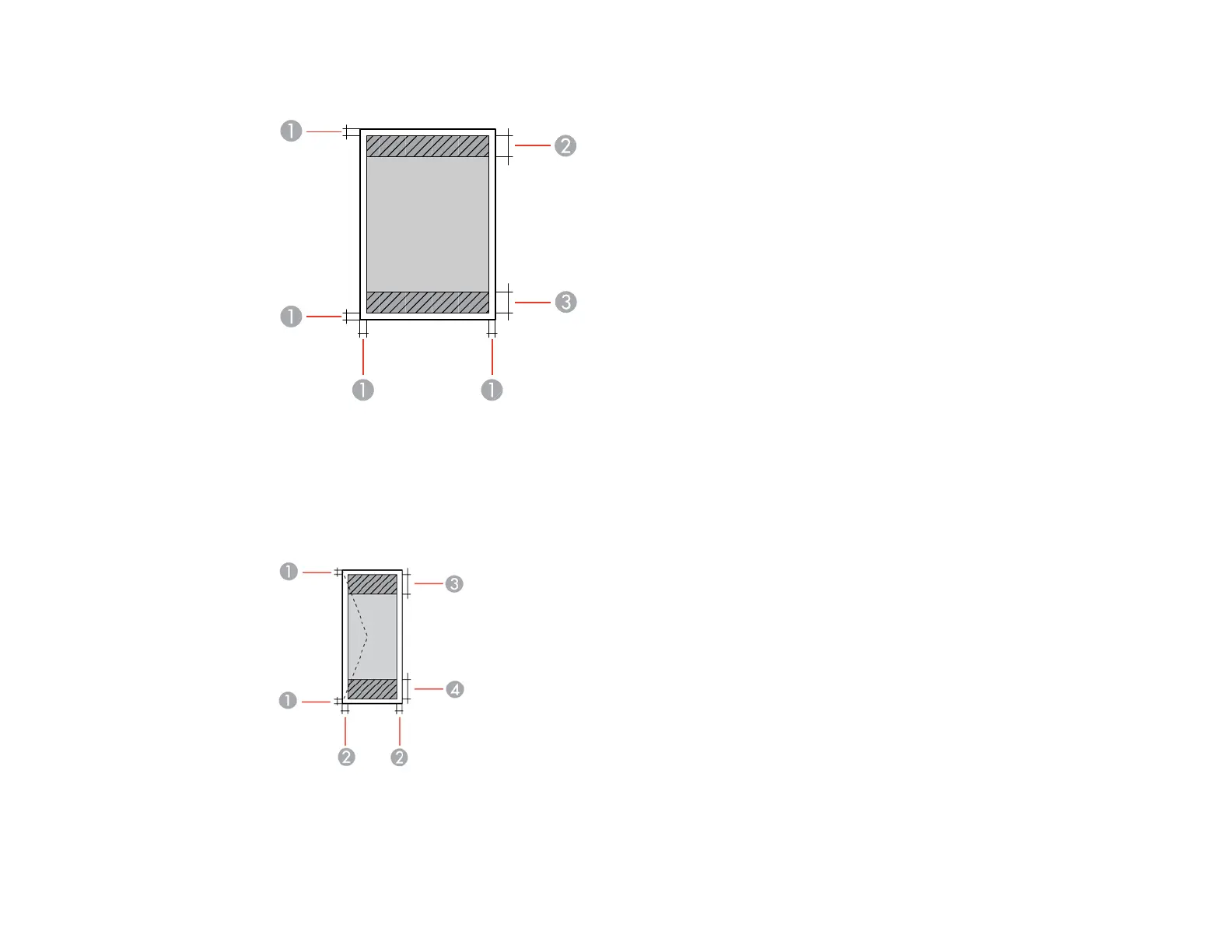

Single sheets

1 Top/bottom/left/right margins: 0.12 inch (3 mm) minimum

2 Reduced print quality area/top: 1.81 inches (46 mm) minimum

3 Reduced print quality area/bottom: 1.73 inches (44 mm) minimum

Envelopes

1 Right/left margins: 0.12 inch (3 mm) minimum

2 Top/bottom margins: 0.12 inch (3 mm) minimum
