Disassembly/Reassembly Overview 29
L350/L300/L355/L210/L110 Series Revision B
5. When the ink stops flowing from the tube, close the choke valve, and then connect the Ink Supply Tube
back to the joint.
6. Disconnect the Ink Supply Tube of the same color connected to the opposite side of the joint.
7. Connect the tube from the injector.
8. Open the choke valve again, and suck up the remaining ink in the Ink Supply Tank into the injector.
9. Disconnect the tube from the injector, and connect the Ink Supply Tube of the same color back to the
joint.

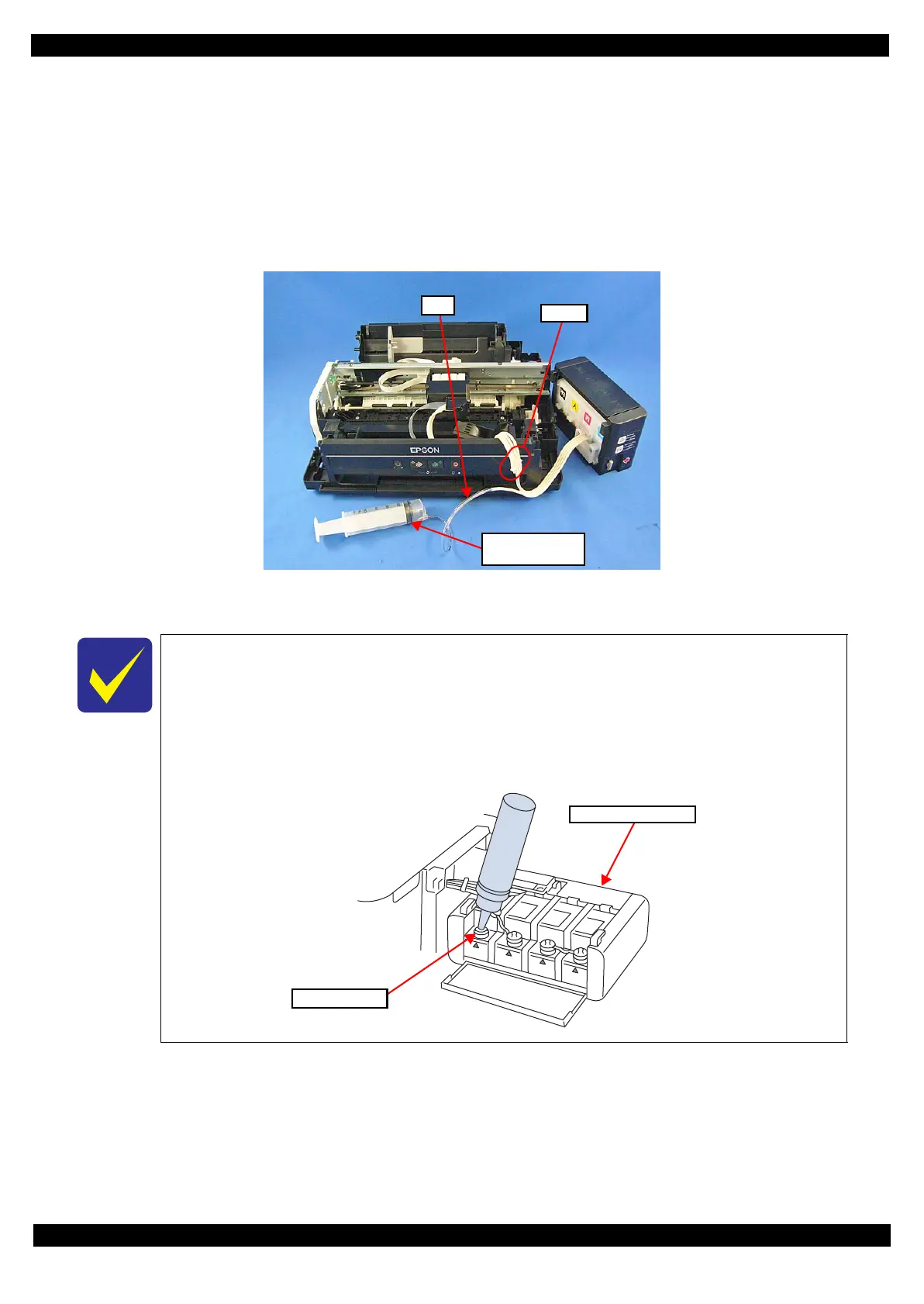

Figure 2-13. Discharging Ink (2)
10. Repeat Step 3 to Step 10 for all ink tanks to discharge all ink in the Ink Supply Tank.
 It is recommended that the ink in the Ink Supply Tank should be discharged completely
before proceeding to disassembling/reassembling.
 After all the reassembling work is complete, the discharged ink of each color should be
refilled back to the Ink Supply Tank before performing the adjustment. Confirm the
colors indicated on the film of the Ink Supply Tank so as not to mistake them, and make
sure to refill each ink back to the correct tank from the corresponding ink supply hole.
Injector
(tip of
φ 3.2 mm)
Tube
Joint
Ink supply hole
Ink Supply Tank Assy

Epson L110 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum resolution	5760 x 1440 DPI
Print speed (color, draft quality, A4/US Letter)	15 ppm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Sound pressure level (printing)	38 dB
Paper input type	Paper tray
Total input capacity	50 sheets
Total output capacity	30 sheets
Envelopes sizes	10, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	4x6, 5x7, 8x10 \
Maximum ISO A-series paper size	A4
Ethernet LAN	No
Standard interfaces	USB 2.0
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	10 W
Sustainability certificates	ENERGY STAR
Product color	Black
Market positioning	Home & office

Weight and Dimensions

Depth	222 mm
Width	472 mm
Height	130 mm
Weight	2700 g
