Epson L110 Service Manual

Confidential
Appendix Protection for Transportation 76
L350/L300/L355/L210/L110 Series Revision B
5.3.3 Securing the Ink Supply Tank Assy/Top Cover
 Purpose
To prevent damage on the Ink Supply Tank Assy/Top Cover from shock during transportation.
 Risks if it is not performed
Damage on the Ink Supply Tank Assy/Top Cover.
 Preparation

Ink Supply Tank Assy
Prepare three pieces of strong tape (length: 80 mm, width: 22 mm, fold one end 5 mm).
 Top Cover
Prepare two pieces of strong tape (length: 55 mm, width: 22 mm, fold one end 5 mm).
 Method

Ink Supply Tank Assy
Align the unfolded end of strong tape (x3) with the edge of the Housing Right, and attach the tape along the shape
of the Housing Right/Ink Supply Tank Assy through the openings between the Air Release Hole Caps.
 Top Cover
Secure both sides of the Top Cover with strong tape (x2).

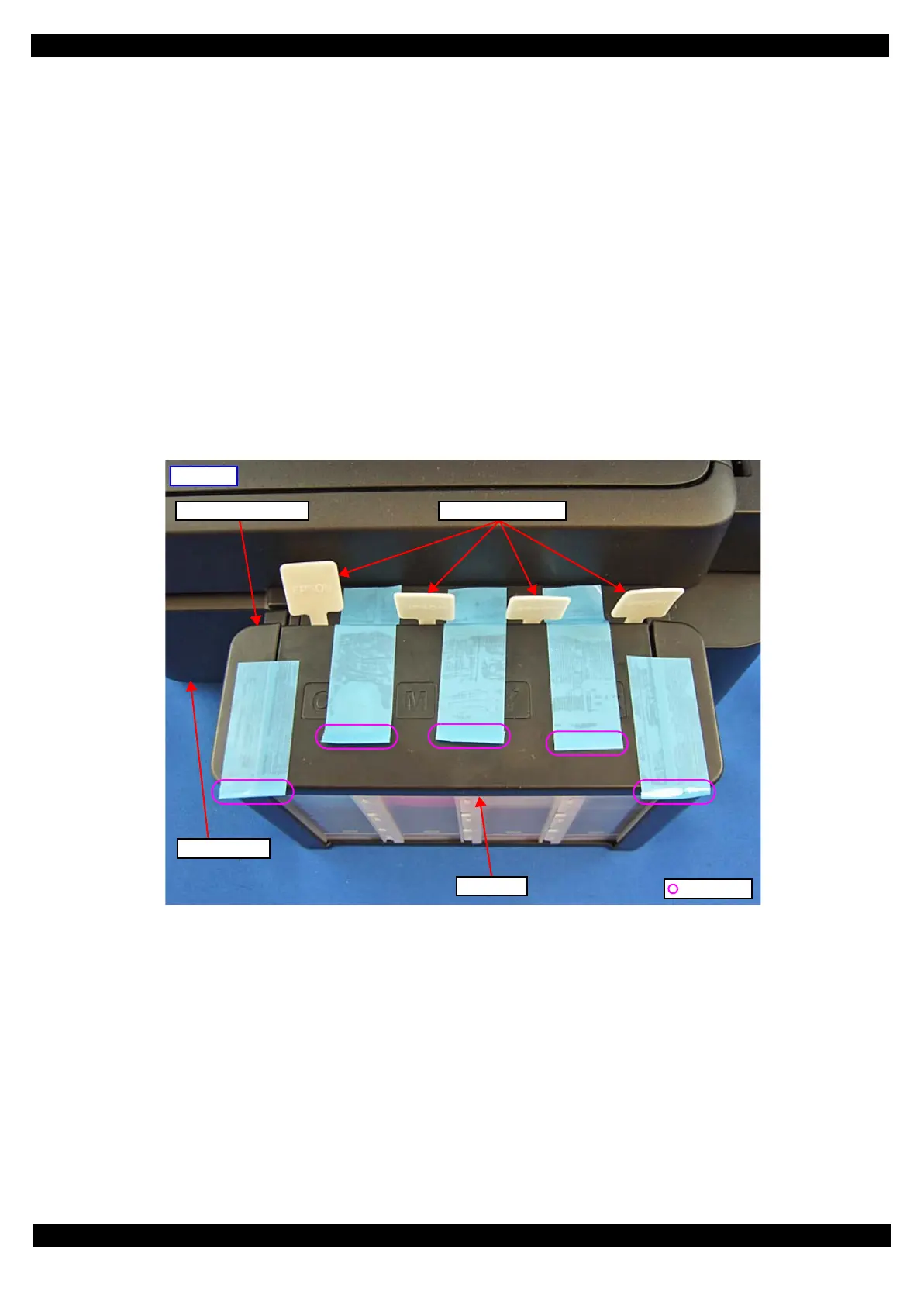

Figure 5-5. Securing the Ink Supply Tank Assy/Top Cover
Right side
Top Cover
Housing Righr
Ink Supply Tank Assy
Folded ends
Air Release Hole Caps

Epson L110 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum resolution	5760 x 1440 DPI
Print speed (color, draft quality, A4/US Letter)	15 ppm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Sound pressure level (printing)	38 dB
Paper input type	Paper tray
Total input capacity	50 sheets
Total output capacity	30 sheets
Envelopes sizes	10, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	4x6, 5x7, 8x10 \
Maximum ISO A-series paper size	A4
Ethernet LAN	No
Standard interfaces	USB 2.0
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	10 W
Sustainability certificates	ENERGY STAR
Product color	Black
Market positioning	Home & office

Weight and Dimensions

Depth	222 mm
Width	472 mm
Height	130 mm
Weight	2700 g
