Epson L110 Service Manual

L350/L300/L355/L210/L110 Series Revision B
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 46
Confidential

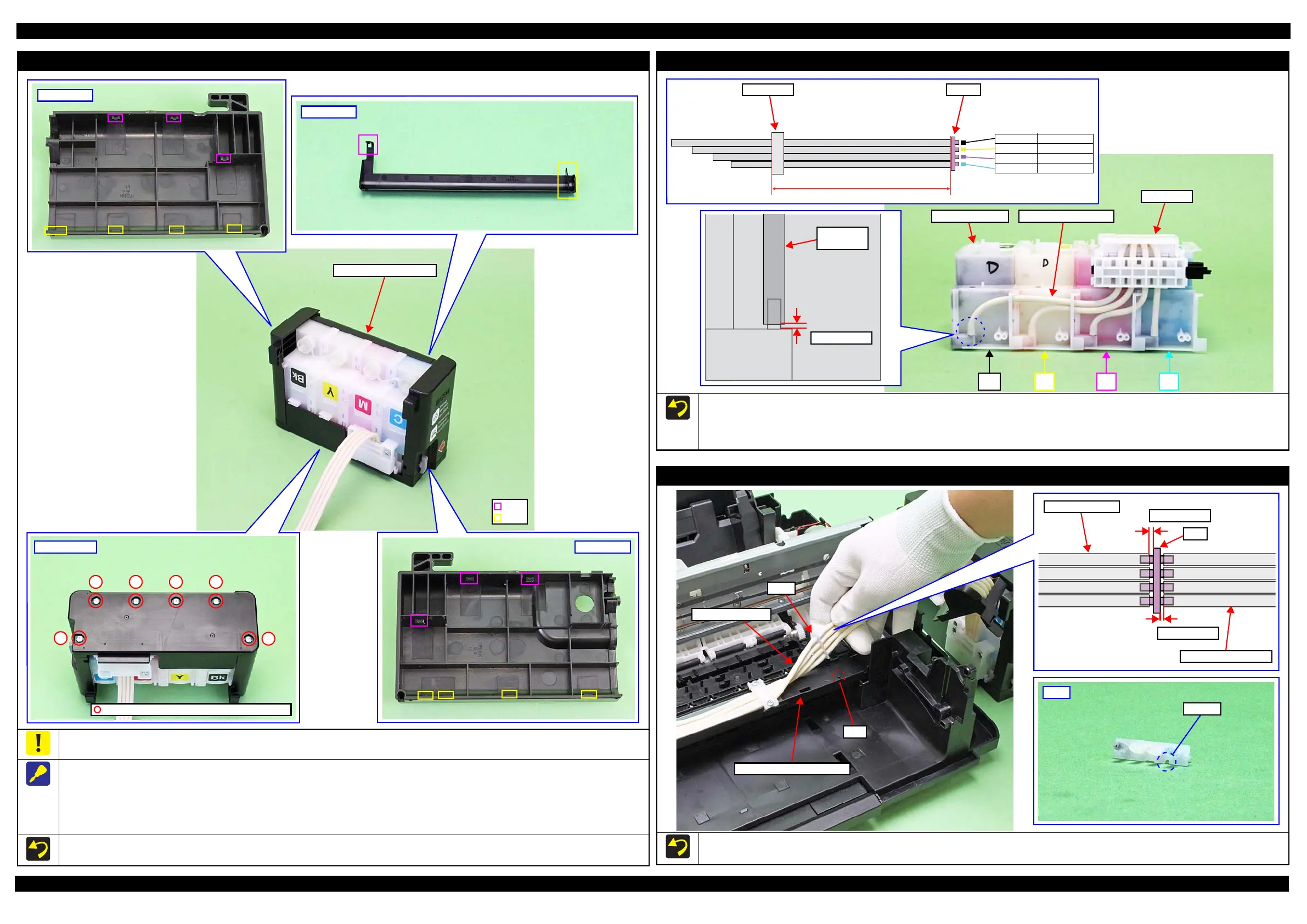

Bottom Cover / Left Cover / Right Cover / Cover Joint
Be careful about how to place the Ink Supply Tank Assy in order to prevent printing failure from occurring. (See "2.1.5Checks and Precautions before
Disassembling (p25)"
.)
 The figures above indicate the hooks and ribs that secure the parts.
 Remove the exterior parts of the Ink Supply Tank Assy in the following order.
1. Remove the screws (x6) of the Bottom Cover, and remove the Bottom Cover.
2. Remove the Left Cover and Right Cover.
3. Remove the Cover Joint.
Tighten the screws in the order indicated in the figure above.
Ink Supply Tank Assy
Hook
Rib
Cover Joint
Left Cover
Bottom Cover
1
2
3 45 6
C.B.P-TITE SCREW 3x6 F/ZN-3C (4 ± 1 kg·fcm)
Right Cover
Ink Supply Tank Tube Assy
 When connecting the Ink Supply Tank Tube to the Ink Supply Tank, confirm the color indicated on the film of the Ink Supply Tank, and take
care not to connect them with wrong joints.
 When connecting the Ink Supply Tank Tube to the Ink Supply Tank, insert the tubes to the full and make sure the gaps between the end of tubes
and the tank are 0.5 mm long or less.
Yellow
Black
358 ± 1 mm
Cyan 311 ± 1 mm
387 ± 1 mm
Magenta 330 ± 1 mm
265 ± 1 mm
Valve Case Joint
Valve Case
Ink Supply Tank Tube
CMBk Y
Ink Supply Tank
Ink Supply
Tank Tube
0.5 mm or less
Joint
 When attaching the Joint, align the cutout of the Joint with the rib of the Ink Supply Tube Guide 2nd.
 Make sure the gaps between the end of Ink Supply Tank Tubes or Ink Supply Tubes and the Joint are 0.5 mm long or less.
Joint
Rib
Ink Supply Tube
Ink Supply Tube Guide 2nd
0.5 mm or less
Ink Supply Tube
Ink Supply Tank Tube
Joint
0.5 mm or less
Joint
Cutout

Epson L110 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum resolution	5760 x 1440 DPI
Print speed (color, draft quality, A4/US Letter)	15 ppm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Sound pressure level (printing)	38 dB
Paper input type	Paper tray
Total input capacity	50 sheets
Total output capacity	30 sheets
Envelopes sizes	10, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	4x6, 5x7, 8x10 \
Maximum ISO A-series paper size	A4
Ethernet LAN	No
Standard interfaces	USB 2.0
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	10 W
Sustainability certificates	ENERGY STAR
Product color	Black
Market positioning	Home & office

Weight and Dimensions

Depth	222 mm
Width	472 mm
Height	130 mm
Weight	2700 g
