Epson L110 Service Manual

L350/L300/L355/L210/L110 Series Revision B
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 48
Confidential

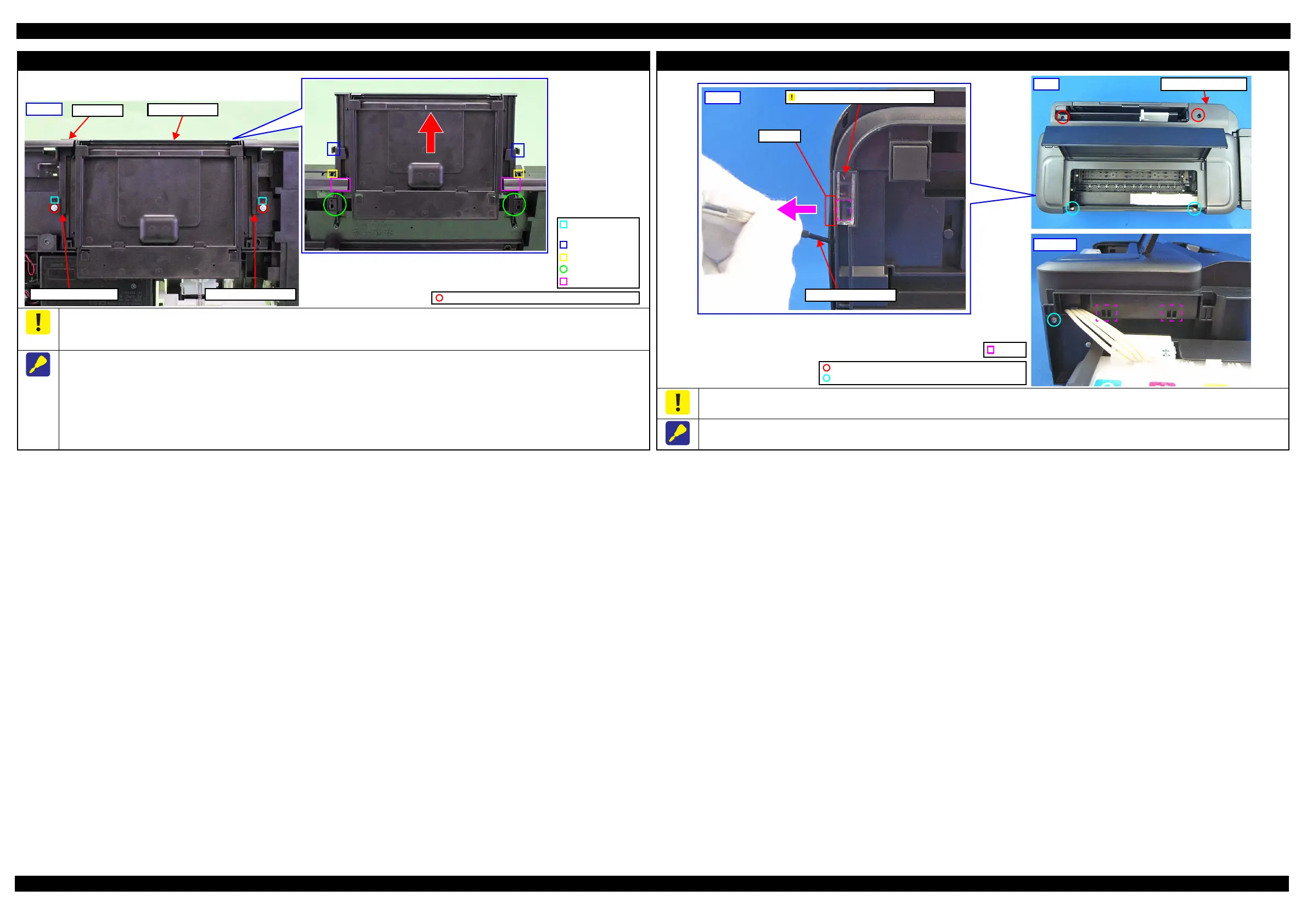

Tray Front Rail Left/Tray Front Rail Right, Tray Front Assy (L300/L110 Series)
Make sure to remove the Tray Front Assy and Tray Front Rail Left/Tray Front Rail Right after releasing the ribs on the Tray Front Rail Left/Tray
Front Rail Right from the grooves on the Frame Base. If the Tray Front Assy or Tray Front Rail Left/Right are forcibly removed if the ribs are
engaged in the grooves, the ribs may be damaged.
When removing the Tray Front Rail Left/Tray Front Rail Right and Tray Front Assy, follow the procedure below.
1. Remove the screws (x1 each) of the Tray Front Rail Left/Tray Front Rail Right.
2. Release the positioning holes (x1 each) of the Tray Front Rail Left/Tray Front Rail Right from the dowel (x2) of the Frame Base.
3. Pull the Tray Front Assy and Tray Front Rail Left/Tray Front Rail Right together, and release the ribs (x1 each) of the Tray Front Rail Left/Tray
Front Rail Right from the grooves of the Frame Base.
4. While releasing section A on the Tray Front Rail Left/Tray Front Rail Right from section B on the Frame Base, remove the Tray Front Assy and
Tray Front Rail Left/Tray Front Rail Right together.
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1 kgf·cm)
Tray Front Rail Left Tray Front Rail Right
Tray Front Assy
Frame Base
Dowel and
positioning hole
Groove
Rib
Section A
Section B
Bottom
Housing Upper Assy (L300/L110 Series)
To prevent ink mist from coming out from the printer, the Frame Base Sheet is attached on the bottom of the Frame Base. Do not peel off the Frame
Base Sheet when removing the Housing Upper Assy, because the Frame Base Sheet is not reusable.
Release the hooks shown above when removing the Housing Upper.
Housing Upper Assy
Top
Right side
Frame Base Sheet: Do not remove
Section A
Precision screwdriver
Bottom
C.B.P-TITE SCREW 3x10 F/ZB-3C (6 ± 1 kgf·cm)
Hook
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1 kgf·cm)

Epson L110 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum resolution	5760 x 1440 DPI
Print speed (color, draft quality, A4/US Letter)	15 ppm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Sound pressure level (printing)	38 dB
Paper input type	Paper tray
Total input capacity	50 sheets
Total output capacity	30 sheets
Envelopes sizes	10, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	4x6, 5x7, 8x10 \
Maximum ISO A-series paper size	A4
Ethernet LAN	No
Standard interfaces	USB 2.0
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	10 W
Sustainability certificates	ENERGY STAR
Product color	Black
Market positioning	Home & office

Weight and Dimensions

Depth	222 mm
Width	472 mm
Height	130 mm
Weight	2700 g
