Epson L110 Service Manual

L350/L300/L355/L210/L110 Series Revision B
Confidential
Maintenance Lubrication Points and Instructions 68

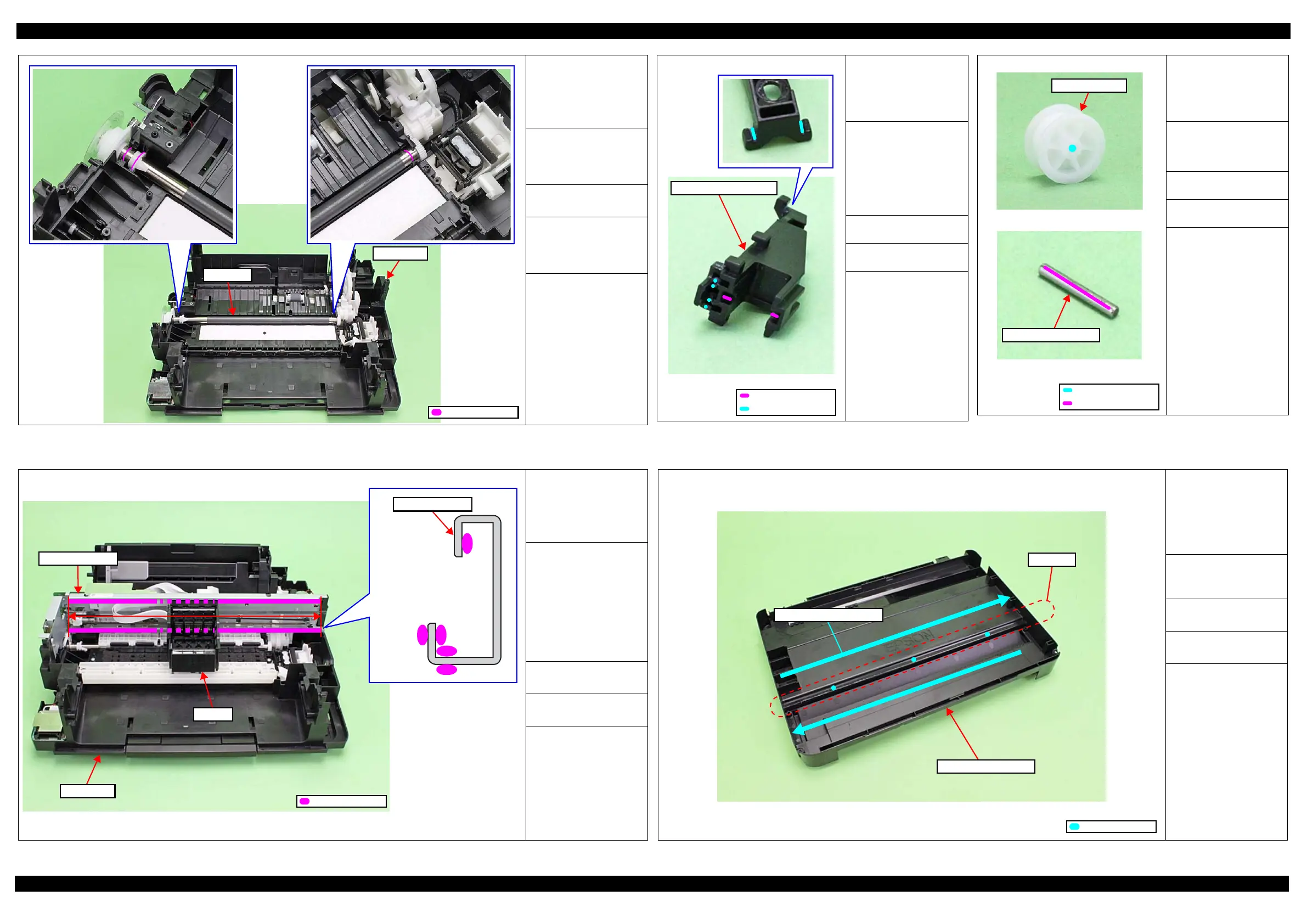

Figure 4-10. Lubrication of the PF Roller
<Part supply as ASP>
Yes
<Lubrication status when
supplied as ASP>
Not lubricated
<Lubrication Point>
Contact points (x3 on the
shaft) on the PF Roller
with the Frame Base
<Type>
G-71
<Application Amount>
On each contact point
around the shaft
(appropriate amount)
<Remarks>
 Apply with injector.
 Lubricate before
attaching the part.
PF Roller
Application Point
Frame Base
Figure 4-11. Lubrication of the CR Driven Pulley Assy
Figure 4-12. Lubrication of the CR Driven Pulley/
CR Driven Pulley Shaft
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
1.
On the bearings (x2) of the
CR Driven Pulley on the
CR Driven Pulley Holder
2. Contact points (x6) on
the groove of the CR
Driven Pulley Holder
with the Main Frame
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
 Apply with injector.
 Check the lubrication
condition and apply
grease if necessary.
CR Driven Pulley Holder
2. Application Point
1. Application Point
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
1.
Shaft hole of the Driven
Pulley.
2. CR Driven Pulley Shaft
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
Apply with injector.
2. Application Point
1. Application Point
CR Driven Pulley
CR Driven Pulley Shaft
Figure 4-13. Lubrication of the Main Frame Assy
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
1. Contact point (x1) on
the upper side of the
Main Frame Assy with
the CR Unit
2. Contact points (x4) on
the lower side of the
Main Frame Assy with
the CR Unit
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
Apply with injector.
Main Frame Assy
CR Unit
Application Point
Main Frame Assy
Frame Base
Figure 4-14. Lubrication of the Scanner Housing Lower
<Part supply as ASP>
Supplied as the Scanner
Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
Guide rail of the Scanner
Housing Lower
<Type>
G-45
<Application Amount>
0.03 g x 3 points
<Remarks>
After applying with
injector, spread it with
brush in the direction of the
arrow.
Scanner Housing Lower
Spread grease with brush.
Guide rail
Application Point

Epson L110 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum resolution	5760 x 1440 DPI
Print speed (color, draft quality, A4/US Letter)	15 ppm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Sound pressure level (printing)	38 dB
Paper input type	Paper tray
Total input capacity	50 sheets
Total output capacity	30 sheets
Envelopes sizes	10, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	4x6, 5x7, 8x10 \
Maximum ISO A-series paper size	A4
Ethernet LAN	No
Standard interfaces	USB 2.0
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	10 W
Sustainability certificates	ENERGY STAR
Product color	Black
Market positioning	Home & office

Weight and Dimensions

Depth	222 mm
Width	472 mm
Height	130 mm
Weight	2700 g
