Epson L132 User Manual

Confidential
Appendix Connector Diagram 73
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A

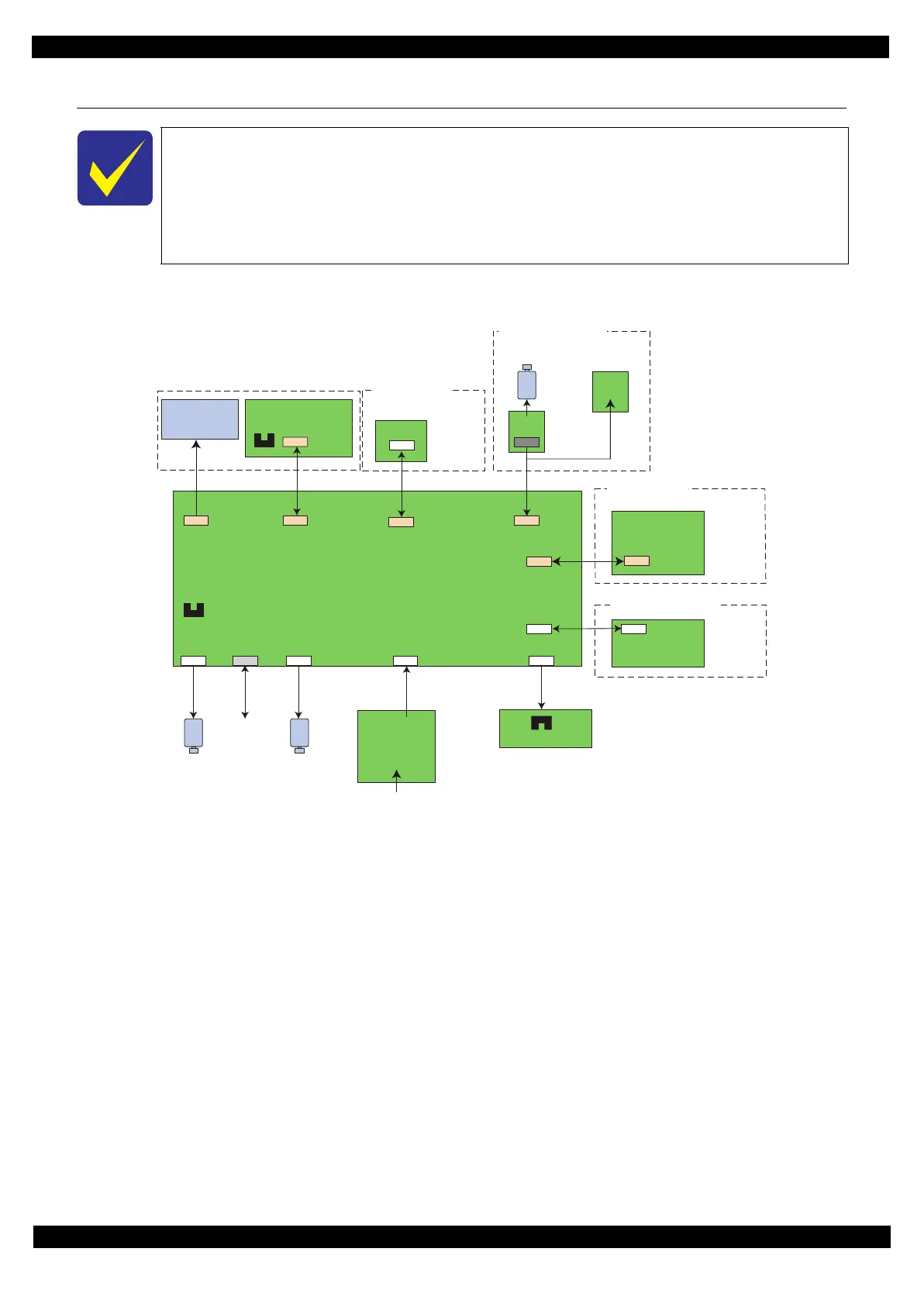

5.1 Connector Diagram
Cable connections of this printer are shown below.
Figure 5-1. Connector Diagram
In this chapter, the product names are called as follows:
 L365/L366 Series:L365/L366
 L360/L362 Series:L360/L362/L363
 L310/L312 Series:L310/L312/L313
 L220/L222 Series:L210/L211
 L130/L132 Series:L110/L111
CN501 CN7CN13CN12
CN61 CN11
CN102
Printhead
CIS
PE Sensor
CR Motor
SCN Motor
PF Motor
USB
CN3
CN2
CN4
PF Encoder
CR Encoder
WiFi Board
AC in
PS Board
Main Board
Scanner Unit
CN1
CN1
Panel Board
CN1
CR Unit
Panel Unit
Paper Sensor Unit
CN1
CN1
Wireless Module

Epson L132 Specifications

General

Maximum Print Resolution	5760 x 1440 dpi
Ink Type	Dye Ink
Number of Ink Bottles	4
Connectivity	USB 2.0
Ink Tank System	Yes
Weight	2.7 kg
Print Technology	Inkjet
Paper Sizes	A4, A5, A6, B5, DL
Print Speed (Color)	15 ppm
Operating System Compatibility	Windows XP/XP Professional x64 Edition/Vista/7/8/8.1/10, Mac OS X 10.6.8 or later
Paper Capacity	100 sheets (A4, Letter)
Print Speed (Black)	Approx. 27 ppm
Ink Tank Capacity	70 ml (per bottle)
