Confidential
Disassembly/Reassembly Overview 19
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
 Printer mechanism

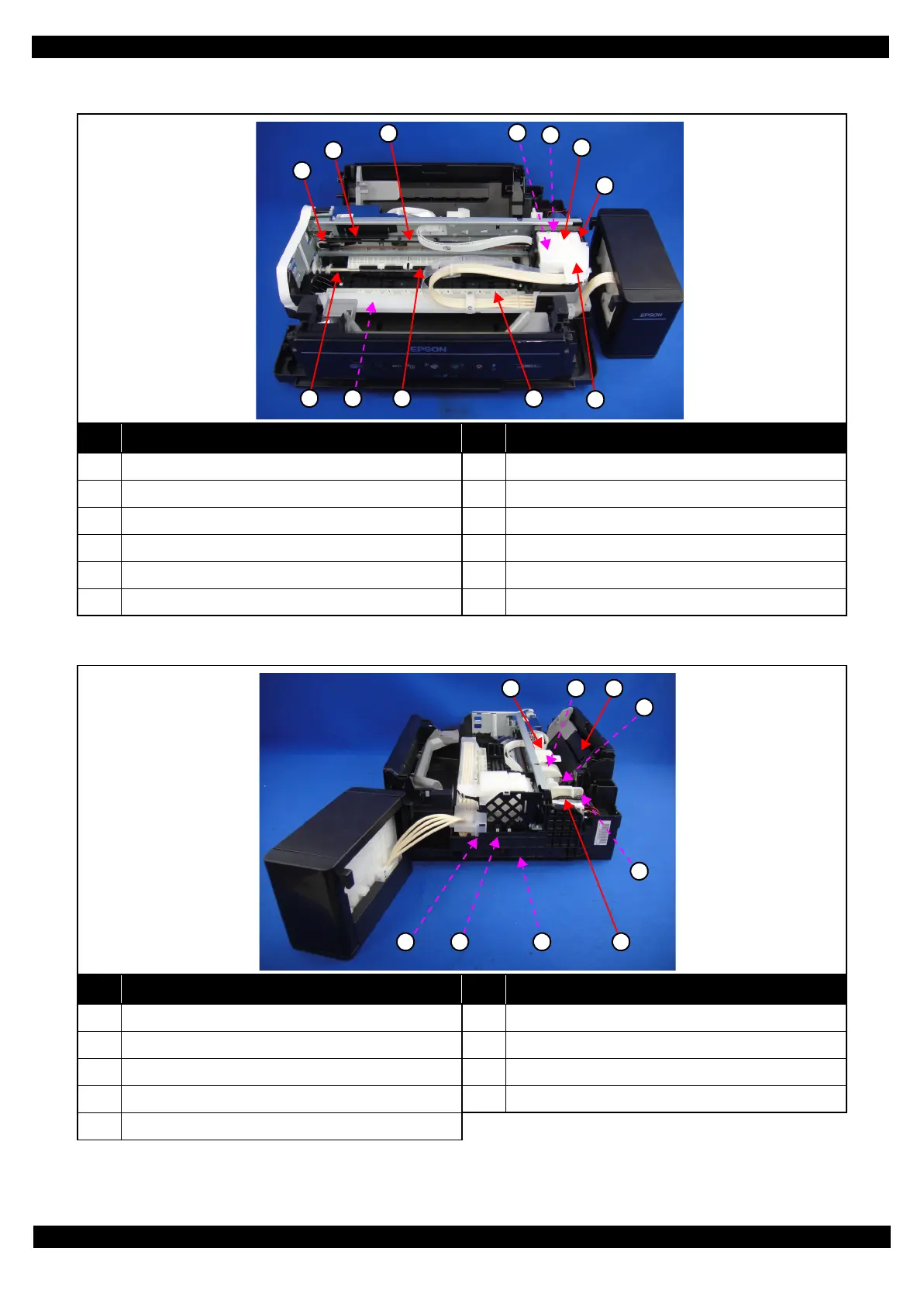

Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley Assy (p35) 7 CR Unit (p39)
2 CR Scale (p35) 8 PF Roller Unit (p39)
3 CR Timing Belt (p39) 9 Star Wheel Holder Assy (p37)
4 Printhead (p33) 10 Paper Guide Upper Assy (p39)
5 CR Encoder Sensor (p39) 11 Paper Guide Front Unit (p33)
6 Adapter (p37) 12 Adapter Cover (p37)
No. Name No. Name
1 LD Roller Cover (p35) 6 Cap Lever (p37)
2 LD Roller Assy (p35) 7 Cap Assy (p37)
3 Hopper (p35) 8 Porous Pad for Cap Assy (p37)
4 Retard Roller Assy (p33) 9 Pump Unit (p39)
5 Paper Back Lever (p33)
1
2
3
5
8 11
7
10
4
9
6
12
6 7 8 9
5
4
31 2

Epson L222 Specifications

General

Print Technology	On-demand inkjet (Piezoelectric)
Print Resolution	5760 x 1440 dpi
Minimum Ink Droplet Size	3 pl
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Copy Function	Yes
Ink Tank System	Yes
Ink Bottle Capacity (Black)	70 ml
Output Paper Capacity	30 sheets
Connectivity	USB 2.0
Weight	4.4 kg
Scanner Type	Flatbed colour image scanner
Ink Bottle Capacity (Color)	70 ml (Cyan, Magenta, Yellow)
Paper Sizes Supported	A4, A5, A6, B5, Letter, Legal
Paper Capacity	100 sheets (A4 plain paper)
Operating System Compatibility	Windows XP / Vista / 7 / 8 / 8.1, Mac OS X
Input Paper Capacity	100 sheets (A4 plain paper)
