Epson L360 Service Manual

Confidential
Disassembly/Reassembly Overview 26
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
2.1.5.2 Factors which Affect the Safety of Service Personnel such as Ink Leakage during
Operation
Ink may spill when removing the following parts from L365/L366,L360/L362,L310/L312,L220/L222,L130/
L132 Series.
This section describes the parts that may cause ink spill and the means to minimize the ink spill when removing
the parts.

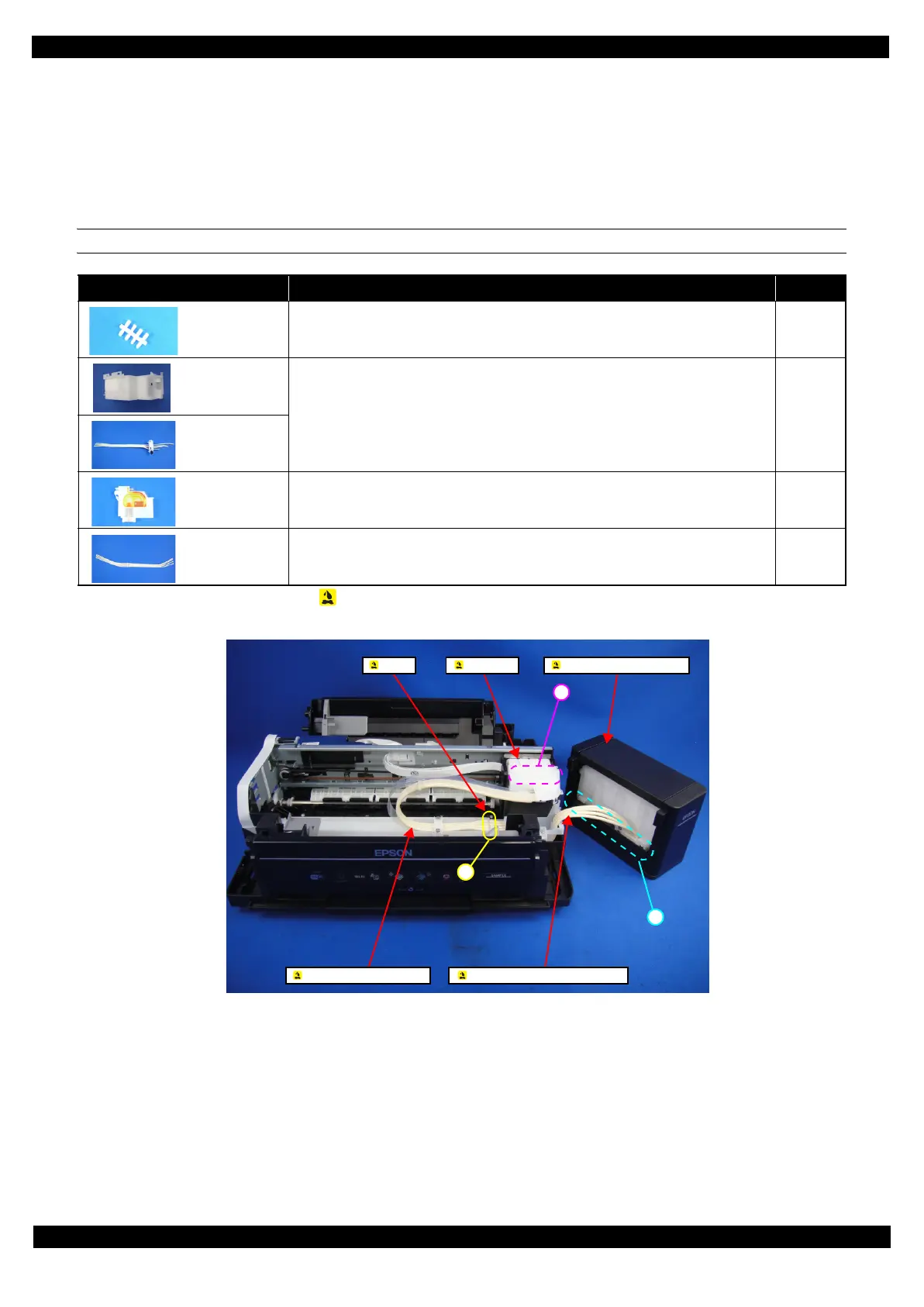

THE PARTS THAT MAY CAUSE INK SPILL WHEN REMOVING
Note : These parts are indicated with the icon in disassembly/reassembly flowchart. (See "2.2 Disassembly/Reassembly Procedures
(p31)".)
Figure 2-9. Location
Parts When ink may spill Location
Joint Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint A
Ink Supply
Tank
• Removing the tubes of the Ink Supply Tank Tube Assy from the Joint
• Removing the tubes of the Ink Supply Tank Tube Assy from the Ink Supply Tank
A, B
Ink Supply
Tank Tube Assy
Adapter Removing the Ink Supply Tube Assy from the Adapter C
Ink Supply
Tube Assy
• Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint
• Removing the Ink Supply Tube Assy from the Adapter
A, C
A
C
B
Joint Ink Supply Tank Assy
Ink Supply Tank Tube Assy Ink Supply Tube Assy
Adapter

Epson L360 Specifications

General

Print Technology	Inkjet
Print Resolution	5760 x 1440 dpi
Scanner Resolution	600 x 1200 dpi
Copy Function	Yes
Connectivity	USB 2.0
Weight	4.4 kg
Ink Colors	Black, Cyan, Magenta, Yellow
Scanner Type	Flatbed
Print Speed (Black)	Approx. 33 ppm
Print Speed (Color)	Approx. 15 ppm
Paper Tray Capacity	100 sheets
Paper Sizes	A4, A5, A6, B5, C6, DL
Operating System Support	Windows XP/Vista/7/8/8.1
