Epson L360 Service Manual

Confidential
Appendix Protection for Transportation 77
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
5.3.2 Securing the Paper Support Assy
 Purpose
To prevent damaging the Paper Support Assy by the shock during transportation.
 Risks if it is not performed
The Paper Support Assy will be scratched and the abrasion powder will be produced due to the shock during
transportation.
 Preparation
Prepare two pieces of strong tape (length: 65 mm, width: 22 mm, fold one end 5 mm).
 Method
Attach strong tape on both sides of the Paper Support Assy and secure the Paper Support Assy to the Housing
Right/Housing Left.

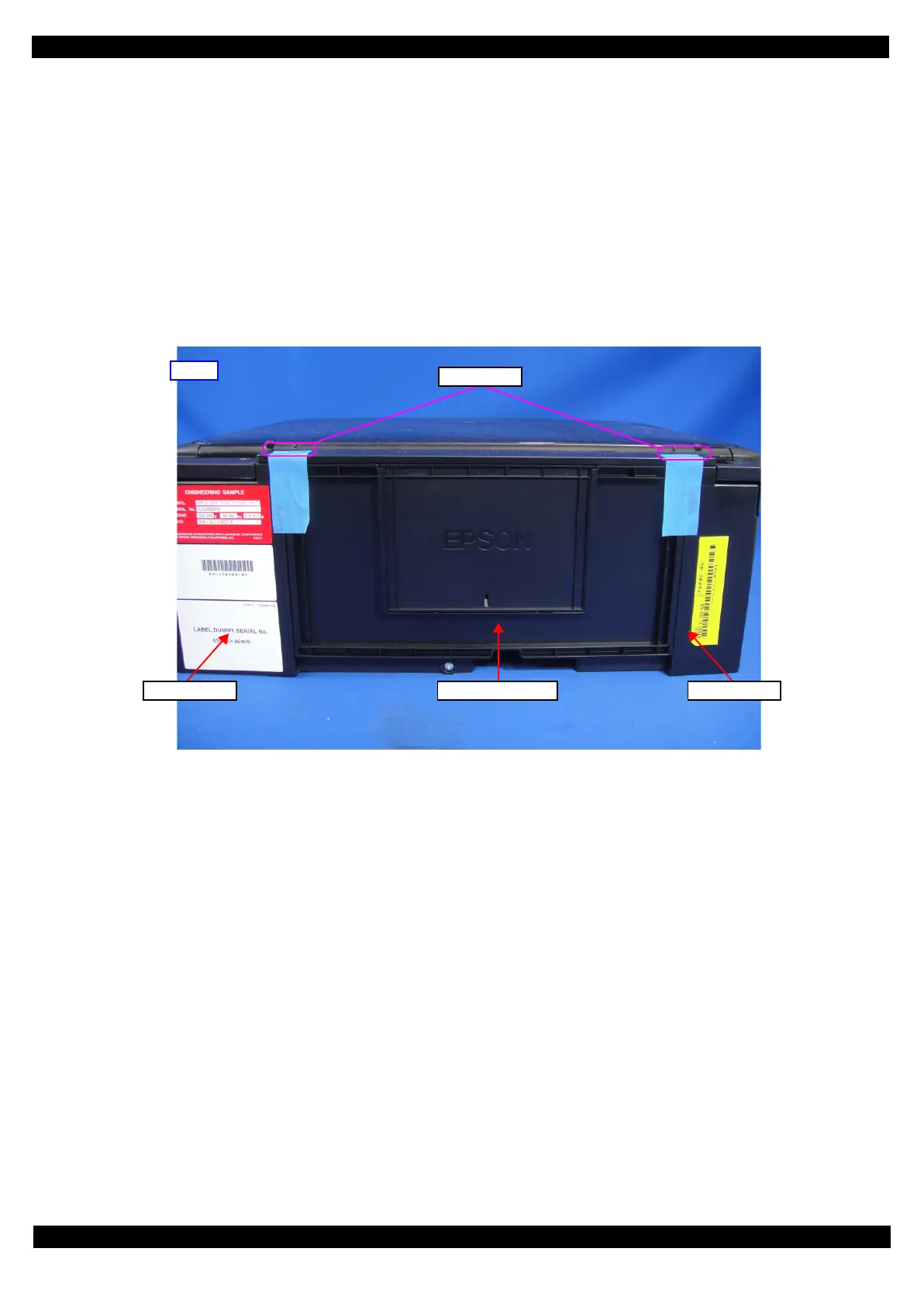

Figure 5-4. Securing the Paper Support Assy
Rear
Folded ends
Paper Support Assy Housing LeftHousing Right

Epson L360 Specifications

General

Print Technology	Inkjet
Print Resolution	5760 x 1440 dpi
Scanner Resolution	600 x 1200 dpi
Copy Function	Yes
Connectivity	USB 2.0
Weight	4.4 kg
Ink Colors	Black, Cyan, Magenta, Yellow
Scanner Type	Flatbed
Print Speed (Black)	Approx. 33 ppm
Print Speed (Color)	Approx. 15 ppm
Paper Tray Capacity	100 sheets
Paper Sizes	A4, A5, A6, B5, C6, DL
Operating System Support	Windows XP/Vista/7/8/8.1
