Epson L360 Service Manual

L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 49
Confidential

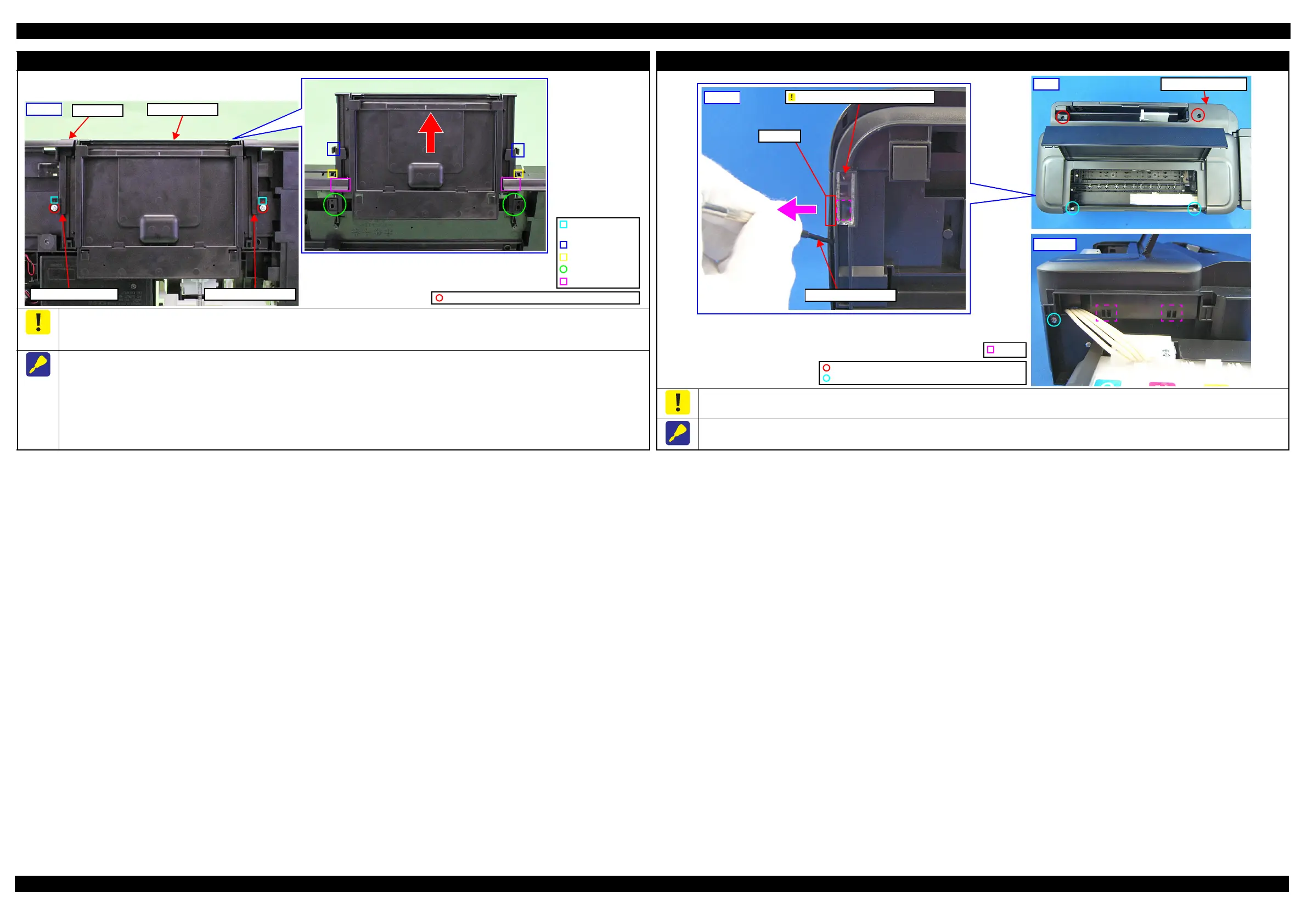

Tray Front Rail Left/Tray Front Rail Right, Tray Front Assy (L310/L312,L130/L132 Series)
Make sure to remove the Tray Front Assy and Tray Front Rail Left/Tray Front Rail Right after releasing the ribs on the Tray Front Rail Left/Tray
Front Rail Right from the grooves on the Frame Base. If the Tray Front Assy or Tray Front Rail Left/Right are forcibly removed if the ribs are
engaged in the grooves, the ribs may be damaged.
When removing the Tray Front Rail Left/Tray Front Rail Right and Tray Front Assy, follow the procedure below.
1. Remove the screws (x1 each) of the Tray Front Rail Left/Tray Front Rail Right.
2. Release the positioning holes (x1 each) of the Tray Front Rail Left/Tray Front Rail Right from the dowel (x2) of the Frame Base.
3. Pull the Tray Front Assy and Tray Front Rail Left/Tray Front Rail Right together, and release the ribs (x1 each) of the Tray Front Rail Left/Tray
Front Rail Right from the grooves of the Frame Base.
4. While releasing section A on the Tray Front Rail Left/Tray Front Rail Right from section B on the Frame Base, remove the Tray Front Assy and
Tray Front Rail Left/Tray Front Rail Right together.
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1
Tray Front Rail Left Tray Front Rail Right
Tray Front Assy
Frame Base
Dowel and
positioning hole
Groove
Rib
Section A
Section B
Bottom
Housing Upper Assy (L310/L312,L130/L132 Series)
To prevent ink mist from coming out from the printer, the Frame Base Sheet is attached on the bottom of the Frame Base. Do not peel off the Frame
Base Sheet when removing the Housing Upper Assy, because the Frame Base Sheet is not reusable.
Release the hooks shown above when removing the Housing Upper.
Housing Upper Assy
Top
Right side
Frame Base Sheet: Do not remove
Section A
Precision screwdriver
Bottom
C.B.P-TITE SCREW 3x10 F/ZB-3C (6 ± 1 kgf·cm)
Hook
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1
