Confidential
Disassembly/Reassembly Overview 18
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series
Revision A

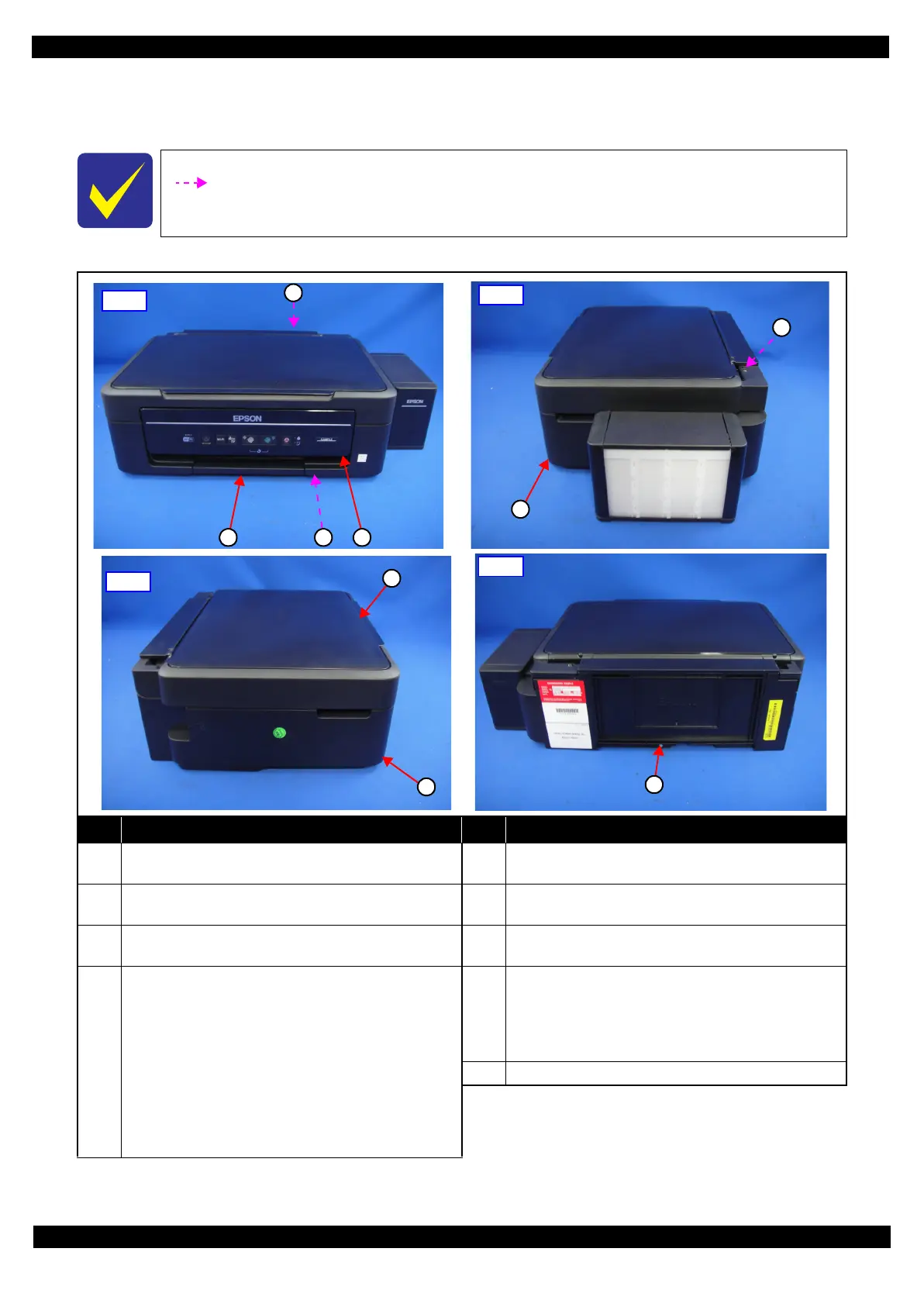

2.1.3 Locations of the Parts/Units
This section shows the locations of the main parts/units of this product.
Exterior parts
Figure 2-2. Exterior Parts
The parts/units which can not be seen in the following pictures are indicated in dotted lines
().
No. Name No. Name
1
Housing Rear (p33) (L365/L366,L360/L362,L220/L222
Series only)
5
Hinge (p37) (L365/L366,L360/L362,L220/L222 Series
only)
2 Tray Front Assy (p33) 6
Housing Right (p37) (L365/L366,L360/L362,L220/L222
Series only)
3
Frame Base Assy (p35)
7
Housing Left (p33) (L365/L366,L360/L362,L220/L222
Series only)
4
Panel Unit
L365/L366 Series (p 35)
Panel Board Assy (p38) / Panel Buttons (p38) /
Panel Housing Upper Assy (p38) / Panel Housing
Lower Assy (p38)
L360/L362,L220/L222 Series (p 35)
Panel Board Assy (p38) / Panel Buttons (p38) /
Panel Housing Upper Assy (p38) / Panel Housing
Lower Assy (p38)
8
Scanner Unit (p33) (L365/L366,L360/L362,L220/L222
Series only)
Scanner Housing Upper (p37) / Scanner Carriage Unit
(p37) / Scanner Housing Lower (p37) / CIS Module
Unit (p37) / Scanner Motor (p37)
9 Paper Support Assy (p33)
1
2 3 4
Front
5
6
Right
9
Rear
8
7
Left
