Epson L365 Service Manual

Confidential
Disassembly/Reassembly Overview 26
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
2.1.5.2 Factors which Affect the Safety of Service Personnel such as Ink Leakage during
Operation
Ink may spill when removing the following parts from L365/L366,L360/L362,L310/L312,L220/L222,L130/
L132 Series.
This section describes the parts that may cause ink spill and the means to minimize the ink spill when removing
the parts.
THE PARTS THAT MAY CAUSE INK SPILL WHEN REMOVING
Note : These parts are indicated with the icon in disassembly/reassembly flowchart. (See "2.2 Disassembly/Reassembly Procedures
(p31)".)

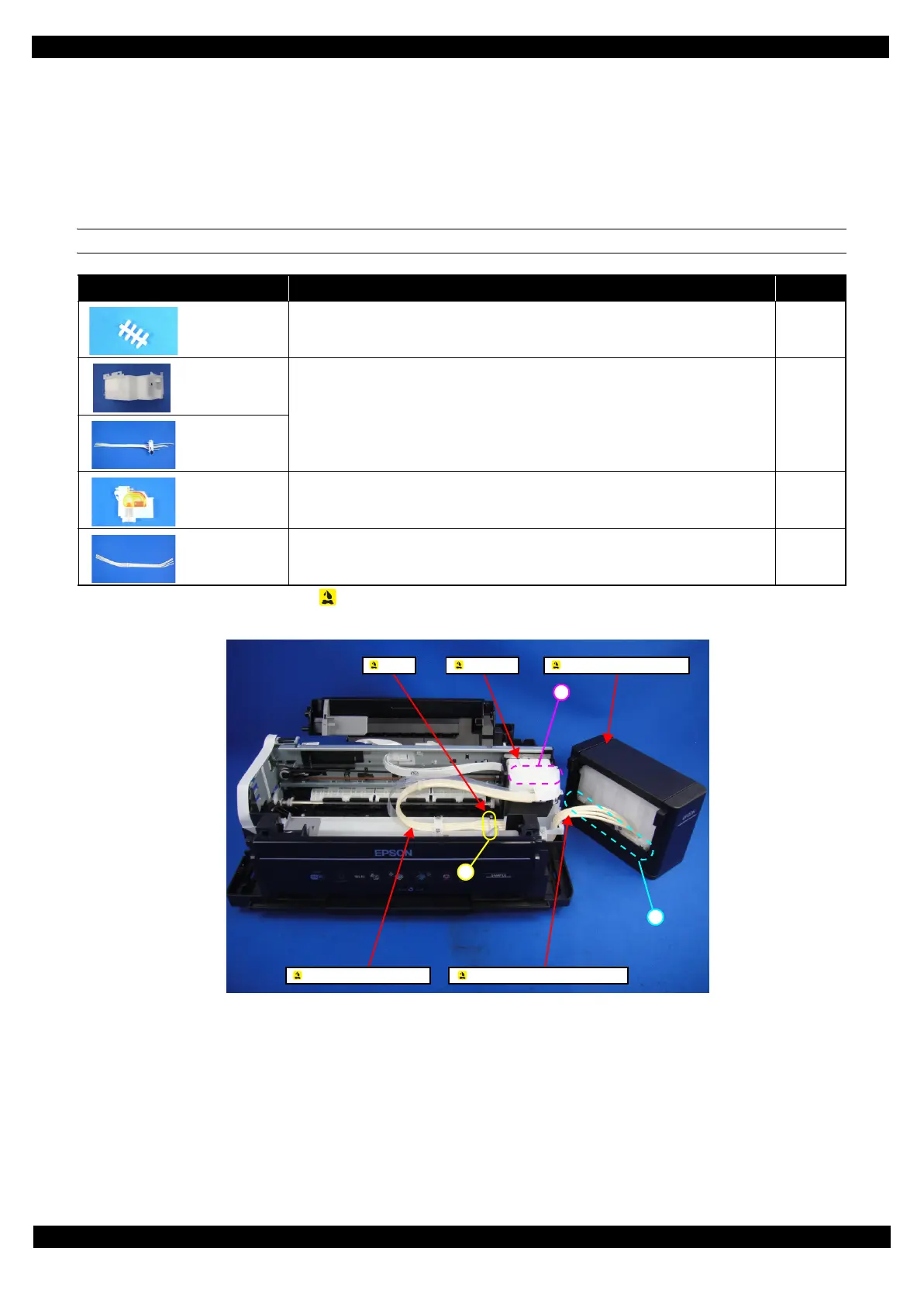

Figure 2-9. Location
Parts When ink may spill Location
Joint Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint A
Ink Supply
Tank
• Removing the tubes of the Ink Supply Tank Tube Assy from the Joint
• Removing the tubes of the Ink Supply Tank Tube Assy from the Ink Supply Tank
A, B
Ink Supply
Tank Tube Assy
Adapter Removing the Ink Supply Tube Assy from the Adapter C
Ink Supply
Tube Assy
• Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint
• Removing the Ink Supply Tube Assy from the Adapter
A, C
A
C
B
Joint Ink Supply Tank Assy
Ink Supply Tank Tube Assy Ink Supply Tube Assy
Adapter

Epson L365 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Scanner type	Flatbed scanner
Scan speed (black)	7.2 ppm
Scan speed (color)	14.3 ppm
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Philippines
Maximum duty cycle	- pages per month
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	30 sheets
Paper tray media types	Envelopes, Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Wi-Fi	Yes
Security algorithms	128-bit WEP, 64-bit WEP, WPA-EAP, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0, Wireless LAN
Sound pressure level (printing)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.3 W
Power consumption (average operating)	11 W
Bundled software	Epson Scan
Product color	Black
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2100 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	50 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	5 pc(s)
Package depth	530 mm
Package width	385 mm
Package height	195 mm
Package weight	6320 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	300 mm
Width	482 mm
Height	145 mm
