Epson L365 Service Manual

Confidential
Disassembly/Reassembly Overview 27
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
MEANS DO TO MINIMIZE THE INK SPILL
Before disassembling, confirm that the printer is in the following condition.
 Adapter is removed
Before disconnecting the joint parts of the ink path, make sure that the Adapter is removed from the Carriage.

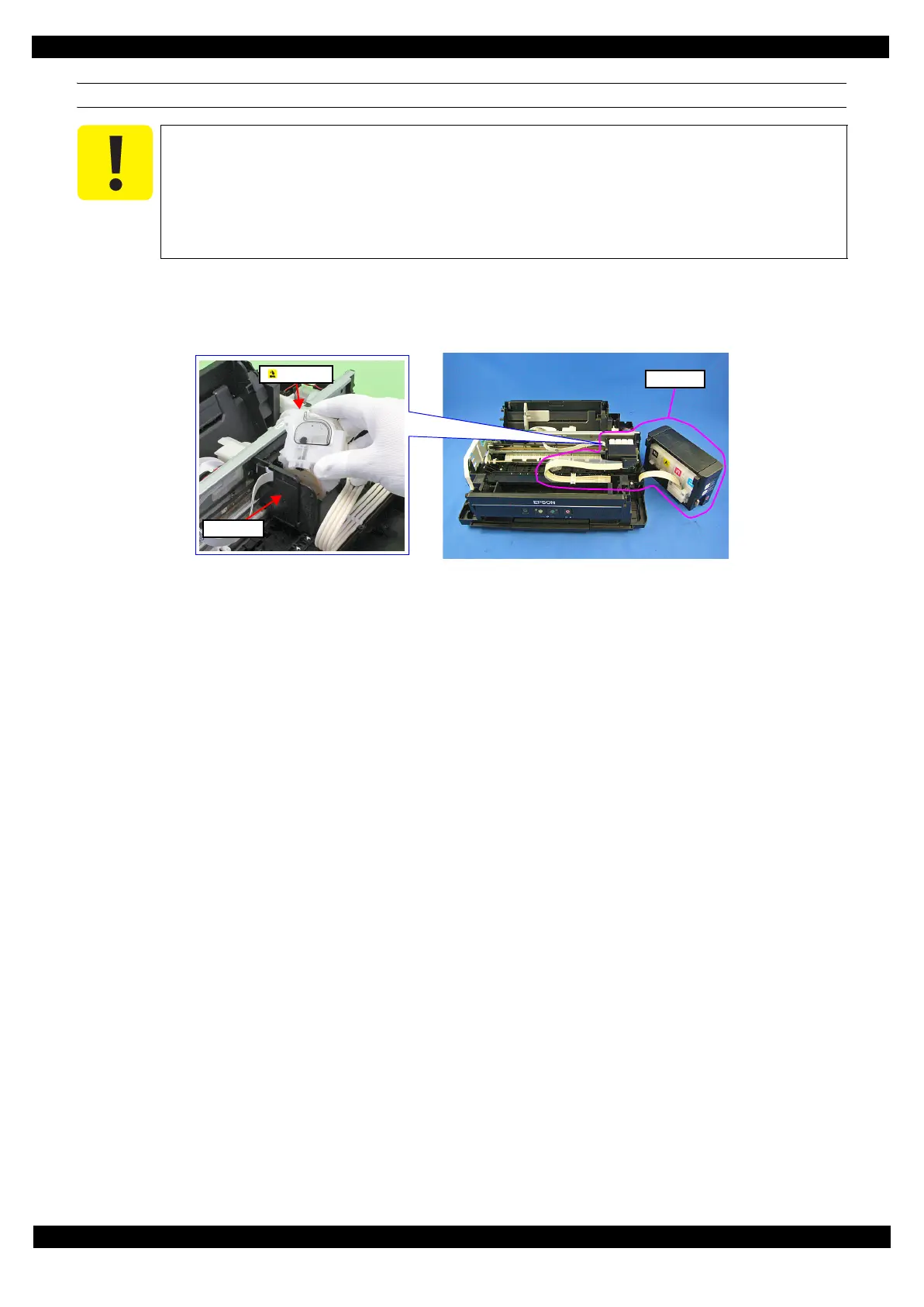

Figure 2-10. Adapter
Even observing the points described in this section, ink may spill in the following situations.
Therefore, be careful not to contaminate the inside of the printer or its surroundings by
preparing the container to receive the leaked ink, or the like.
 When removing the Ink Supply Tank Tube Assy, some ink will spill from both ends of the
tube .
 When removing the Ink Supply Tube Assy, all the ink in the tube will spill.
Carriage
Adapter
Ink path
