Epson L365 Service Manual

L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A

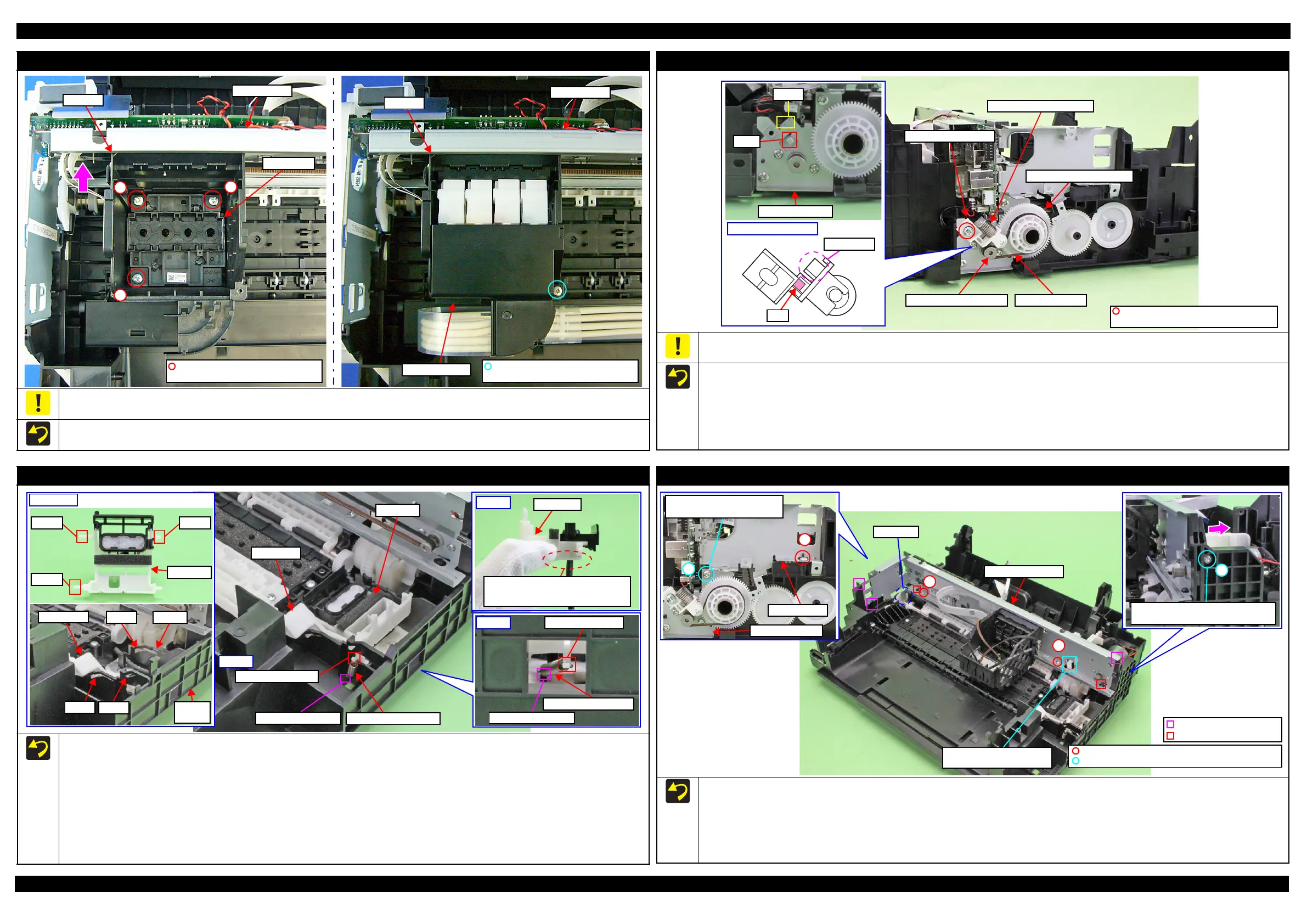

Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 44
Confidential
Printhead/Adapter Cover
When removing/replacing the Printhead or the Adapter Cover, not to apply excessive downward force when tightening the screws. Otherwise, the
Main Frame may be deformed by applying force perpendicularly when tightening the screws and it may affect print quality.
Tighten the screws of the Printhead in the order indicated in the figure above while pressing the Printhead in the direction of the arrow.
2
1
3
Main Frame
Printhead
CR Unit
C.B.P-TITE SCREW 2.5x8 F/ZN-3C
(5 ± 0.5 kgf·cm)
CR Unit
Main Frame
Adapter Cover
C.B.P-TITE SCREW 2.5x8 F/ZN-3C
(6 ± 1 kgf·cm)
PF Driven Pulley Assy / PF Timing Belt
Do not hold the PF Driven Pulley Assy when securing it with the screw in order to prevent applying improper tension to the PF Timing Belt.
When installing the PF Driven Pulley Assy, follow the procedure below.
1. Align the rib of the PF Driven Pulley Assy with the hook of the PF Motor Frame, and install the PF Driven Pulley Assy.
2. Attach the Compression Spring 5.07 to the protrusion of the PF Driven Pulley Assy and the dowel of the PF Motor Frame.
3. Attach the PF Timing Belt in the order of the pinion gear of the PF Motor, PF Driven Pulley and Combination Gear 29.2,42.
4. Rotate the Combination Gear 29.2,42 clockwise three times to confirm the PF Timing Belt is correctly attached, and then secure the PF Driven
Pulley Assy with the screw and washer to the PF Motor Frame.
Pinion gear of PF Motor
Hook
PF Motor Frame
Dowel
Rib
PF Driven Pulley Assy
Protrusion
Compression Spring 5.07
Combination Gear 29.2,42
PF Timing Belt
PF Driven Pulley Assy
C.B.S-TITE(P2) SCREW 3x6 F/ZN-3C
P.W. 3.4x0.43x7 (7 ± 1 kgf·cm)
Cap Lever/Cap Assy
When installing the Cap Lever/Cap Assy, follow the procedure below.
1. Attach the Cap Lever to the Frame Base, and attach one end of the Extension Spring 0.65 to the hook of the Frame Base.
2. Connect the tube of the Pump Unit to the joint on the bottom of the Cap Assy. Then, viewing from the side, confirm the marking (10
± 1 mm
from the tube end) on the tube is covered by the Cap Slider.
3. Insert the shaft A of the Cap Assy through the hole of the Cap Lever to the hole A of the Frame Base.
4. Insert the shaft B of the Cap Assy through the cutout of the Frame Base and to the hole B of the Frame Base.
5. Insert the shaft C of the Cap Assy to the hole C of the Frame Base.
6. Using a “spring hook jig” (p 17), attach the other end of the Extension Spring 0.65 to the hook of the Cap Assy.
7. Attach the Extension Spring 1.329 to the hooks of the Cap Lever and Frame Base.
Cap Lever
Extension Spring 1.329
Cap Assy
Extension Spring 0.65
Hook of Cap Assy
Hook of Frame Base
Step 6
Shaft BShaft A
Shaft C
Cap Assy
Step 2
Make sure the marking (10 ± 1 mm
from the tube end) on the annot be
seen when viewed from the side.
Cap Slider
CutoutHole BCap Lever
Frame
Base
Hole A
Hole C
Step 1, 3-5
Hook of Frame Base
Hook of Cap Lever
Step 7
Main Frame Assy
 Before installing the Main Frame Assy, shift the Change Lever back to the rear.
 When installing the Main Frame Assy, make sure of the following.
• The Change Lever must not interfere with the Main Frame.
• The above shown ribs and grooves, positioning holes and dowels are correctly aligned.
• The section A of the Main Frame Assy is not deformed.
 Tighten the screws in the order indicated in the figure above.
3
5
Align the screw holes of Main
Frame and PF Motor Frame.
PF Motor Frame
Main Frame
4
Tighten screw while pressing Main
Frame in the direction of the arrow.
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1 kgf·cm)
C.B.S-TITE SCREW 3x6 F/ZN-3C (6 ± 1 kgf·cm)
1
2
Main Frame Assy
Change Lever must not
interfere with Main Frame.
Rib and groove
Positioning hole and dowel
Section A

Epson L365 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Scanner type	Flatbed scanner
Scan speed (black)	7.2 ppm
Scan speed (color)	14.3 ppm
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Philippines
Maximum duty cycle	- pages per month
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	30 sheets
Paper tray media types	Envelopes, Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Wi-Fi	Yes
Security algorithms	128-bit WEP, 64-bit WEP, WPA-EAP, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0, Wireless LAN
Sound pressure level (printing)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.3 W
Power consumption (average operating)	11 W
Bundled software	Epson Scan
Product color	Black
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2100 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	50 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	5 pc(s)
Package depth	530 mm
Package width	385 mm
Package height	195 mm
Package weight	6320 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	300 mm
Width	482 mm
Height	145 mm
