Epson L365 Service Manual

L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A

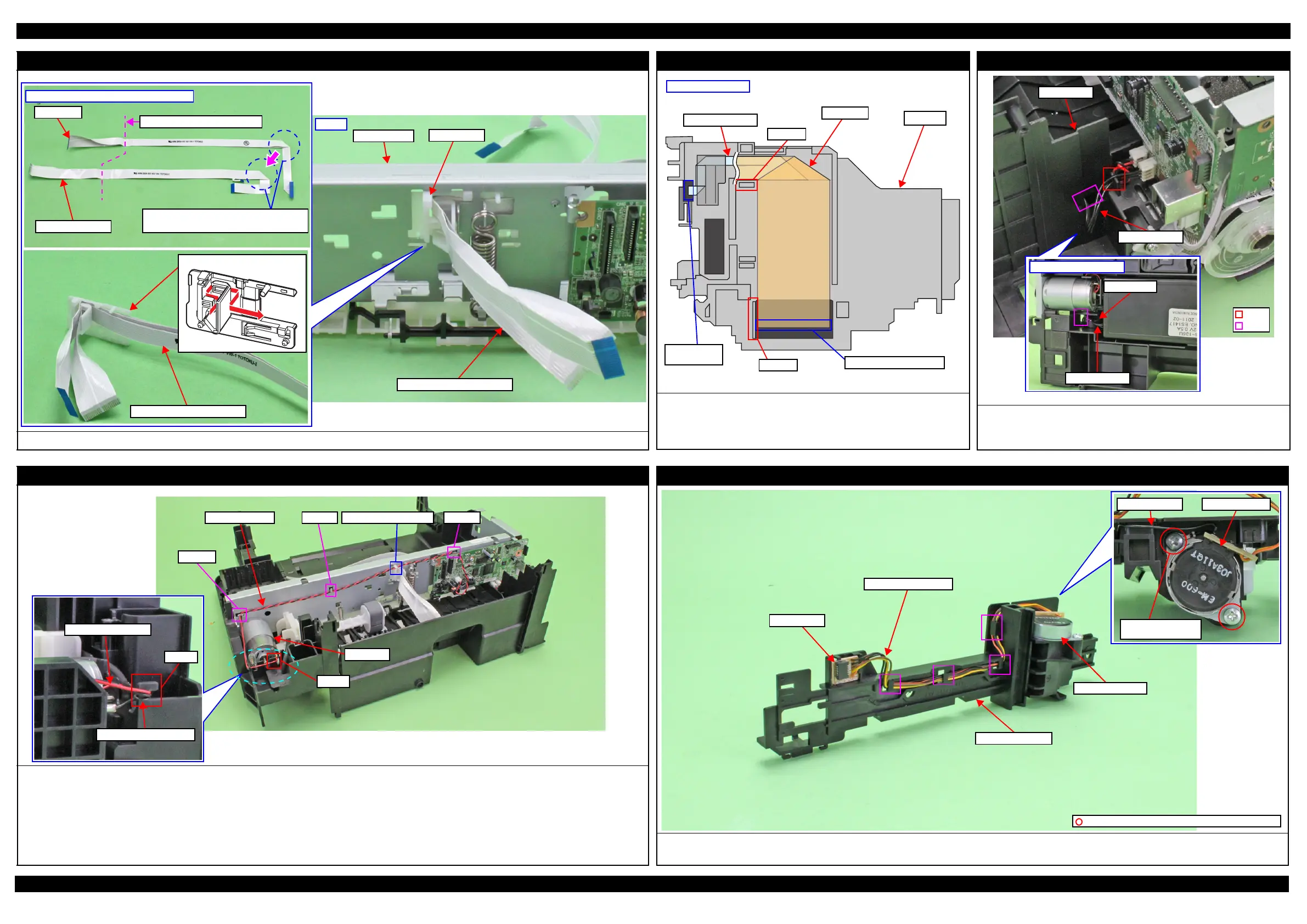

Disassembly/Reassembly Routing FFCs/cables 51
Confidential
Head FFC (Routing on the Main Frame)
Align the Head FFC and CR Encoder FFC, and then route them through the FFC Holder as shown in the figure above.
Aligning Head FFC with CR Encoder FFC
Head FFC
CR Encoder FFC
Stack the Head FFC over the CR Encoder
FFC to keep the Head FFC on top.
Fold here inside FFC Holder
Rear
FFC Holder
Main Frame
FFC Holder
Head FFC/CR Encoder FFC
Head FFC/CR Encoder FFC
Head FFC (Routing on the CR Unit)
 Route the CR Encoder FFC along the Rib A and connect it to the
connector of the CR Encoder.
 Route the Head FFC through the rib B and C, and then connect it to the
connector of the Printhead.
Connector of Printhead
Left side of CR Unit
Connector of
CR Encoder
Rib A
Head FFC
CR Unit
Rib B
CR Encoder FFC
PS Unit
 Pull out the PS Unit cable from the hole of the Frame Base first, and then
route it through the rib of the Frame Base.
 Put the ferrite core into the position shown in the figure above.
Hole
Rib
PS Unit cable
Bottom of Frame Base
PS Unit cable
Ferrite core
Frame Base
CR Motor
Route the CR Motor cable as follows before installing the Shield Plate.
1. Route the CR Motor cable (black) around the rib A of the Frame Base (two turns).
2. Route the CR Motor cable (red) through the rib B of the Frame Base, and then route it through the rib A taking care not to let the CR Motor cable (red)
come over the CR Motor cable (black).
3. Twist the CR Motor cable (black) and CR Motor cable (red) twice, and then route them through the hook C of the Main Frame.
4. Route the CR Motor cable (black) and CR Motor cable (red) in the order of hook D of the Main Frame, groove of the FFC Holder, and hook E of the Main
Frame.
CR Motor
Hook C
Hook EGroove of FFC HolderCR Motor cable Hook D
Rib A
CR Motor cable (black)
CR Motor cable (red)
Rib B
Scanner Motor (L365/L366,L360/L362,L220/L222 Series)
 Route the Scanner Motor cable through the hooks (x4) of the Scanner Motor as shown above.
 Secure the grounding wire of the Relay Board and the Scanner Motor together with the screw as show above.
Relay Board
Scanner Motor cable
C.B.P-TITE SCREW 3x10 F/ZN-3C (5 ± 1 kgf·cm)
Grounding wire
Scanner Motor
Screw it with
grounding terminal
Scanner Motor
Scanner Carriage

Epson L365 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	9.2 ppm
Print speed (color, normal quality, A4/US Letter)	4.5 ppm
Maximum copy resolution	- DPI
Scanner type	Flatbed scanner
Scan speed (black)	7.2 ppm
Scan speed (color)	14.3 ppm
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Philippines
Maximum duty cycle	- pages per month
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	30 sheets
Paper tray media types	Envelopes, Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C6
Maximum ISO A-series paper size	A4
Wi-Fi	Yes
Security algorithms	128-bit WEP, 64-bit WEP, WPA-EAP, WPA-PSK, WPA-TKIP
Standard interfaces	USB 2.0, Wireless LAN
Sound pressure level (printing)	38 dB
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	1.3 W
Power consumption (average operating)	11 W
Bundled software	Epson Scan
Product color	Black
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2100 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	50 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	5 pc(s)
Package depth	530 mm
Package width	385 mm
Package height	195 mm
Package weight	6320 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	300 mm
Width	482 mm
Height	145 mm
