Epson LQ-590II User Manual

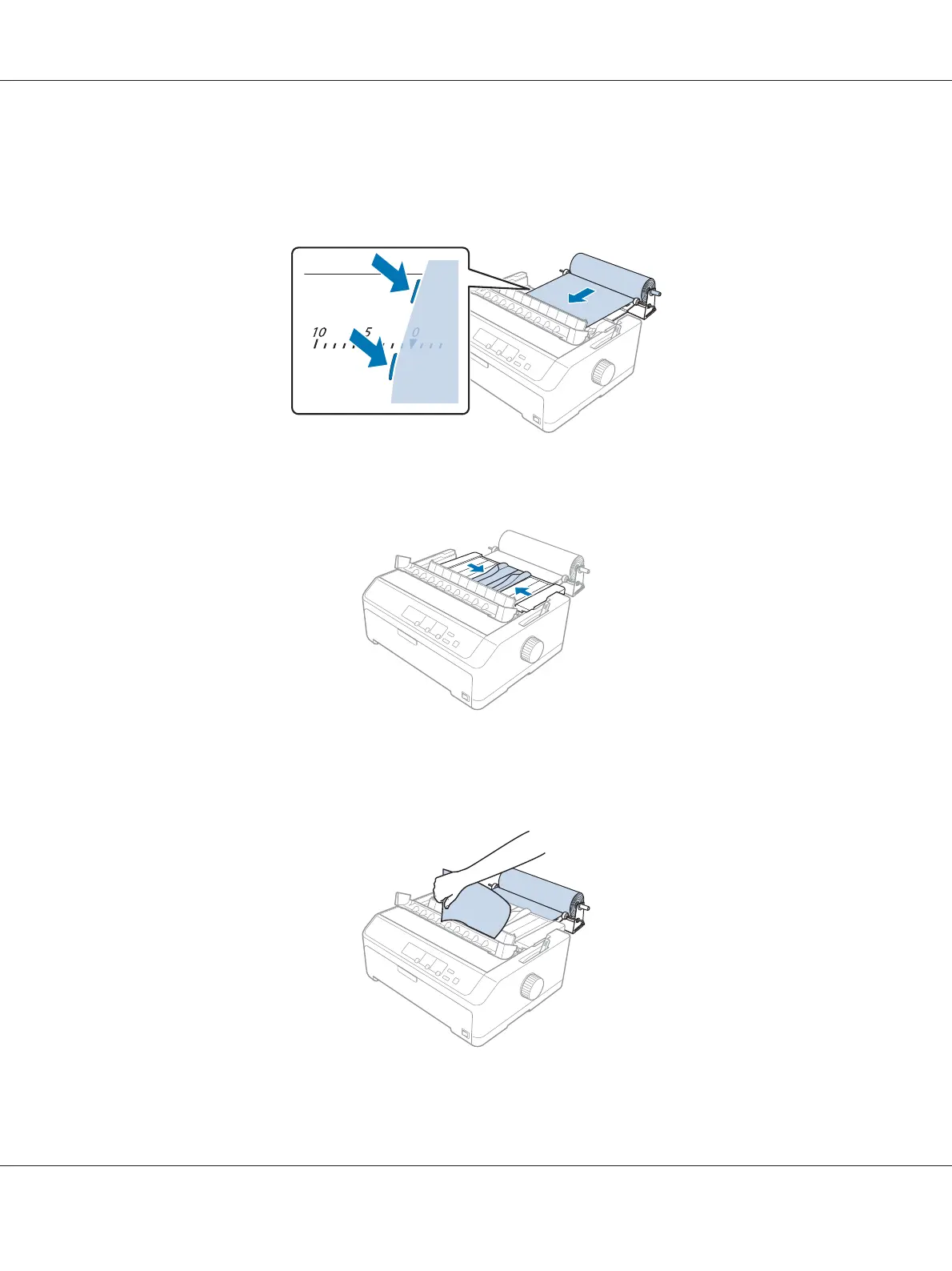

6. Bring the leading edge of the paper up over the rear of the printer making sure that there are no
gaps between the edge of the paper and the lips located 3.0 mm (1.2/10 inches) left of the 0 point of
the scale on the rear of the printer. Insert it into the printer until it meets resistance. The printer
loads the roll paper automatically.
7. Install the sheet guide over the roll paper to separate the printout from the unused paper. Slide the
edge guides to the middle of the sheet guide.
You are now ready to print. When you finish printing, press the LF/FF button to advance the paper;
then tear off the paper using the tear-off edge of the paper tension unit (pull it toward you for a clean
cut).
LQ-590II/LQ-590IIN/LQ-2090II/LQ-2090IIN User’s Guide
Options and Consumables 140

Epson LQ-590II Specifications

General

Mean time between failures (MTBF)	25000 h
Color	-
Character sets	ISO 8859-15, Italic, PC437, PC850, PC858, Roman 8
Built-in barcodes	Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E
Maximum printing width (columns)	80
Standard interfaces	Ethernet, USB 2.0
Continuous paper thickness range	0.065 - 0.49 mm
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Product color	Black
Country of origin	Indonesia
Sound pressure level (printing)	55 dB
Pallet width	800 mm
Pallet height	7430 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	14 pc(s)
Quantity per pallet (UK)	28 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	340 mm
Package width	40 mm
Package height	80 mm
Package weight	9280 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	375 mm
Width	437 mm
Height	177 mm
Weight	7200 g
