Disassembly/Reassembly Disassembly/Reassembly Procedures 39

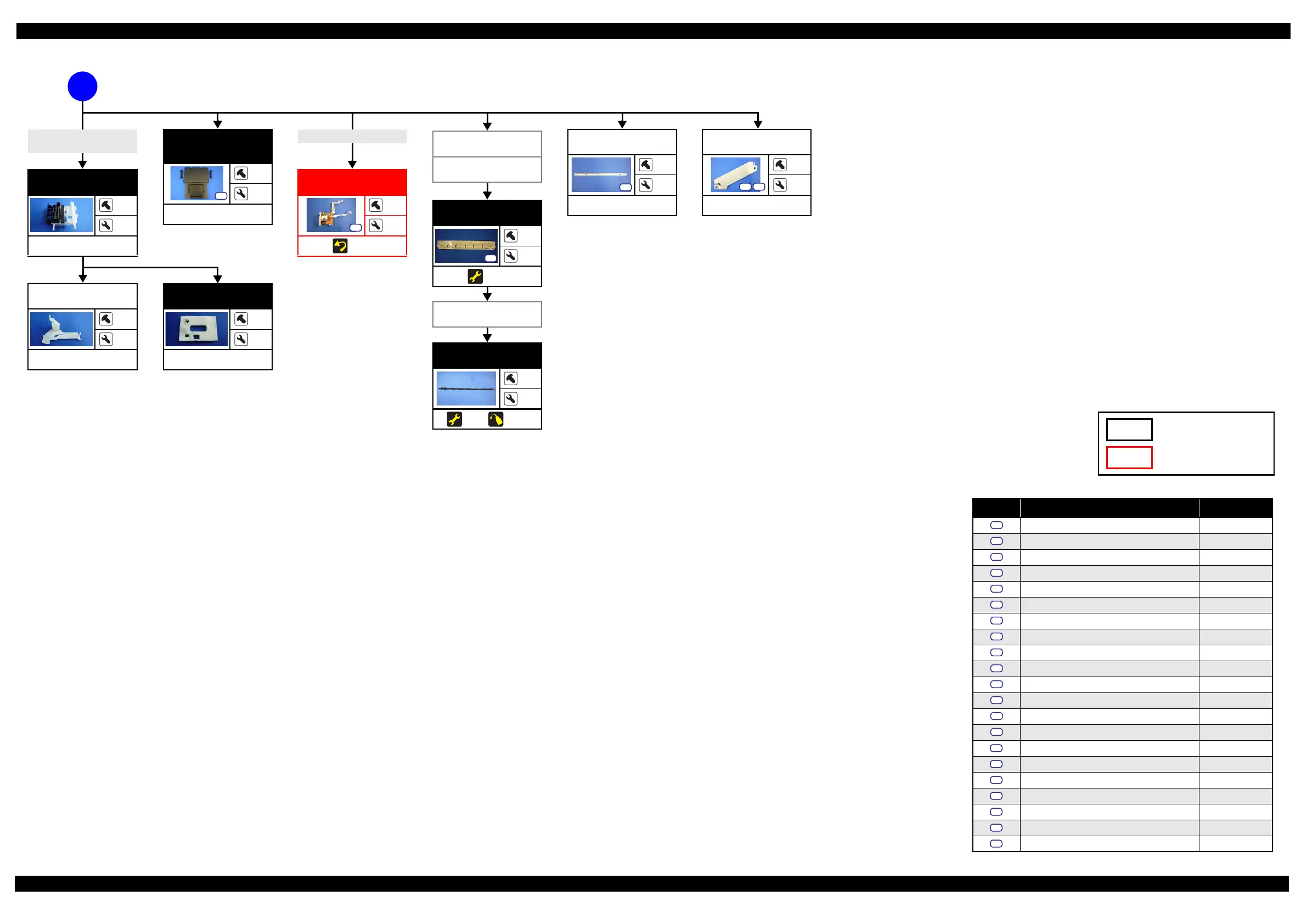

Flowchart 2-3. Singlefunction Printer specific parts (3)
H
(p 37)
Front Tray Assy/
Front Tray Rail
Left/Right
2
4
---
S7
Cap Lever
---
1
---
 Cable (CN14) Extension spring (x2)
 Pump tube
Cap Assy
---
3
---
Porous Pad for
Cap Assy
---
---
---
Ethernet Board
Assy
1
2
(p 50)
S7
Strengthen Plate
Upper
2
2
---
S1 S19
Ink Supply Tube
Guide 1st (p37)
Ink Supply Tube
Guide 2nd (p38)
EJ Roller
---
6
(p 59) (p 73)
Strengthen Plate
Lower
2
3
---
S4
Model-specific parts/unit
Common parts/unit
Screw type/torque list
Symbol Screw Type Torque
C.B.P-TITE (S-P1) SCREW 3x12 F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 2.6x5 F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2
± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 4
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZB-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 6
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 2.5
± 0.5 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 7 ± 1 kgf·cm
C.B.P-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.B.P-TITE SCREW 3x6 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE (P2) SCREW 3x6 F/ZN-3C 7
± 1 kgf·cm
C.B.S-TITE SCREW 2x4 F/ZN-3C 2 ± 0.5 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZB-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 8 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 7
± 1 kgf·cm
C.P-TITE SCREW 3x4 F/ZN-3C 4 ± 1 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZB-3C 6
± 1 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
Star Wheel
Holder Assy
1
2
(p 59)
S7
EJ Roller Gear
(p40)
