Disassembly/Reassembly Disassembly/Reassembly Procedures 31
M200 / M205 / M100 / M105 Series Revision A
2.2 Disassembly/Reassembly Procedures
This section describes procedures for disassembling the parts/units in a flowchart format. For some parts/units,
detailed procedures or precautions are provided (accordingly indicated by icons and cell's color). Refer to the
explanations in the example chart below and perform an appropriate disassembling and assembling procedure.
(See "2.3 Detailed Disassembly/Reassembly Procedure for each Part/Unit (p46)".)
For routing cables, see "2.4 Routing FFCs/cables (p56)".
2.2.1 Configuration
This section describes the configuration of the disassembly flowchart.
The disassembly flowchart is divided into the “Multifunction Printer specific parts”, “Singlefunction Printer
specific parts”, “Common Printer Mechanism”, and the “Unit/Assy”. Each section describes the following
contents.

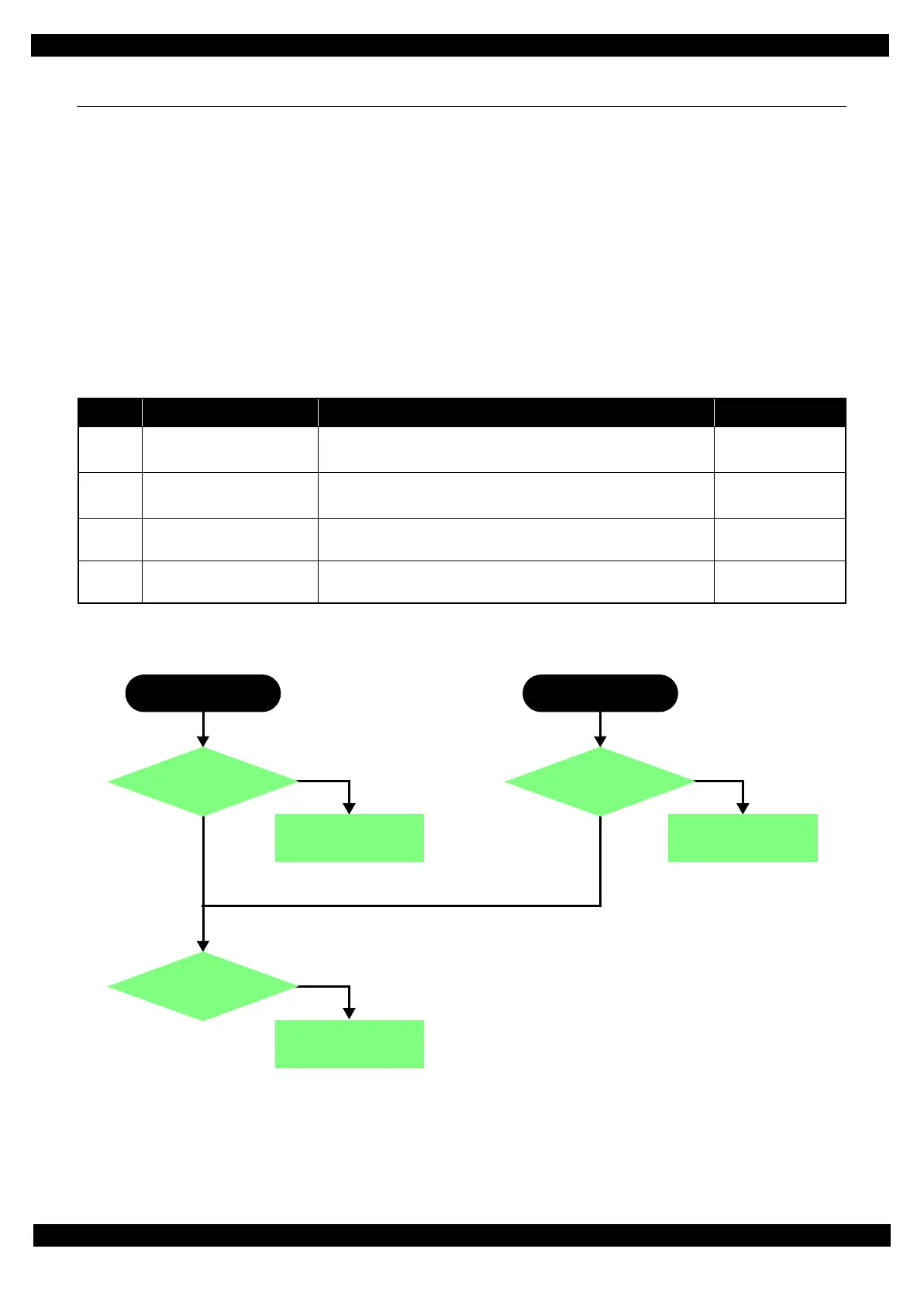

Figure 2-13. Configuration
No. Item Description Compatible Model
2.2.2.1
Multifunction Printer
specific parts
Describes the disassembly flowchart for the Multifunction Printer-
specific parts
M200 Series
M205 Series
2.2.2.2
Singlefunction Printer
specific parts
Describes the disassembly flowchart for the Singlefunction Printer-
specific parts
M100 Series
M105 Series
2.2.2.3
Common Printer
Mechanism
Describes the disassembly flowchart for the Printer Mechanism
common in the Multifunction Printer and Singlefunction Printer
Common to all
models
2.2.2.4 Unit/Assy Describes the disassembly flowchart for the Unit/Assy components
Common to all
models
START
Multifunction Printer
START
Singlefunction Printer
2.2.2.4
Unit/Assy
2.2.2.1
Multifunction Printer
specific parts
2.2.2.3
Common Printer
Mechanism
2.2.2.2
Singlefunction Printer
specific parts
2.2.2.4
Unit/Assy
2.2.2.4
Unit/Assy
