Epson PLQ-20 Setup Guide

8 Setting up the Printer
R4C7290_UK
Setup Guide Rev. D
SETUP.FM A5 size
6/11/04
L
Proof Sign-off:
ABE J. Hashimoto, K.Takehara
T.Takahashi
ABE S.Halvorson

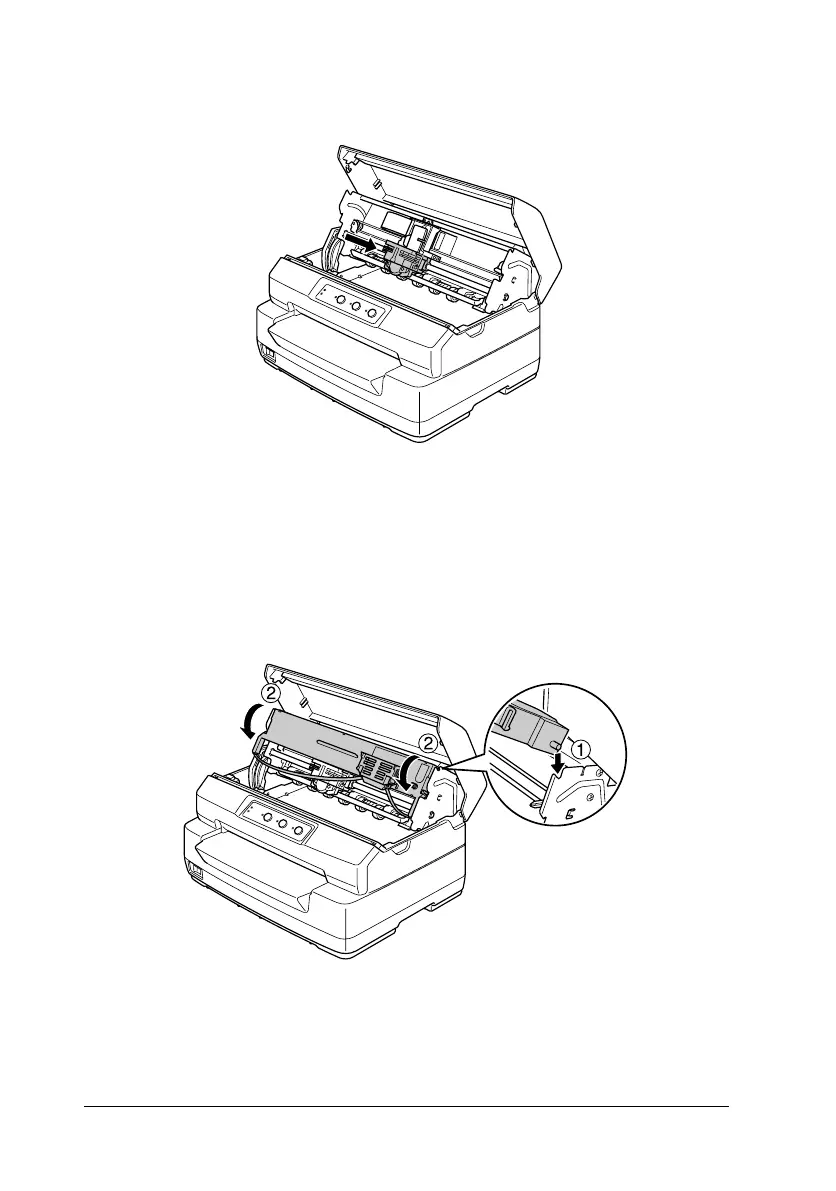

4. Slide the print head to the middle of the printer by hand.
5. Remove the ribbon cartridge from the package.
6. Place the plastic hooks on the ribbon cartridge into the slots
of the printer. Then press both sides of the cartridge until it
clicks into place.

Epson PLQ-20 Specifications

General

Color	Yes
Character sets	ISO 8859-15, PC437, PC850, PC858
Character pitch	10, 12 cpi
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, Industrial 2/5, Interleaved 2/5, UPC-A, UPC-E
Maximum number of copies	7 copies
Maximum print speed (LQ)	144 cps
Maximum print speed (draft)	432 cps
Maximum printing width (columns)	94
Needles	24
Fonts included	PR2: 4LQ & 2 Draft Bitmap, 8 Barcode, ESC/P: 9LQ & 1 Draft Bitmap, 4 Scalable typefaces, 8 Barcode
Print technology	Dot matrix
Connectivity technology	Wired
Print direction	Bi-directional
Ribbon life (black, LQ)	5 million characters
Ribbon life (black, draft)	10 million characters
Mean time between failures (MTBF)	10000 h
Standard interfaces	Parallel, RS-232, USB 2.0
Certification	73/23 EEC, EN60950, EN55022 (CISPR pub.22) class B, AS/NZS 3548 class B, EN55022 class B, EN61000-3-2, EN61000-3-3, EN55024
Product color	Gray
Country of origin	Indonesia
Page description languages	Epson ESC/P2, PPDS
Sound pressure level (printing)	53 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8 W
Power consumption (typical)	60 W
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP
Paper tray media types	Envelopes
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2040 mm
Quantity per pallet	28 pc(s)
Quantity per pallet (UK)	42 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	460 mm
Package width	380 mm
Package height	270 mm
Package weight	9060 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	280 mm
Width	384 mm
Height	203 mm
