1 Mounting bracket holes
2 Rear feet
3 Front adjustable foot
4 Security lock slot
Parent topic: Projector Parts Locations

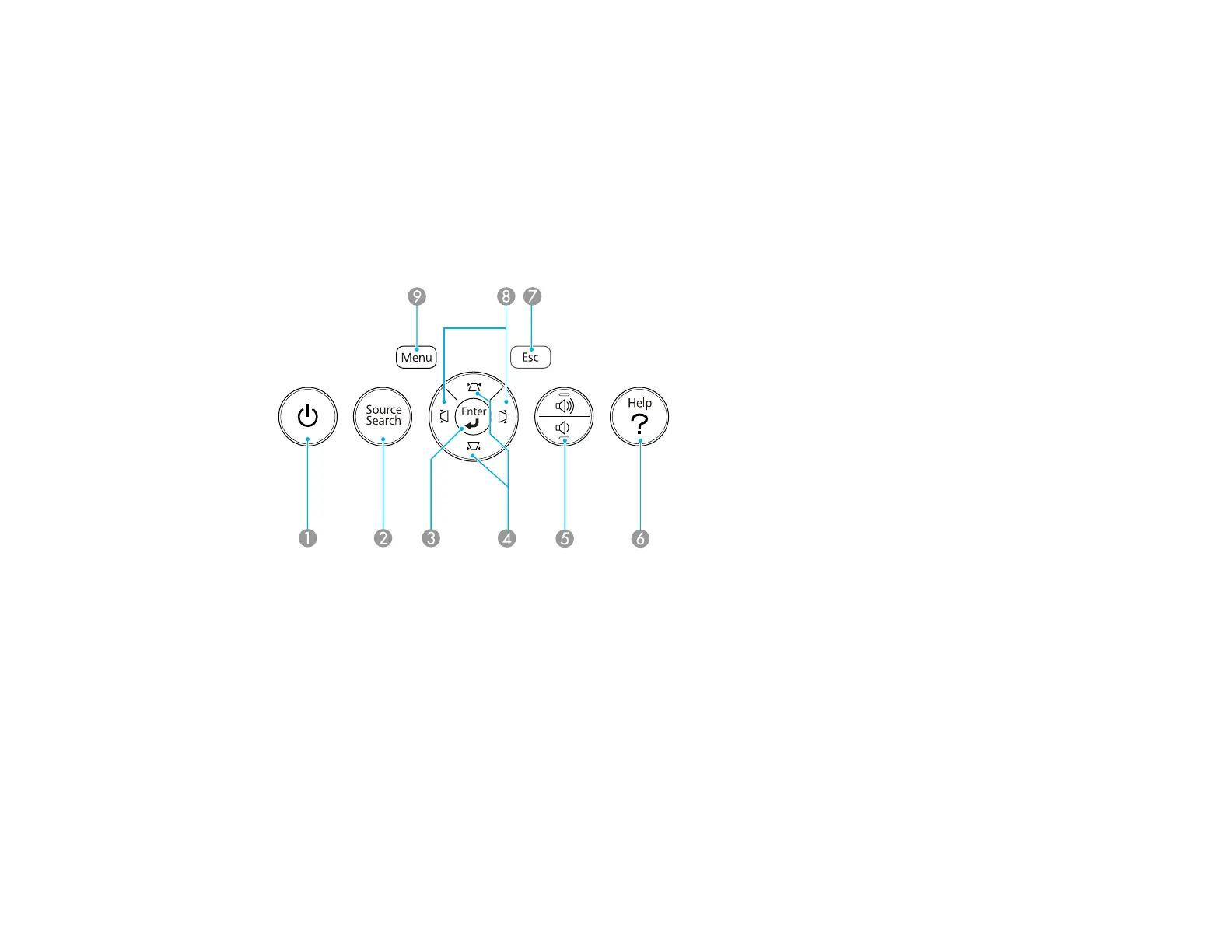

Projector Parts - Control Panel
1 Power button
2 Source Search button (searches for connected video sources)
3 Enter button (selects options)
4 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons
5 Volume adjustment buttons (adjust speaker volume)
6 Help button (accesses projector help information)
7 Esc button (cancels/exits functions)
8 Horizontal keystone adjustment buttons (adjust screen shape) and arrow buttons
9 Menu button (accesses projector menu system)
18
