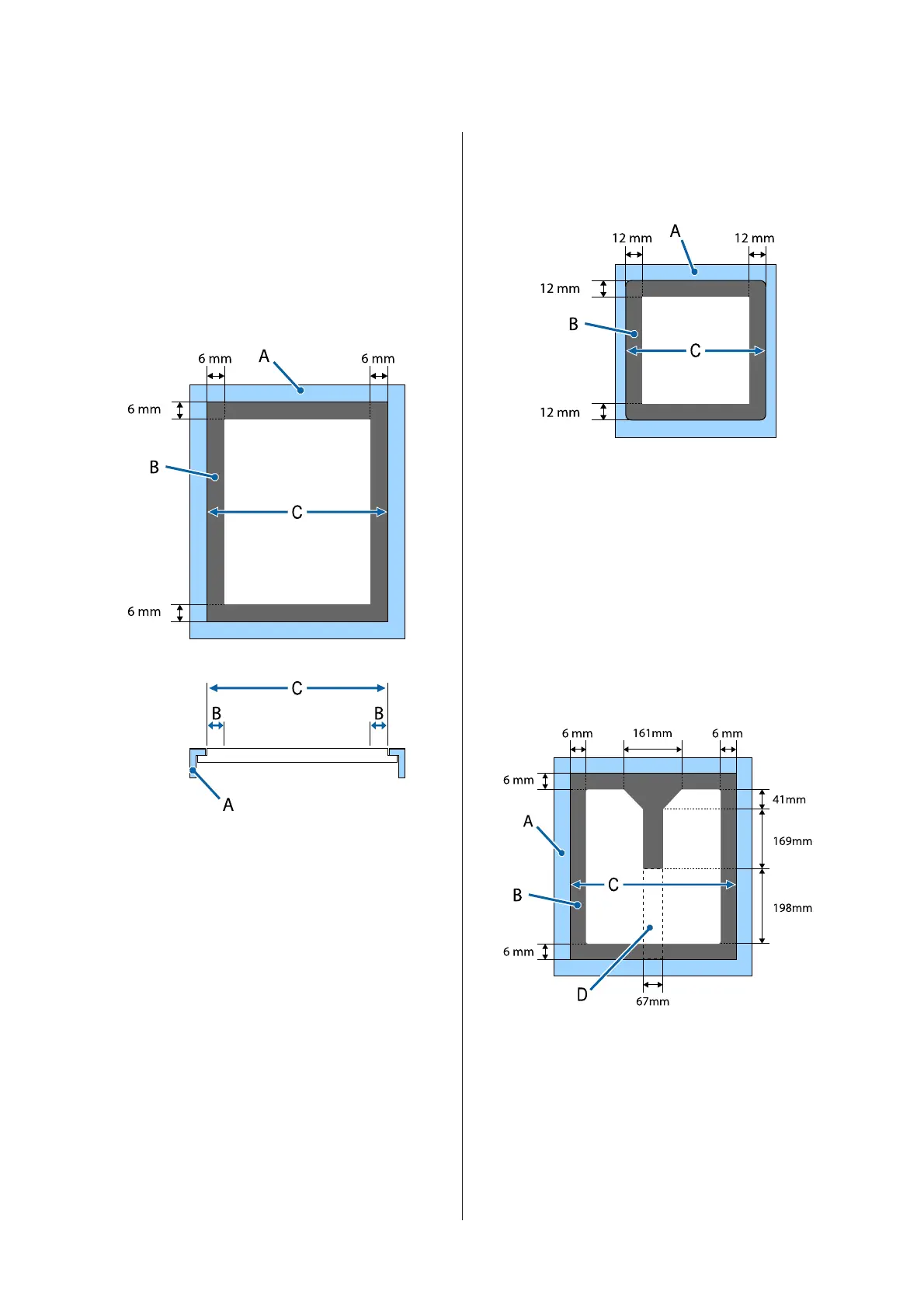

You cannot print on certain areas inside each platen
frame or certain areas from the top, bottom, left, or right
of the edge of the top plate. The areas indicated by A and
B in the following illustration cannot be printed.
L, M, S, and XS size platens
You cannot print on certain areas from the top, bottom,
left, or right of the inside edge of the platen frame or the
raised section (top plate) inside the platen.
A: Platen frame
B: Areas that Cannot be Printed
C: Top plate
Sleeve platen
You cannot print on certain areas from the raised
section inside the platen frame.
A: Platen frame
B: Areas that Cannot be Printed
C: Top plate
Medium grooved platen
You cannot print on certain areas inside the platen
frame and in areas where there is no top plate.
The D section has a square part. When you remove the
square part, you cannot print over this section.
A: Platen frame
B: Areas that Cannot be Printed
C: Top section
D: Square part
SC-F2100 Series User's Guide
Appendix
119
