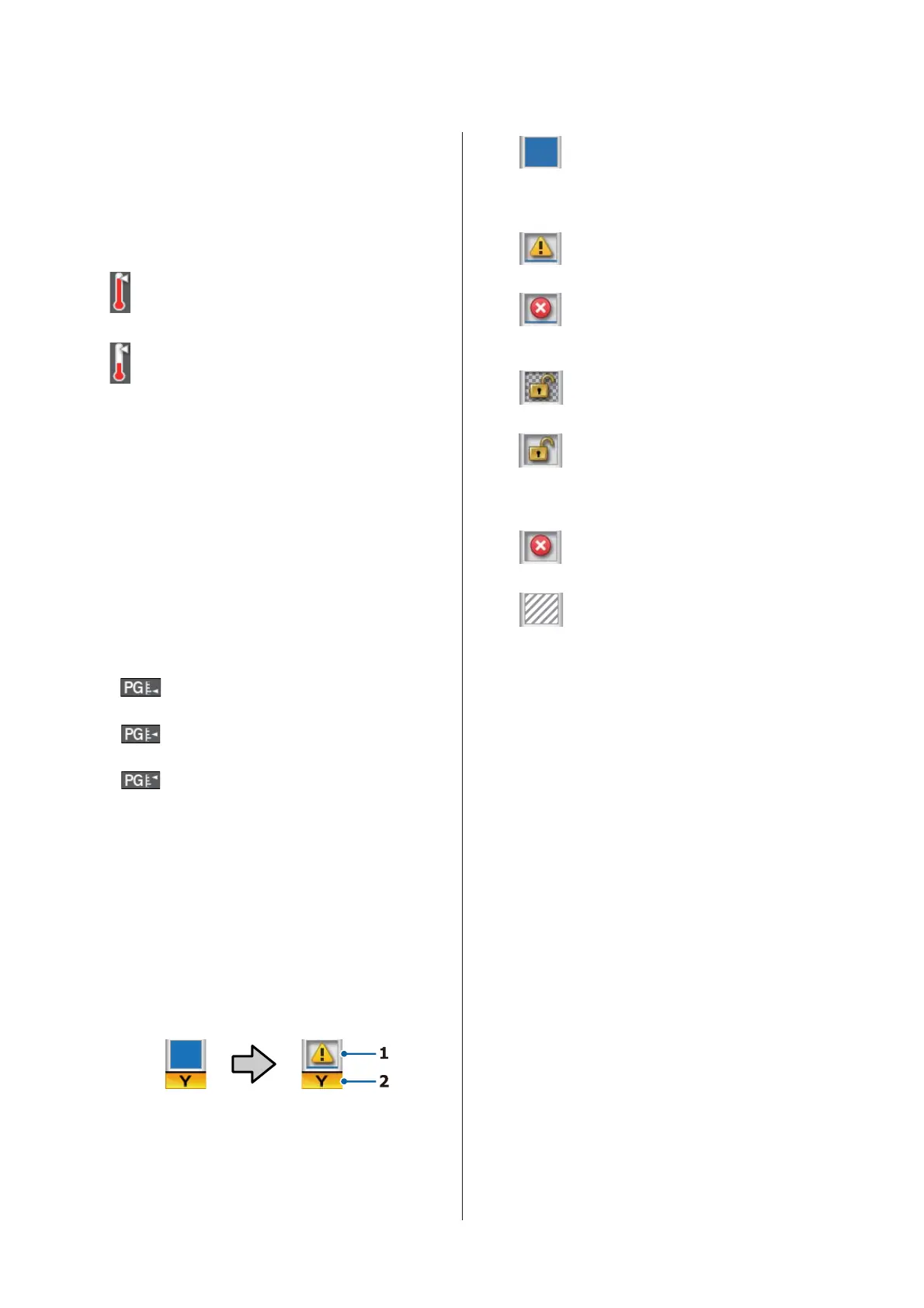

B Heater temperature
From left to right, this display shows the settings for
the pre-heater, platen heater, and after heater. The
thermometer icons give a rough indication of the
current temperatures of the heaters.
: The heater has reached the selected
temperature.
: The heater has not reached the selected
temperature.
C Feed adjustment information during printing
This information is displayed when the adjustment
value is specified during printing.
U “Correcting Banding” on page 55
D Media info
❏ From left to right, this display shows the number for
the selected media, platen gap, media width, and
media remaining.
❏ The selected platen gap is shown as follows.
:1.6
:2.0
:2.5
❏ The media remaining is not displayed if OFF is selected
for Length in the Media Remaining menu.
U “Media Remaining” on page 103
E Status of the ink cartridge/ink supply unit
Displays the approximate level of remaining ink and
the current status. When ink runs low or an error
occurs, the display changes as shown below.
Normal Warning or error
1 Status indicators
These indicate the status of the ink cartridges/ink
supply units, as follows.
: Ready to print. The height of the
indicator changes with the level of ink
remaining in the cartridge/ink supply
unit.
: Ink is low. You need to prepare a new
ink cartridge/ink supply unit.
: The level of ink remaining has reached
the limit. Replace the old ink cartridge/
ink supply unit with a new one.
: The ink cartridge/tray is not locked.
Lock it.
: No ink cartridge/ink supply unit is
inserted. Insert an ink cartridge/ink
supply unit, and then lock the ink
cartridge/tray.
: An error occurred. Check the message
on the screen, and clear the error.
: A cleaning cartridge/cleaning ink
supply unit is inserted. The height of
the indicator changes with the level of
cleaning liquid remaining in the
cartridge/cleaning ink supply unit.
2 Ink color codes
SC-S80600 Series/SC-S80600L Series
OR : Orange
LK : Light Black
BK : Black
C : Cyan
M:Magenta
Y:Yellow
R:Red
LC : Light Cyan
LM : Light Magenta
WH : White
SC-S80600 Series/SC-S80600L Series/SC-S60600 Series/SC-S60600L Series/SC-S40600 Series User's Guide
Introduction
17
