Epson Stylus Photo TX720WD User Manual

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
DISASSEMBLY/ASSEMBLY Disassembly Procedures 115
Confidential
4.2.3.5 Upper Housing
 Parts/Components need to be removed in advance:
ADF Unit/Scanner Unit/Upper Left Housing/Paper Guide Top Assy
 Removal procedure
1. Remove the screw (x1) and release the grounding wire.

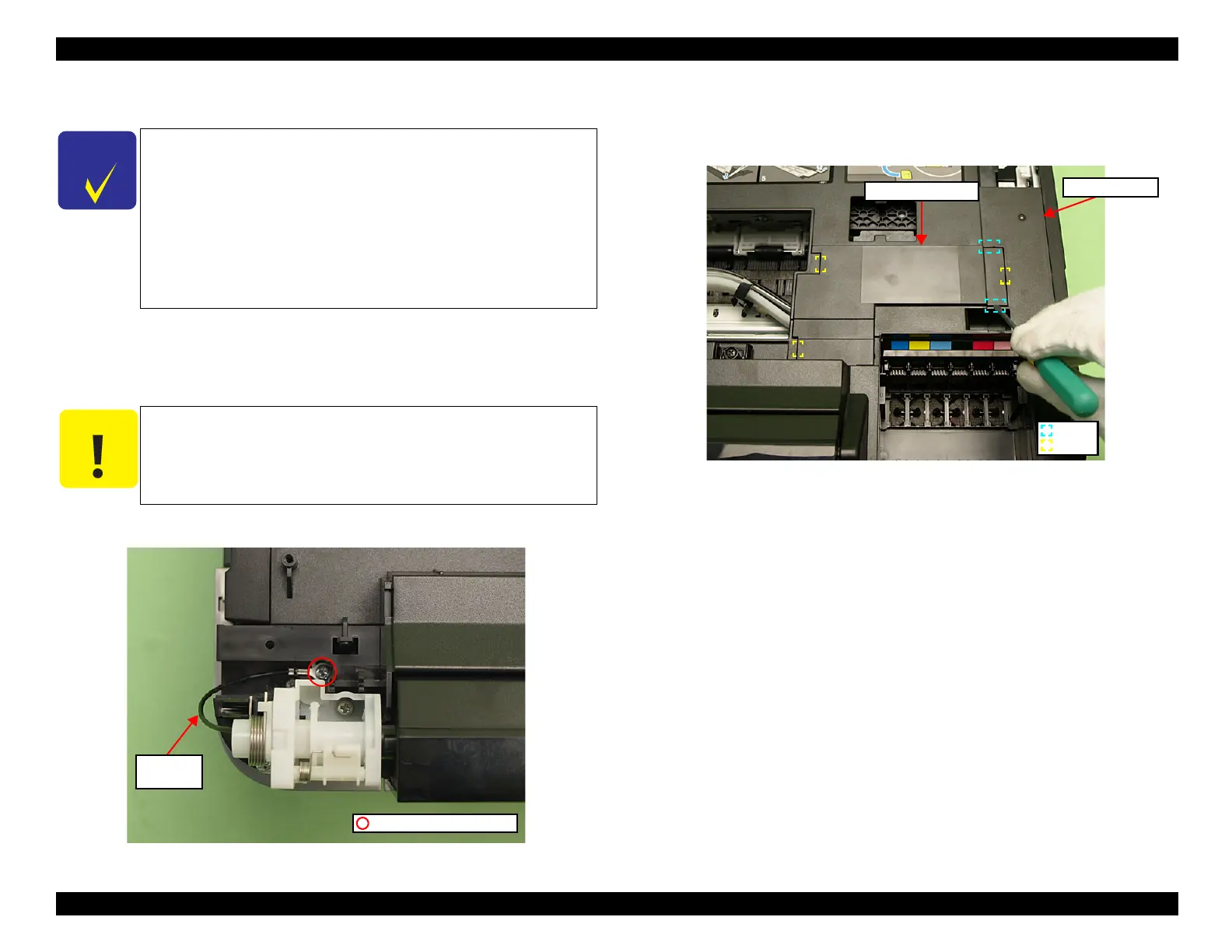

Figure 4-16. Releasing the Grounding Wire
2. Release the hooks (x2) and ribs (x3) of the Front Harness Cover with the
flathead screwdriver, and remove the Front Harness Cover from the Upper
Housing.
Figure 4-17. Removing the Upper Housing (1)
C H E C K
P O I N T
The disassembly/reassembly procedures for Artisan 837/710/725/
730/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/
PX730WD/TX730WD differ from those for Artisan 810/835/
PX810FW/TX810FW/PX820FWD/TX820FWD. See below for the
procedures.
 Artisan 710/PX710W/TX710W: 4.3.1.3 Upper Housing (p.182)
 Artisan 725/PX720WD/TX720WD: 8.3.2.2 Upper Housing (p.266)
 Artisan 837/PX830FWD: 9.4.2.2 Upper Housing (p.294)
 Artisan 730/PX730WD/TX730WD: 9.4.2.17 Upper Housing (p.309)
C A U T I O N
The grounding wire is attached to the frame with a screw. Be
careful not to deform the Frame when removing the screw.
C.B.S. 3x6 (8±1Kgfcm)
Grounding
wire
Upper Housing
Hook
Rib
Front Harness Cover
