2

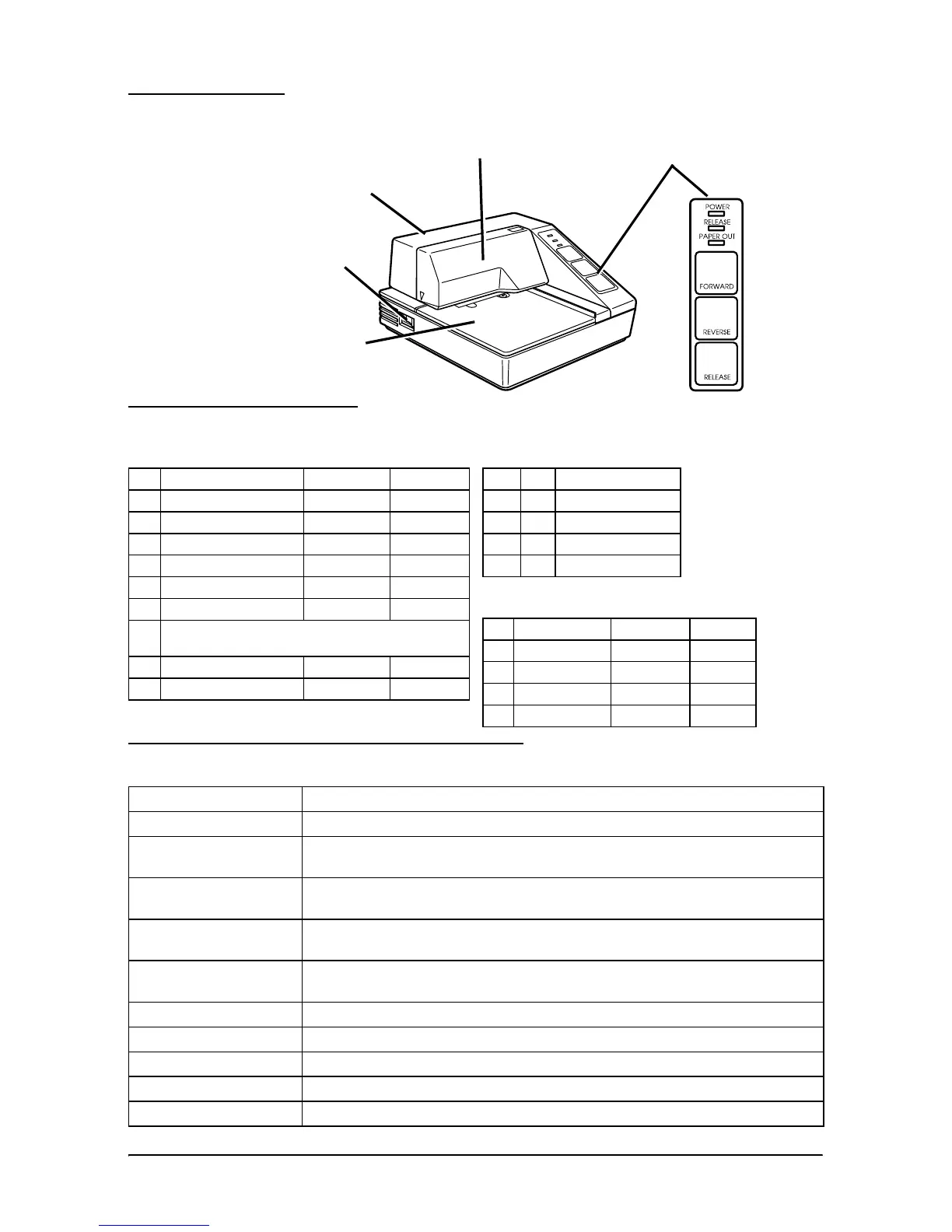

Printer Parts
DIP Switch Tables
TM-U295/U295P Specifications
3 upper case
5 control panel
4 printer cover
1 document table
2 POWER switch
Serial interface
SW Function ON OFF
1 Data receive error Ignored Prints “?”
2 Receive buffer 35 bytes 512 bytes
3 Handshaking XON/XOFF DTR/DSR
4 Data word length 7 bits 8 bits
5 Parity check Yes No
6 Parity selection Even Odd
7, 8 Transmission speed
(See Serial transmision speed table.)
9 Pin 6 reset Used Not used
10 Pin 25 reset Used Not used
Serial transmission speed
8 7 Transmission speed
ON ON 1200 bps
ON OFF 2400 bps
OFF ON 4800 bps
OFF OFF 9600 bps
Parallel interface
SW Function ON OFF
1 Auto line feed Enabled Disabled
2 Receive buffer 35 bytes 512 bytes
3~9 Undefined — —
10 Internal use Fixed to ON
Printing method Impact dot matrix, 7-pin shuttle type
Printing direction Unidirectional
Characters per line
(default)
5 7 font: 35; 7 7 font: 42
Character matrix 5 7 with 1-dot spacing (normal dots)
7 7 with 3-dot spacing (half dots)
Character size 5 7 font: 1.6 2.9 mm {0.063 0.114"}
7 7 font: 1.3 2.9 mm {0.051 0.114"}
Number of characters Alphanumeric characters: 95; International characters: 32
Extended graphics: 128 4
Print speed 1.9 to 2.3/lines/sec. (both 5 7 and 7 7 fonts)
Paper feed speed Approx. 12.5 lines/second (52.9 mm/second {2.1"/second})
Line spacing (default) 4.23 mm {1/6"}
Paper types Normal, pressure-sensitive, and carbon-copy
Paper size 80 69 mm {3.15 2.72"} (W L) to182 257 mm {7.17 10.12"} (W L)
