Epson VS230 User Guide

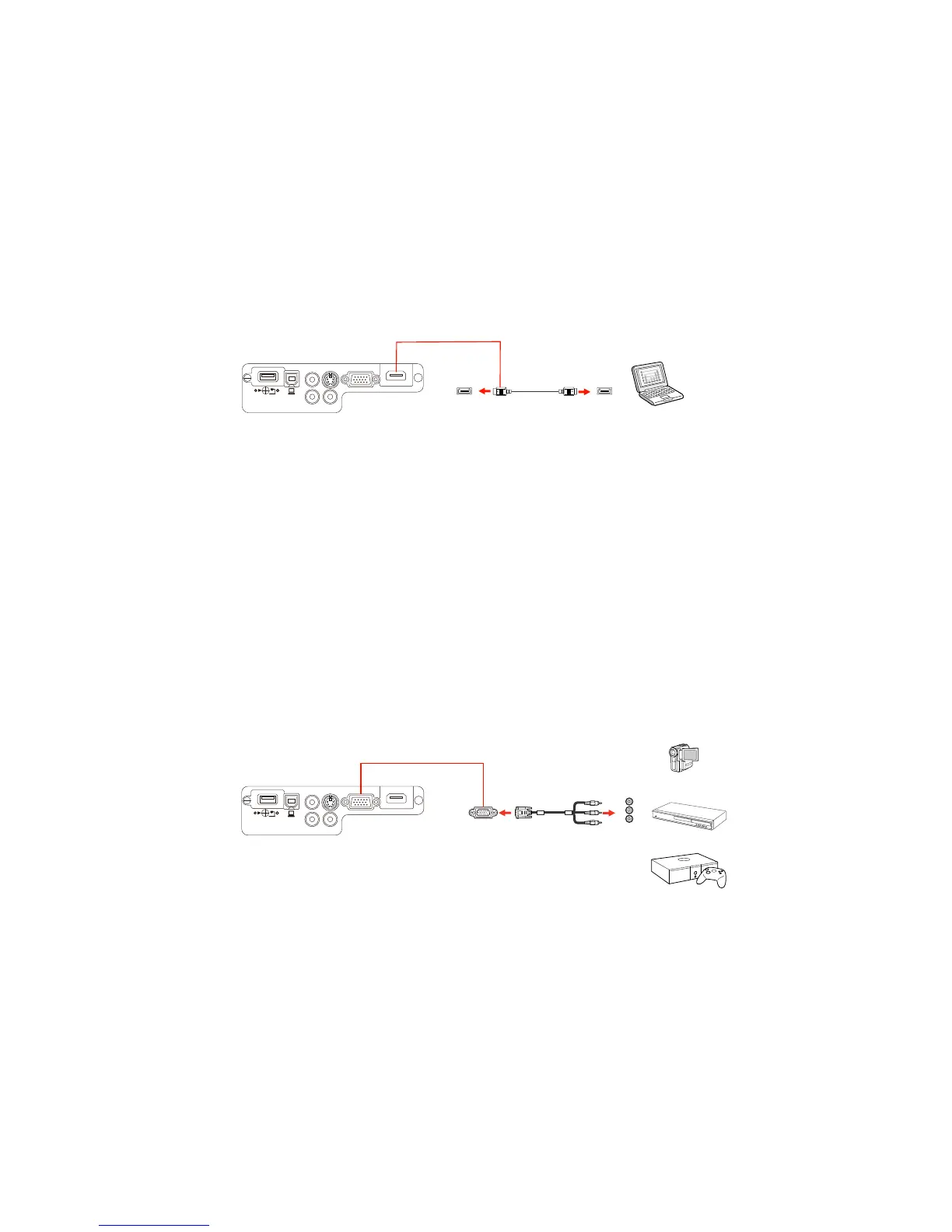

2. Connect the other end to the projector's HDMI port.
Note: The projector converts the digital audio signal sent from your video source into a mono analog
signal for the internal speaker.
Note: If you connected a game console, it may take a few seconds for your image to appear when you
switch to the game console's input source. To reduce the potential lag in response time to game
commands, set your game console's output format to a progressive signal of 480p or 720p. See your
game console documentation for instructions.
Parent topic: Connecting to Video Sources
Connecting to a Component-to-VGA Video Source
If your video source has component video ports, you can connect it to the projector using an optional
component-to-VGA video cable. Depending on your component ports, you may need to use an adapter
cable along with a component video cable.
1. Connect the component connectors to your video source's color-coded component video output
ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors
to your component video cable.
2. Connect the VGA connector to a Computer port on the projector.

Epson VS230 Specifications

General

Matrix type	3-panel (p-Si TFT active)
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	0.75 - 8.89 m
Projection technology	3LCD
Contrast ratio (typical)	10000:1
Screen size compatibility	30 - 350 \
Projection distance (tele)	8.89 - 8.89 m
Projection distance (wide)	0.75 - 0.75 m
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-30 - 30 °
Focus	Manual
Throw ratio	1.45 - 1.96:1
Focal length range	16.77 - 16.77 mm
Aperture range (F-F)	1.44 - 1.44
Lamp type	UHE
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 640 x 480 (VGA)
USB 2.0 ports quantity	2
Component video (YPbPr/YCbCr) in	0
HDCP	-
Noise level	37 dB
Noise level (economic mode)	29 dB
RMS rated power	2 W
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	283 W
Power consumption (economy mode)	207 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	228.6 mm
Width	294.64 mm
Height	76.2 mm
Weight	2313.32 g
