21
3 Front cover (A)
Parent topic: Product Parts Locations

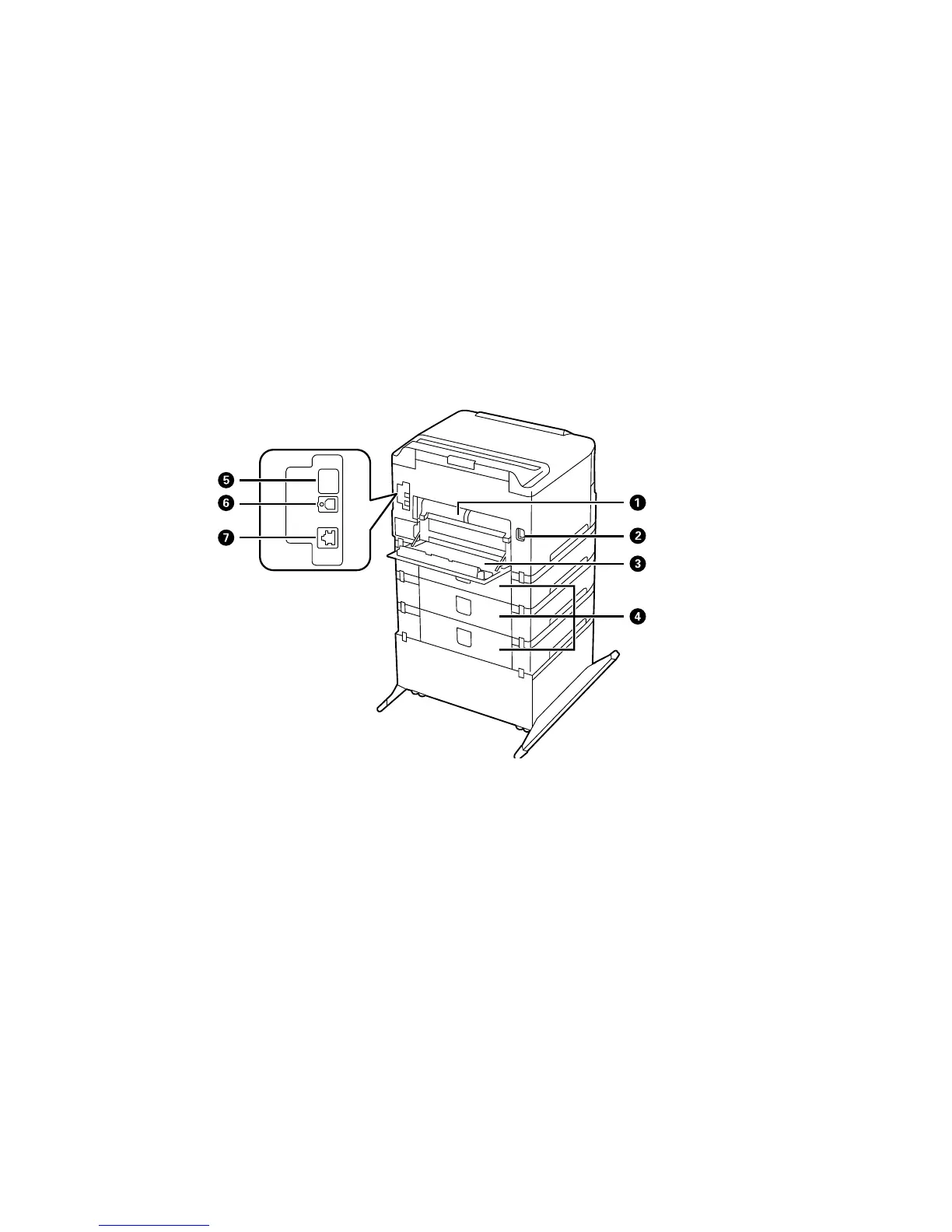

Product Parts - Back
1 Rear cover 2 (D2)
2 AC inlet
3 Rear cover 1 (D1)
4 Rear cover (E)
5 Service USB port (do not remove sticker)
