Hidden Pages for QX Advanced Configuration
received signal level is lower than the specified threshold (Receive Energy) for the specified
length of time (Process Saturation) and these conditions hold true for the specified
number of times (Pattern Count). Note that the higher the Transmit Energy level and the
lower the Receive Energy level, the stricter the conditions for switching the canceller off.
To modify the settings of an ISDN (or E1/T1) trunk, click on the link associated with the trunk. This
will open the Trunk – Echo page for the corresponding trunk (see):

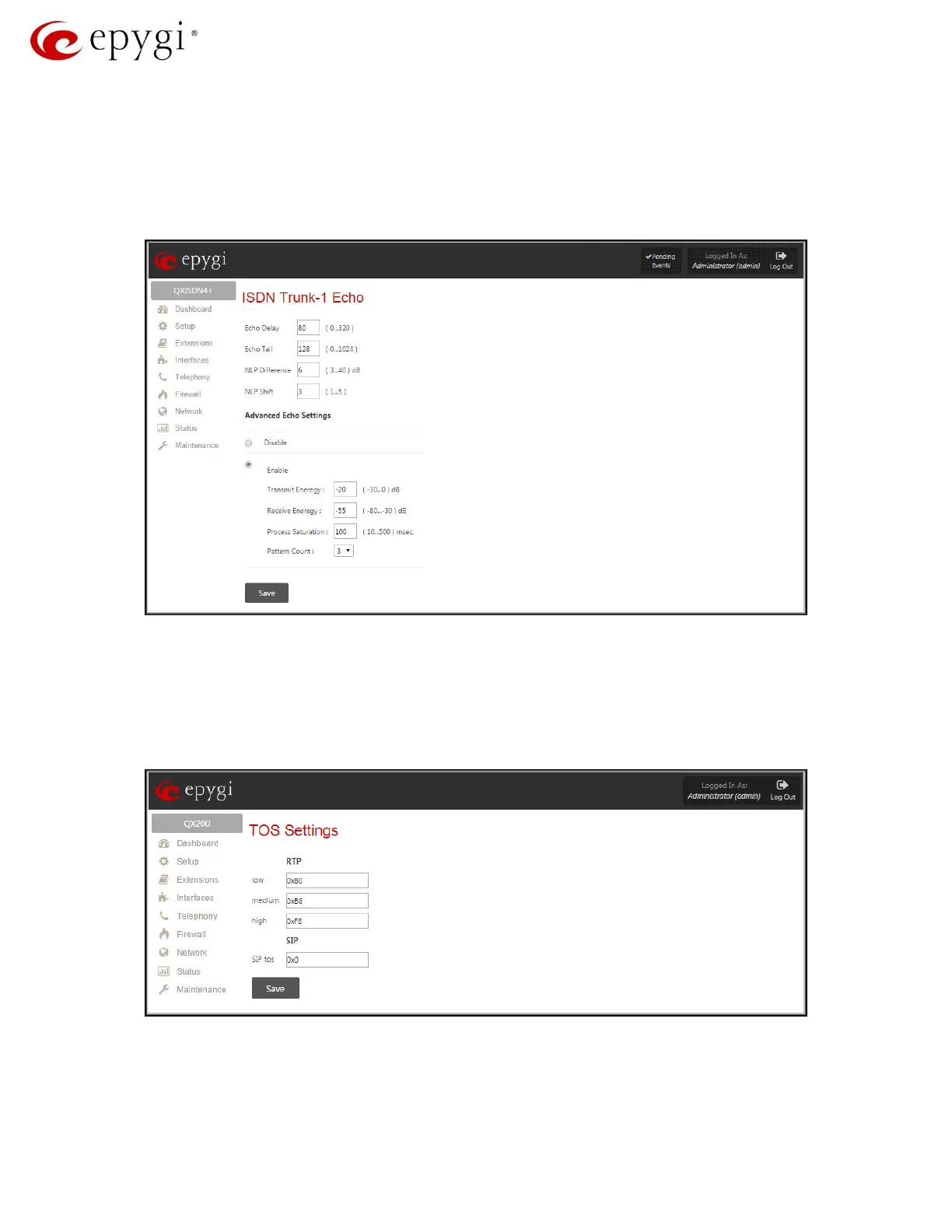

Figure 19: Configuring Echo Settings of ISDN Trunk-1
3.14 Tos
The TOS Settings page allows specifying the value for the Type of Service setting (ToS) for SIP and
RTP packets (see Figure 20). The ToS setting is used in IP packets to notify routers how to handle
the packet (precedence, delay, reliability, etc.).
Figure 20: TOS Settings page
• low, medium, high: Values for the ToS setting for low, medium and high priority RTP packets
respectively. The priority level of RTP is chosen from the Users
Extension ManagementEdit
Entry page for the selected extension (see
Figure 21).
• SIP tos: The ToS value for SIP packets.
Revision 1.0 22 20-Feb-15
