3. How To Set The Unit

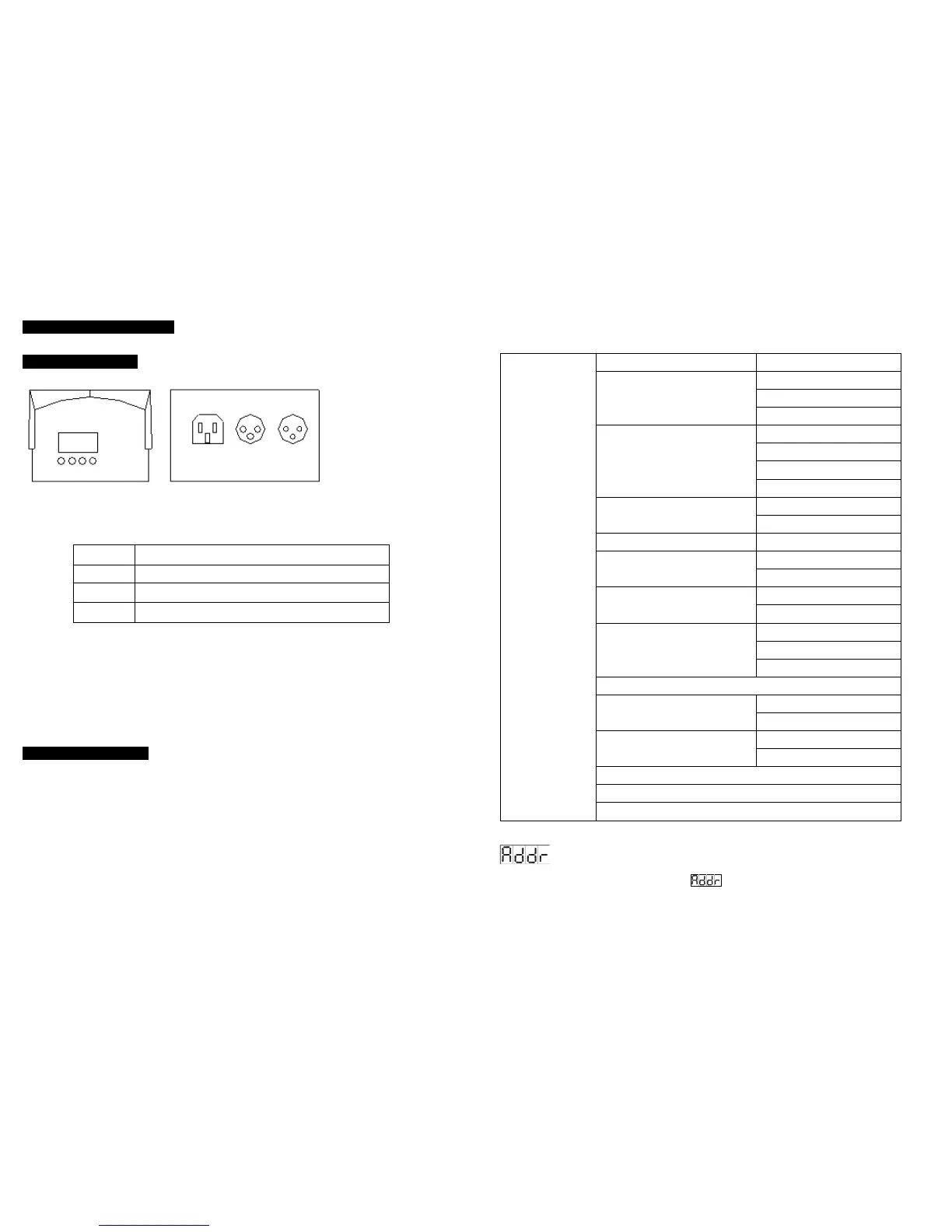

3.1 Control panel
Display
Shows the various menus and selected functions
Button
MENU
Selects the programming functions
DOWN
To go backward in the selected functions
UP
To go forward in the selected functions
ENTER
Confirms the selected functions
Mains input
Connection to the power supply.
DMX input/output
For DMX-512 linking. Use a 3-pin XLR cables to link to the controller or to
other units.
3.2 Main Functions
To select any of the given functions, press the MENU button up to where
the required function is showing on the display. Select the function by
pressing the ENTER button and the display will blink. Use the DOWN and
UP buttons to change the mode. Once the required mode has been
selected, press the ENTER button to confirm. To go back to the functions
without any changes, press the MENU button again. Press and hold the
MENU button for one second or wait for one minute to go back to the main
menu.
The main functions are as below:
Menu
ADDR
001-512
SLND
SL1
SL2
MAST
SHND
SH1
SH2
SH3
SH4
SOUN
ON
OFF
SENS
000-255
BLND
YES
NO
LED
ON
OFF
BALA
RED
GREEN
BLUE
DISP→INVERT
PAN INVERT
YES
NO
TILT INVERT
YES
NO
TEST
VER
REST
DMX Address Setting
Press the MENU button to select . Press the ENTER button and the
display will blink. Use the DOWN and UP buttons to choose the address
