Erbauer ECSP41 - Page 20

20
ECSP41
Getting Started . . .
Before you start

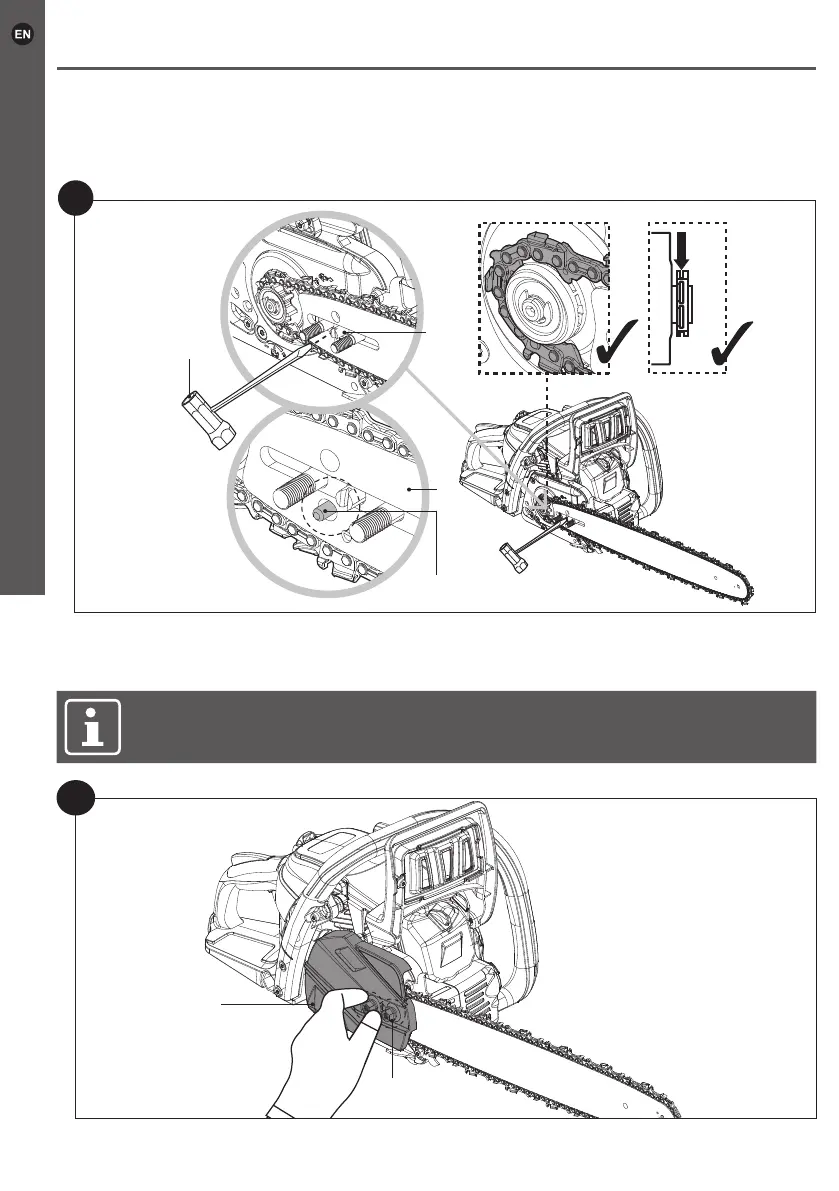

8. Align the tension adjuster pin with the lower hole on the guide bar (2) by turning the
chain tension screw (21) clockwise or anti-clockwise with the multi-tool (24) (Fig. 5).
5
21
24
Tension adjuster pin
2
9. Ret the clutch cover (20). Tighten the xing nuts (19) nger tight only at this stage
(Fig. 6).
NOTE: The chain tension cannot be adjusted with the xing nuts (19) fully
tightened.
6
19
20
