Erbauer ECSP51 - Page 19

19
ECSP51
Getting Started . . .

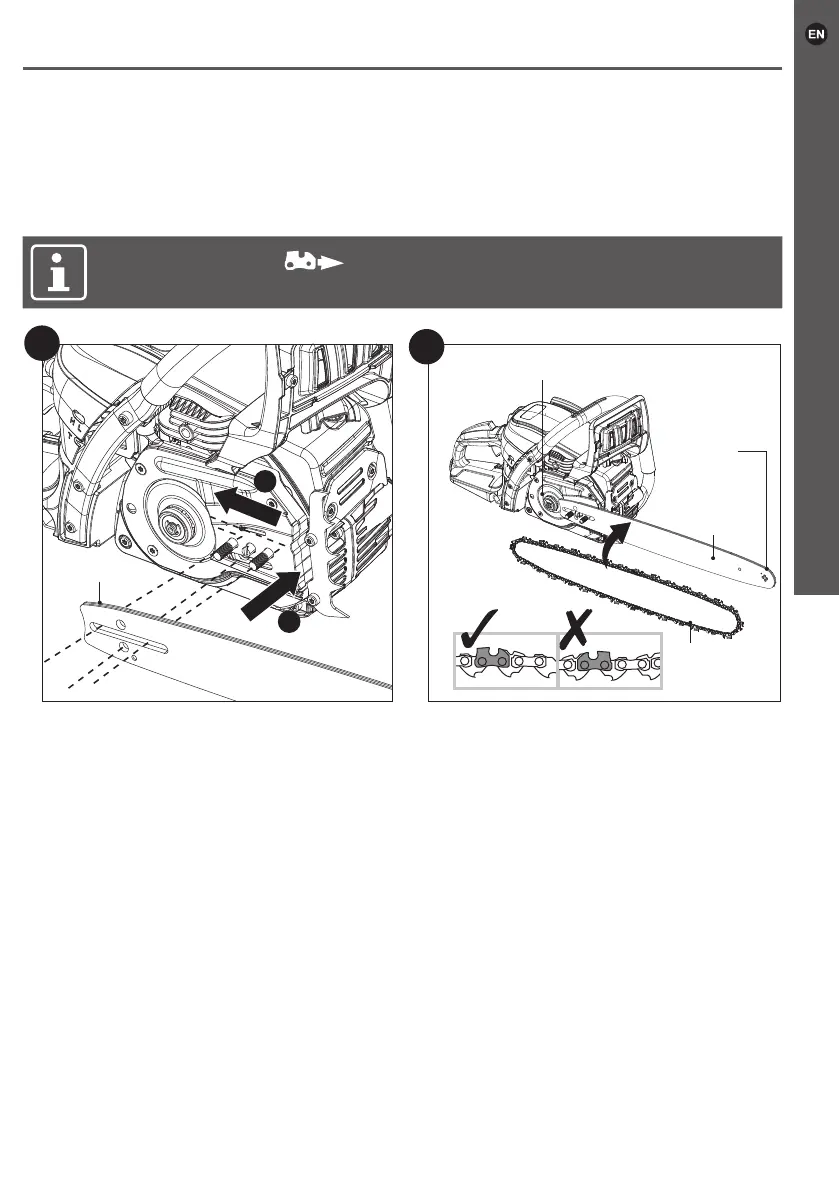

3. Place the slot on the guide bar (2) over the 2 bolts (step 1, Fig. 3).
4. Push the guide bar (2) to the left towards the drive sprocket (step 2, Fig. 3).
5. Place the saw chain (3) over the drive sprocket and t around the nose sprocket at
the tip of the guide bar (2) in the correct direction (Fig. 4).
NOTE: This symbol indicates the direction which the saw chain (3)
runs. Fit the saw chain (3) in the correct direction (Fig. 4)
3
1
2
2
4
Drive sprocket
2
3
Nose
sprocket
6. Pull the guide bar carefully towards the right to tighten the saw chain. Make sure Pull the guide bar carefully towards the right to tighten the saw chain. Make sure
the saw chain is placed above the chain catcher (17).the saw chain is placed above the chain catcher (17).
7. Check the drive links of the saw chain (3) are inserted correctly into the drive sprocket
and the nose sprocket at the tip of the guide bar (2), and the chain is well tted
around the bar (Fig. 5).
Before you start
