In more detail . . .
Care and maintenance
Air lter
Inspect the air lter (6b) regularly. Clean or replace it with a new one if necessary.
1. Insert the multi-tool (24) into the slot on the locking lever and push downwards to
pry the top cover (6) open (Fig. 47).
2. Push the red tab forward to loosen the air lter (6b) (Fig. 47).
3. Using the screwdriver (28) separate the air lter (6b) into its two parts and tap them
on a stable surface to remove dust. Use compressed air (max. 3 bar) to remove
stubborn dust.
NOTE: Ensure the rubber seal between the carburettor and the air lter (6b)
is clean and tightly ts in place.

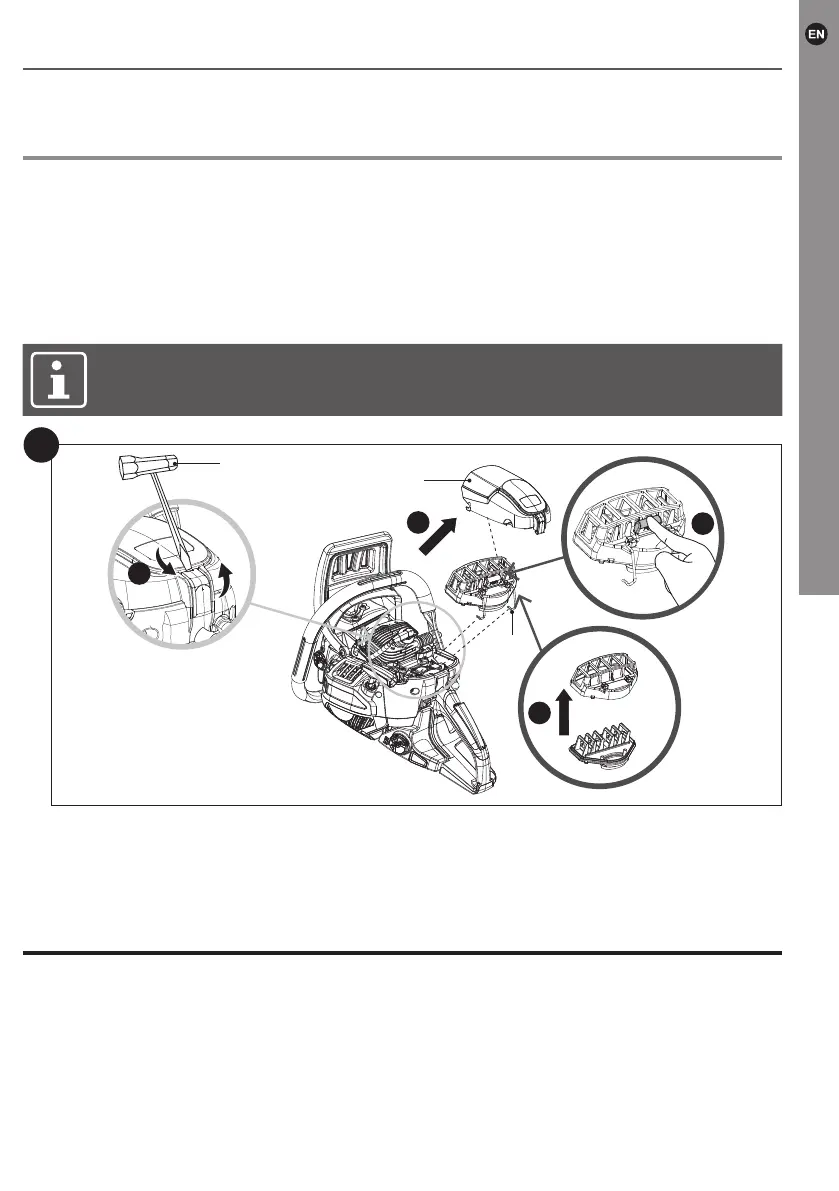

47
6b
1
6
3
3
2
6
4. Reassemble the two parts and ret the air lter (6b). Secure the air lter (6b) by
pulling the red tab backwards until a “click” is audible.
5. Ret the top cover (6) and secure it with the locking lever.
Fuel lterFuel lter
The fuel tank of this product is tted with a lter located at the free end of the fuel pipe. The fuel tank of this product is tted with a lter located at the free end of the fuel pipe.
If it be necessary to clean or replace the fuel lter, contact an authorised service centre If it be necessary to clean or replace the fuel lter, contact an authorised service centre
or a similarly qualied person.or a similarly qualied person.
