Erbauer ERB2504SE - Assembly Instructions; Installing Table Side Extensions

ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
Warning:
or your own safety, never
connect the plug to power source outlet until
all assembly steps are completed and you have
read and understood the safety and operational
instructions.
1
.
Installing table side extension
1) Place protective corrugated cardboard or old
blanket on fl oor to protect the saw table surface.
2) Place the saw up-side down on the protective
material.
3) Place the right table extension next to the saw
table, aligning the mounting holes (1).
4)
Insert the
bolts (4)
through the
mounting holes
and
attach the nuts (
2
)
.
5) Place a straight edge or combination square on
the saw table, across the table extension.
6) Adjust the
nut (
2
)
until the extension is fl ush with
the saw table. Tighten.
7) Place the extension supports (3) to the right
table extension and secure them on the stand with
bolts (5) and nuts (6).
8)
Repeat these procedures for the left extension
table
(See
fi g.
1
)
.
Description
Size
QTY
bolts (4)
M6*1.0-12
4
nuts (
2
)
M6*1.0 T=5
4
bolt (5)
M6*1.0-12
8
nut (6)
M6*1.0 T=6
8
1
2
4
3
5

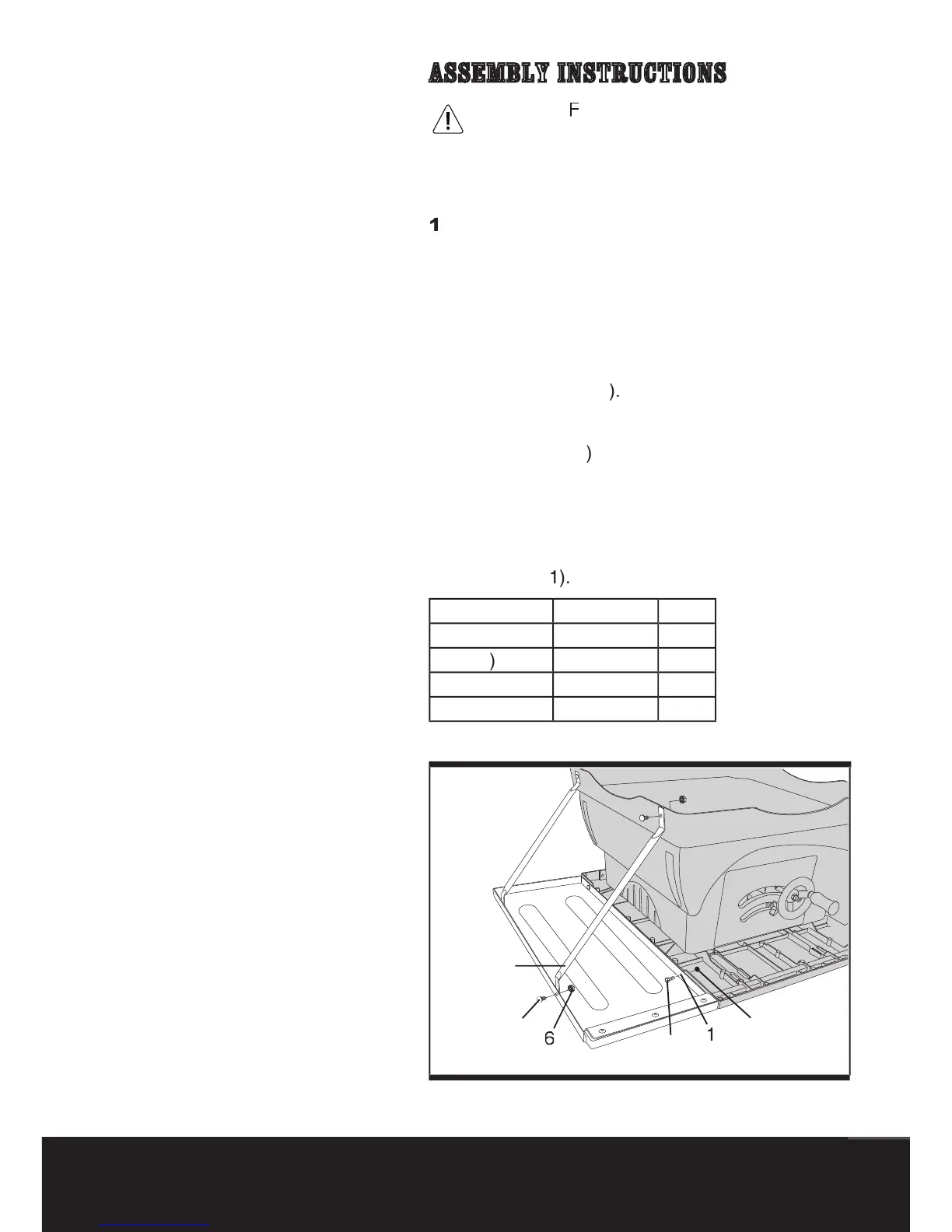

Fig 1
